Basic Info.

Model NO. SJSZ65x132 Customized Customized Condition New Material Stailness Steel Power Supply 380V Three Phase Inverter ABB Control System PLC Control System Operator 2-3person /Shift Advantages High Technique, Rich Expereience, Good Quality After Sale Service Life Long with Professional After Sale Team Machine Color as Request Raw Material PVC Powder Transport Package PE Film and Wooden Package Specification ISO9001 CE Trademark SUKE Origin Qingdao, China HS Code 84775900 Production Capacity 50sets/Year

Product Description

PVC Pipe Production Extrusion Line


MACHINE INTRODUCTION:
This Line is mainly used to produce U-PVC, C-PVC huge calibre pipe for water supply and drainage.
ThePVC Pipe Production Line is composed of double screw extruder, pipe die, vacuum sizing device, multi-pedrail hauling machine, cutting machine and stacker;


MACHINE FEATURES:
Choose conical or parallel double screw extruder according to different demands.
The extruder and haul-off machine adopt the imported AC frequency control device.
Haul-off machine of different specifications, such as two claws, three claws, four claws, six claws etc are designed for different requirements.
It is additionally attched with length measuring apparatus and thickness increasing device.
The unit is of reliable performance and high production efficiency.

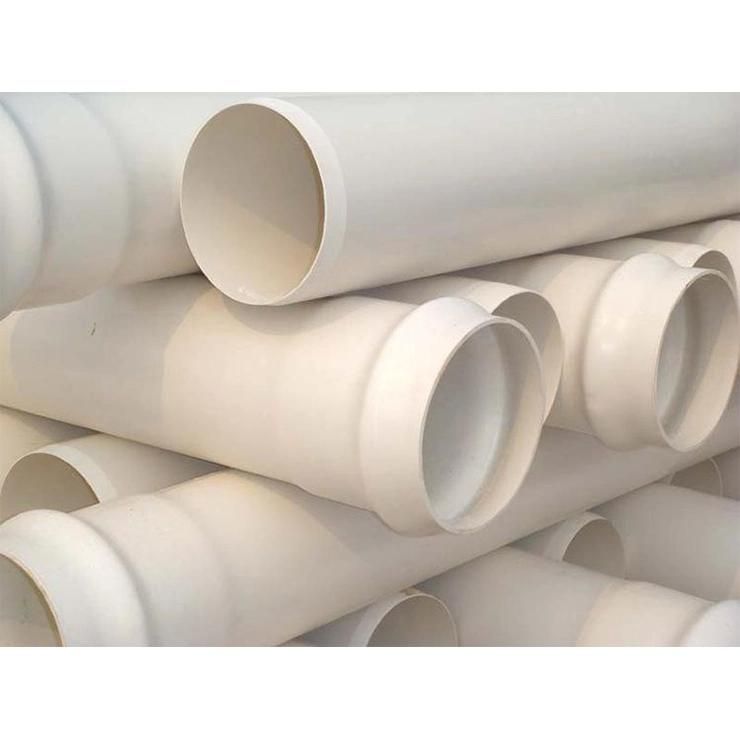

PVC PIPE SPECIFICATION:
Standard series 10mm-630mm.
Residence time on section of fluid divide body distributes even.
Melting body temperature distributes even.
The special mouthpiece design lower the replacing time of the molding tool.



EQUIPMENT LIST:

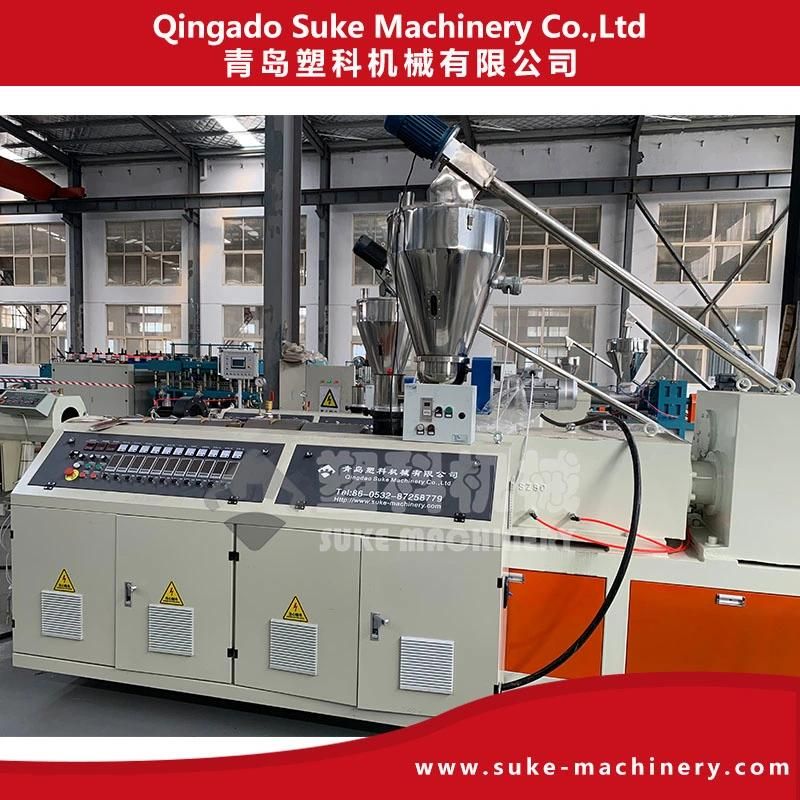

Twin Screw Extruder              1 unit
Mould                           1 set

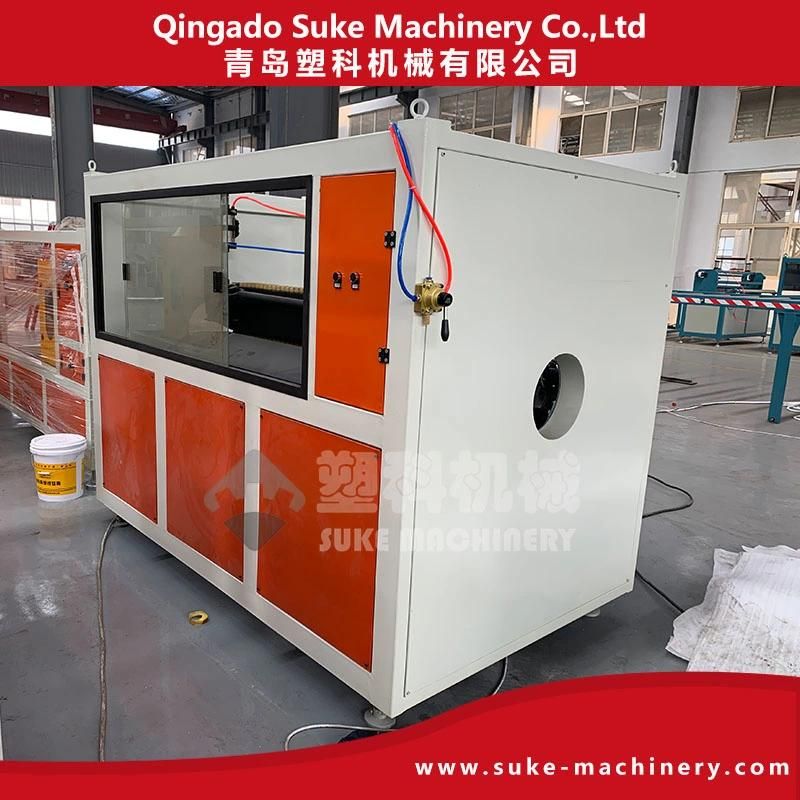

Vacuum Cooling Water Tank       1 unit
Haul-off Machine                 1 unit

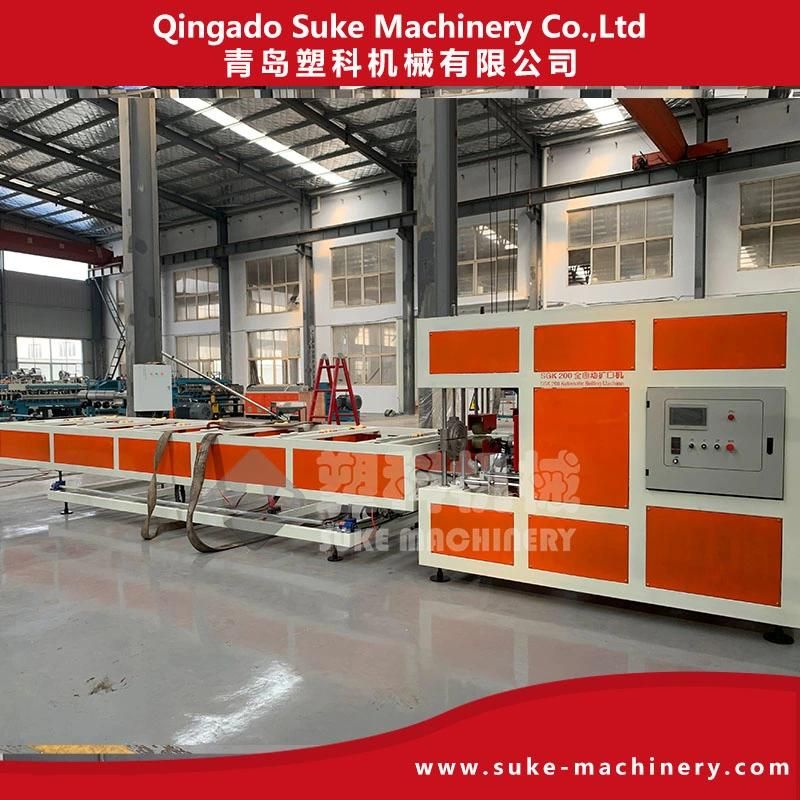

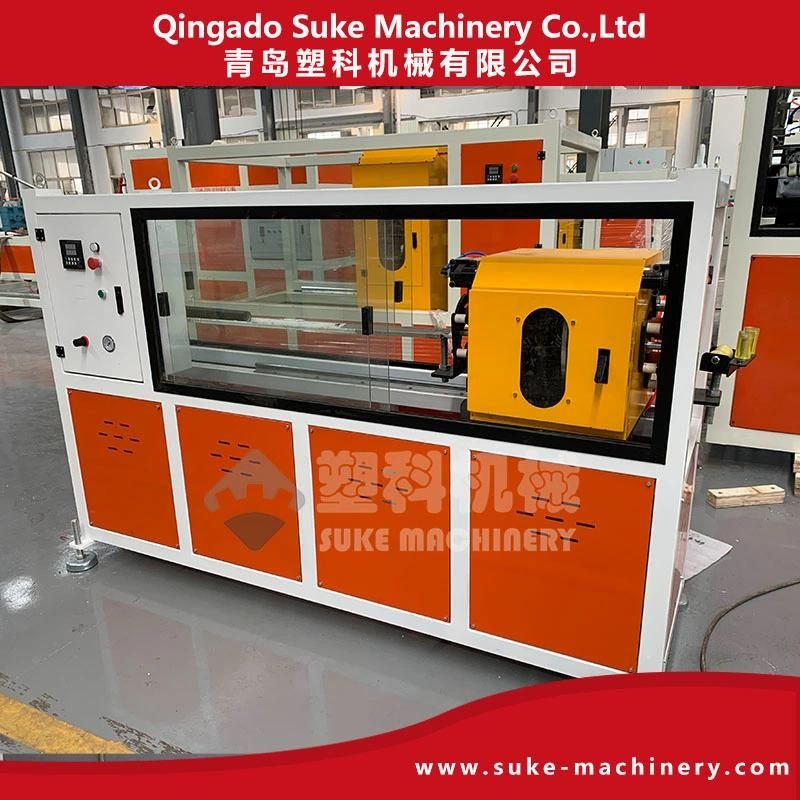

Cutting Machine                  1 unit
Stacker                          1 unit



Optional Auxiliary Machine;
Crusher                         1 unit
Mixer                            1 unit
Pulverizer                        1 unitAir Compressor                   1 unit




MACHINE TYPE:

Main  extruder	SJSZ-51/105	SJSZ-65/132	SJSZ-80/156	SJSZ-92/188
Main  motor  power(KW)	22	37	55	110
Pipe  diameter(mm)	16-  63mm	75-160mm	200-400	400-  630
Hauling  speed(m/min)	0.8-10	0.5-5	0.3-4	0.2-3
Max. Capacity(kg/h)	120	260	400	600
Total  power(KW)	89	95	135	255
