• Model NO.：SJ
• Processing Type：Carbonated Drink Processing Machine
• Processing Type 2：CIP Cleaning System
• Processing Type 3：Carbonated Drink Production Line
• Material：SUS304,316L
• Auxiliary Equipment：Pipe, Valve, Cable Bridge, Pipe Bridge etc
• Transport Package：Wooden Pallet
• Specification：Customize
• Trademark：QC
• Origin：Jiangsu, China
• HS Code：8438800000
• Production Capacity：15 Sets,Month

Type

QHS 1500

QHS - 3000

QHS 4000

QHS - 5000

QHS - 6000

Production Capacity (kg/h)

1000 - 1500

2500 - 3000

2000 - 4000

2500 - 5000

4000 - 6000

Adjust Proportion of Syrup and Water

1:3 1:10

1:3 1:10

1:3 1:10

1:3 1:10

1:3 1:10

Gas Qty

1.5-2.5

2.5

2.5

2.5

2.5

Cool Water Entry Temperature ()

0 - 5

Working Pressure (MPa)

0.05 0.15

Storage Tank Working Pressure (MPa)

0.2 0.5

Power (KW)

1.5

3.7

4.05

5.6

6.2

Dimension (mm)

900 * 700

*2000

1720 * 1140

*2100

1860 * 1300

*2100

1960 * 1400

*2150

2020 * 1500

*2200

Weight (kg)

500

1100

1300

1600

1800

alkali tank, acid tank, hot water tank, pure water tank, water recycle tankCleaning recyclesSingle circuit, double circuits, three circuits, four circuitsHeating methodCoil pipes inside, plate, tubelarAutomatic types and charasticsFully automatic1. Flow rate auto control
2. Temperature auto control
3. Auto compensate cip liquid level
4. Auto compensate the liquid concentrate
5. Cleaning liquid auto transfer
6. Auto alram°Semi-auto1.Temperature auto control
2. Electrical control with manual operate the other matters.Manual control1. Manual operate on the cleaning process

Washing process:take dairy and beverage industry as an example

1. Wash for 3-5 minutes at room temperature or above 60°C hot water; alkali wash for 10-20 minutes, 1%-2% solution, 60°C-80°C; middle wash for 5-10 minutes, clean water below 60°C; Finally wash for 3-5 minutes, clean water.

2. Wash for 3-5 minutes, hot water at room temperature or above 60°C; alkali wash for 5-10 minutes, 1%-2% solution, 60°C-80°C, middle wash for 5-10 minutes, clean water below 60°C, Sterilize for 10-20 minutes with hot water above 90°C.

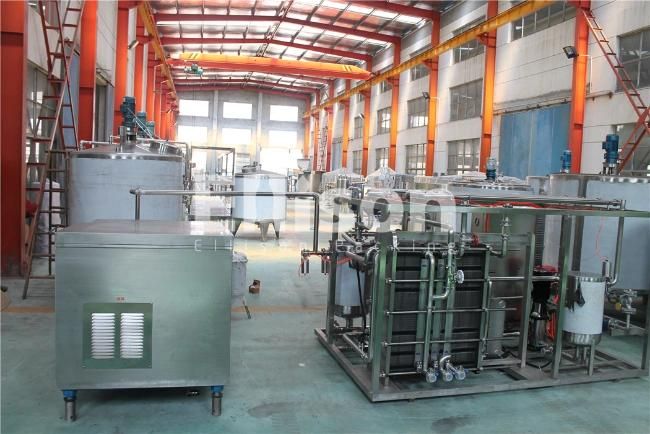

More photos for ref

 Plate UHT sterilizer:
It is mainly used for heating and sterilizing sensitive liquids such as fruit juice, tea and alcohol etc...The sterilization temperature is 85-135ºC, the capacity is 1-15T. The control components are all internationally famous brands. Pipe UHT sterilizer:
It is mainly used for high viscosity, large flesh and acidic drinks, such as fresh juice, jam and coffee etc...., The sterilization temperature is 80-137ºC, the capacity is 1-15T, The control components are all internationally famous brands. High pressure homogenizer:
T means under the triple action of extrusion, strong impact and pressure-loss expansion, make the liquid is more uniformly mixed with each other, so that the liquid taste is more soft, the capacity is 1-10T. Vacuum degasser:
It is mainly composed of degassing chamber, condenser, vacuum pump etc. It is widely used in fresh juice, tea and milk drinks etc. It can remove air (oxygen) from liquid, inhibit browning and oxidation of substances, prevent quality degradation, remove particulate gas, prevent foaming from affecting sterilization, reduce corrosion to the inner wall of container, and play an anti-corrosion role. UHT instantaneous sterilizer:
It is suitable for instantaneous sterilization of liquid materials, such as fruit juice, fresh milk, soy milk and alcohol drink etc. It has such features as high efficiency, energy saving, simple operation and good sterilization effect etc. CIP(Clean-in-place) System:
It is mainly used for cleaning equipment and pipes such as beverage, juice, beer and dairy products etc.
CIP uses centrifugal pump to convoy cleaning liquid into the material pipeline and equipment for full closed cycle cleaning, reducing labor depth and ensuring the quality of beverages.

CIP Technical parameter


Operation temperature	60-138ºC
Cleaning time	12min/time
Sequence of cleaning liquids	Clear water---alkali liquid---acid liquid---clear water
Material name	2% Nitric acid liquid, 2% caustic alkali liquid, 2% clear water
Outline dimensions	3240*1740*1950mm
Steam pressure	0.3-0.7MPa
Motor power	2.2kw
Centrifugal pump flow	10m3/h
Centrifugal pump lift	40m
Equipment weight	1050kg

Machine setup and commissioning

After equipment reached the workshop of customer, place the equipment according to plane layout we offered. We will arrange seasoned technician for equipment installation, debug and test production at the same time make the equipment reach the rated producing capacity of the line. The buyer need to supply the round tickets and accommodation of our engineer, and the salary.

Contact information

Please write to us with below information for getting detailed quotation sheet quickly:

- What is the filling material;
- What is your bottle type and cap type;
- How many bottle types that you have;
- How many bottles per hour you will produce;

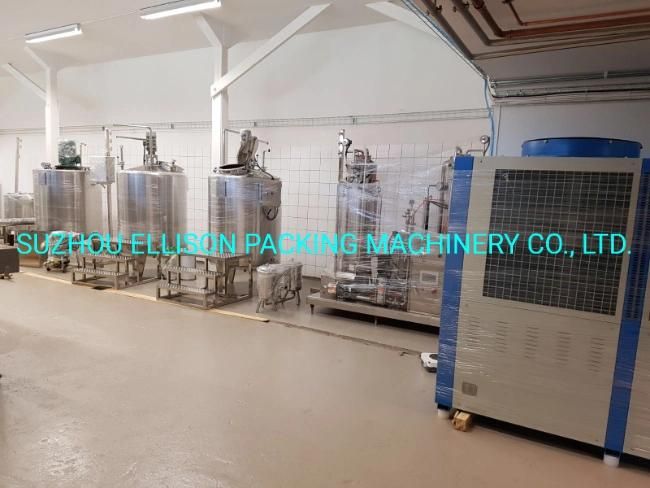

Detailed photos on site
