High Start Torque Hydraulic Motor Replace with Calzoni
Guangzhou Sundy Commercial Co., Ltd.- Certification：ISO9001
- Power Rating：500W
- Speed：Low Speed
- Type：Plunger Type
- Max Pressure：30MPa
- Max Torque：10000nm
Base Info
- Model NO.：HWM6
- Transport Package：in Carton or Plywoodcase
- Trademark：Hyphen
- Origin：Jiangsu, China
- HS Code：8412291000
- Production Capacity：20000PCS,Year
Description
Basic Info.
Model NO. HWM6 Transport Package in Carton or Plywoodcase Trademark Hyphen Origin Jiangsu, China HS Code 8412291000 Production Capacity 20000PCS/YearProduct Description

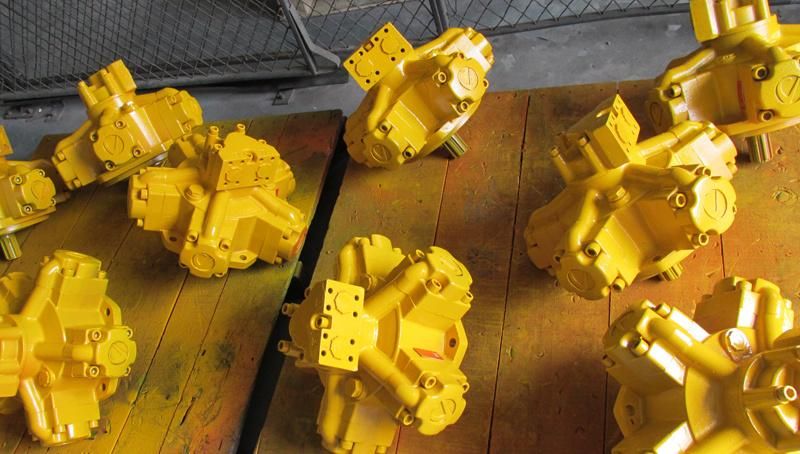

Radial Piston Hydraulic Motor is one kind of low speed high torque radial piston hydraulic motor. It can be widely applied in petroleum industry, chemical industry, mining, shipping, constructing machinery, especially for plastics injection molding machinery, hydraulic winch, all kinds of rotational and the track and wheel travel machinery etc. For example: Crawler tractor, caterpillar excavator etc.| Technical Parameters | 16-1400 | 16-1600 | 16-1800 | 16-2000 | 16-2400 | 16-3000 |
| Theoretical Displacement(ml/r) | 1413 | 1648 | 1815 | 2035 | 2267 | 3041 |
| Rated pressure(MPa) | 20 | 20 | 18 | 16 | 16 | 16 |
| Max Pressure(MPa) | 30 | 30 | 28 | 25 | 20 | 20 |
| Rated Torque(N.M) | 4500 | 5248 | 5184 | 5168 | 5763 | 7326 |
| Unit Theoretical Torque(N.m/MPa) | 225 | 262 | 288 | 323 | 360 | 483 |
| Max Power(Kw) | 95 | 95 | 95 | 95 | 95 | 95 |
| Max Rotation Speed(r/min) | 300 | 250 | 220 | 200 | 160 | 120 |
| Weight(kg) | 170 | 170 | 170 | 170 | 170 | 170 |
