• Model NO.：HDFM20
• Condition：New
• Customized：Customized
• Color：Customer Demand
• Noise：Less Than 85 dB
• Pipe：Stainless Steel in Flour Milling Section
• Production：100 Set Per Year
• Pack：Suitable for Sea Transportation
• Final Product：Maize Meal, Maize Flour, Maize Samp
• Factory：Maize Flour Mill Machine
• Branch Office：Zambia, Kenya, Ethiopia
• Control：PLC Touch Screen for Flour Milling Machine
• Capacity：5t-500t,D
• Transport Package：Plastic Film,Suitable for Sea Transportation
• Specification：20T,H
• Trademark：Hongdefa
• Origin：Hebei, China
• HS Code：84378000
• Production Capacity：10SET,MONTH

Basic Info.

Model NO. HDFM20 Condition New Customized Customized Color Customer Demand Noise Less Than 85 dB Pipe Stainless Steel in Flour Milling Section Production 100 Set Per Year Pack Suitable for Sea Transportation Final Product Maize Meal, Maize Flour, Maize Samp Factory Maize Flour Mill Machine Branch Office Zambia, Kenya, Ethiopia Control PLC Touch Screen for Flour Milling Machine Capacity 5t-500t/D Transport Package Plastic Film,Suitable for Sea Transportation Specification 20T/H Trademark Hongdefa Origin Hebei, China HS Code 84378000 Production Capacity 10SET/MONTH

Product Description

Maize/Corn Flour and Grits Milling Machine
Maize/Corn Flour and Grits Milling Machine, we have the same line running in Kenya,Zambia,Uganda now.
The Maize Flour and Grits Milling Machine can produce super and special white maize meal,maize grits,maize rice,bran. We design the cleaning degerminating milling packing system ,it is a complete maize milling complete line.

China and South Africa Maize Mill Technology
China and Australia Wheat Flour Mill  technology
Anstralia office;Brazil agent;South Africa office,Zambia office,Rd Congo office


20T/24H Maize/Corn Flour and Grits Milling Machine with high quliaty and low price for Kenya supper meal.

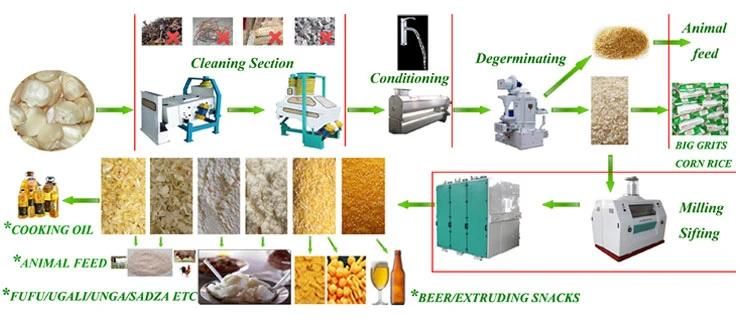

 Techniques flow Grits: Raw maize →Cleaning →Moisture adjust →Peel and break →Embryo Select →Milling →Finished product

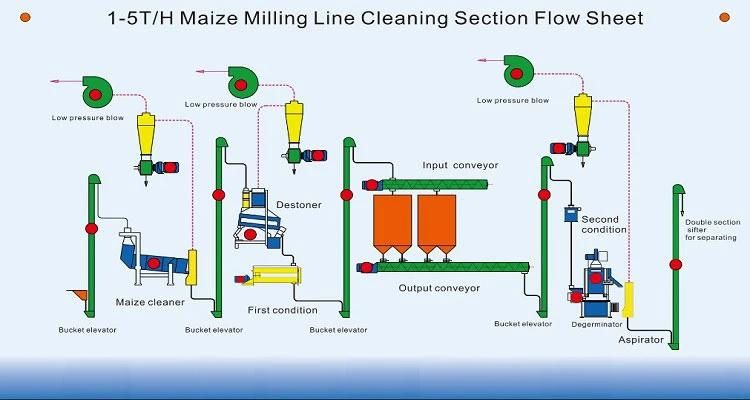

Cleaning flow: Raw maize →High efficiency vibrate sifter →Magnetic separator →Horizontal Scourer →Gravity classification stoner→ Clean maize



Model	100T/24H Maize/Corn Flour and Grits Milling Machine
Production capacity (T/24h)	100-120Tons/24h of corn/maize
Main machines and processing techniques	High efficiency vibration sifter, Destoner,Washer stoner, Damper, Peeling machine,  Embryo separator, Polisher, Grading machine, Roller mill,Multi-section plansifter, Super-mico-particle pulverizer. Produce flour and grits
Products and extraction rate (%)	Corn flour: 40-50% Corn grits: 35-40% Corn bran, coarser fodder: 10-12% Embryo: 8-10% It can produce fine corn flour (all through 100M sifter)
Products quality	Sand content: ≤0.02% Magnetic metal content: ≤0.003% Moisture content: ≤13.5-14.5% (based on the raw corn according with national standard for  raw grain storage) Fat content: ≤2.5%
Power required (kW)	385Kw
Size of workshop: (L×W×H, m)	3-storey building or single storey workshop (25×8×10)

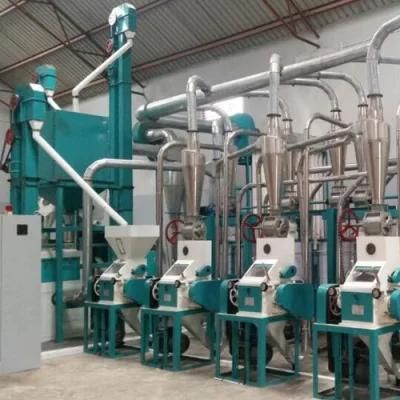

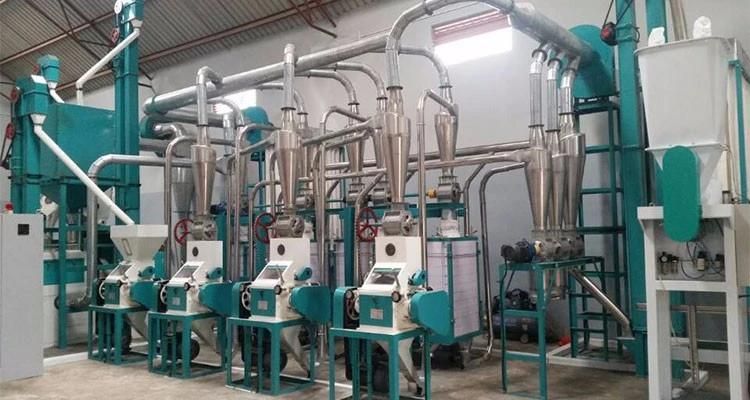

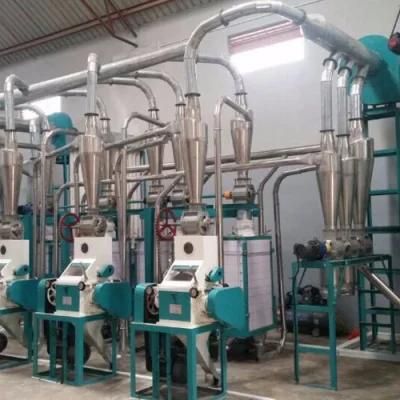

 5 T/H maize flour grits milling machine for Africa

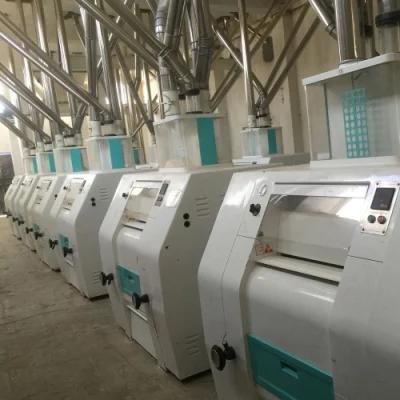

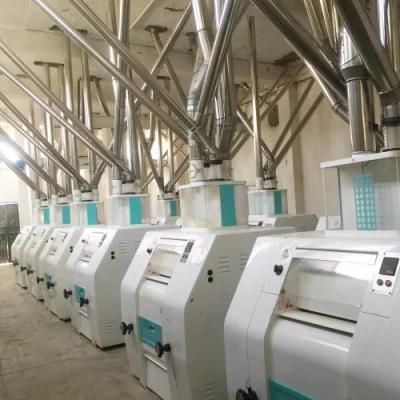

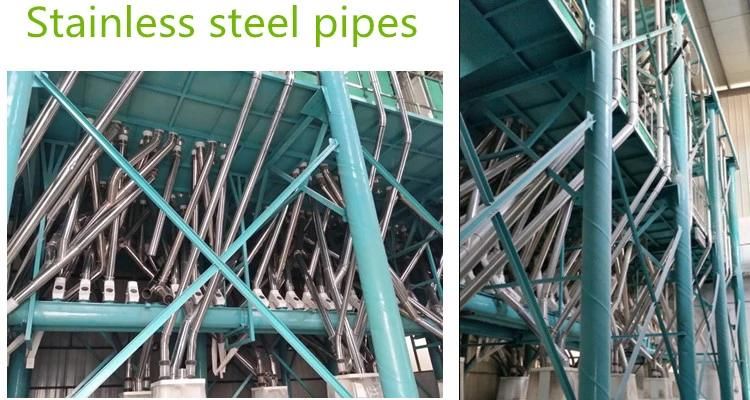

Advance roller stands.Screw air compressor .Stainless steel pipe where contact with the material.
We have different type for different market and different client's needs.
All design is customized for you.


New design for PLC controlling system in the maize milling line!

Processing:

Complete set of maize flour machine can be divided into four parts: cleaning part, milling part, packing part:

1. Cleaning part

to clean out the middle and small impurity from wheat. e.g., dust, stone, magnetic material,  was bitten by insect and so on.Includes beating, screening, destoner, magnetic separator  and dampening. This section is to prepare for milling part and to protect the machinery as well.

2. Milling part

The second step, to mill the grain and separate the flour, bran and other by-product:

(1) Mill: mill the grain to break the integrity by the roller moving

(2) Sifter: to separate the flour, bran and other by-product, also separate large size and small size to ensure flour quality.

3. Packing part

The third step, the packing machine can be manual or automatic weighting and packing.

4. PLC controlling system

 To controlling the whole set of machinery to work well and showing the process of working.

Contact detail information :
Mr. Will
Shijiazhuang HONGDEFA machinery Co.ltd
NO.388 jianhua north street,shijiazhuang,China
website:sjzafricachina.en.made-in-china.com
Mob:0086-133 6385 0096

Maize/Corn Flour and Grits Milling Machine,we have the same line running in Kenya,Zambia,Uganda now.
The Maize/Corn Flour and Grits Milling Machine can produce super and special white maize meal,maize grits,maize rice,bran.
