Basic Info.

Model NO. CRD -36 Rated Rpm 280r/Min Drill Precision Hole Position Tolerances≤1mm Drilling Time Less Than 40s Material High Speed Steel Use Metal Drilling Keywords Drilling Machine Rail Weight Per Meter 43-75kgs Machine Weight 20kg Used for Rail Transport Package Carton Box, Plastic Bagsor as Your Payment Specification CE, SGS Trademark China Coal Origin China HS Code 8430610000 Production Capacity 1000 Sets Per Month

Product Description

Product Introduction Of 1.20kw Crd -36 Internal Combustion Rail Drilling Machine

1.This machine is used for a wide range of online line road and building construction and can be used in road maintenance work . The machine is light , small volume, portable machine. Solid, accurate installation, removed rapidly, can effectively guarantee the driving safety.
2.Hollow, high speed steel drill bit, drilling time is short, high precision, long service life.
3.The machine adopts the spindle cooling structure, equipped with high-pressure cooling pot.

Main Parameter  Of 1.20kw Crd -36 Internal Combustion Rail Drilling Machine


Petrol engine power	1.20KW
Borehole diameter	14-36mm(hollow drilling bit and twist bit (diameter≤13.5)
Rated rpm	280r/min
Drill precision	Hole position tolerances≤1mm
Drilling time	≤40s
Machine weight(including handle)	20kg
Rail weight per meter	43-75kgs

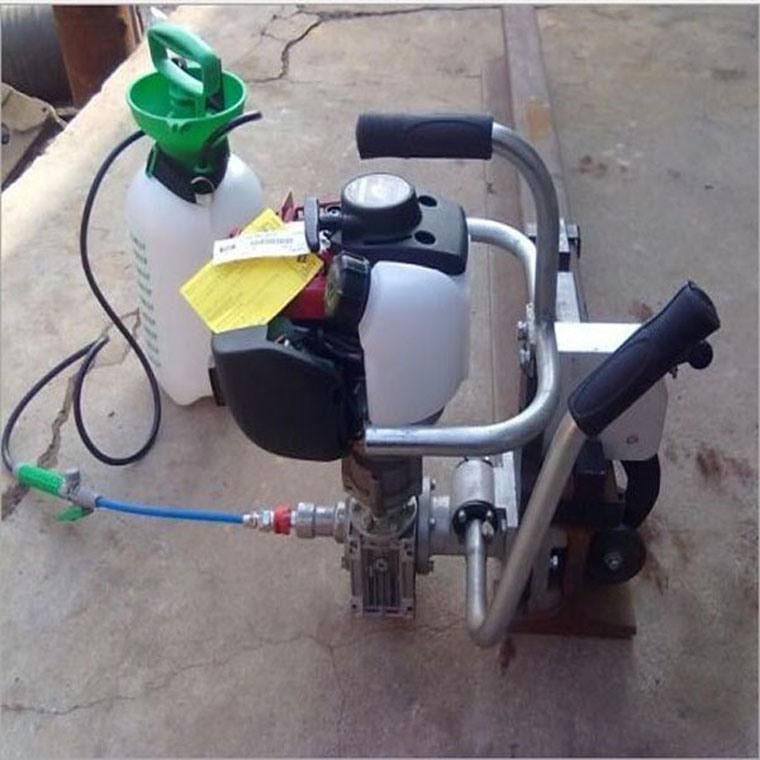

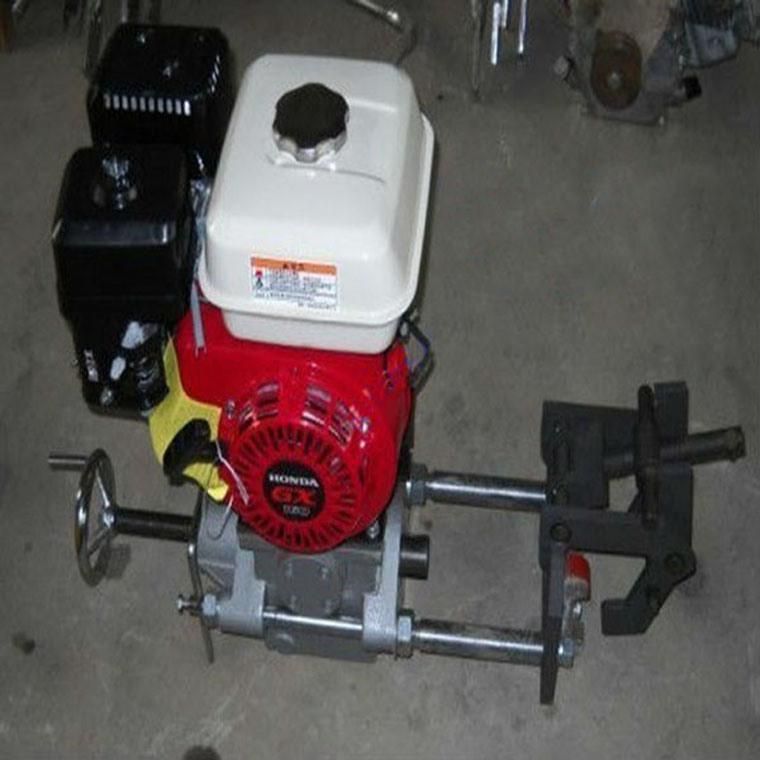

Photos Of 1.20kw Crd -36 Internal Combustion Rail Drilling Machine
