SpecificationsMaterial  PE, PP, PVC, PA...Max container capacityL5Number of dieSet1, 2, 3, 4Output(dry cycle)PC/hr800X2Machine Dimension(LxWxH)M3.4X2.2X2.5Total weightT5.0Clamping UnitClamping forceKN68Platen opening strokemm150-500Platen sizemm338X380Max mould size(WxH)mm338X350Mould thicknessmm155-300PowerMax driveKW33Total powerKW41Fan power for screwKW0.25Air pressureMPa0.7Air consumptionM3/min0.9Average energy consumptionKW23Extruder unitScrew diametermm70Screw L/D ratioL/D24Melting capacityKg/hr80Number of heating zoneZone3Extruder heating powerKW14.2Extruder driving powerKW22DieNumber of heating zoneZone3Power of die heatingKW5.7Max die-pin diametermm135Center distance of double diemm160Center distance of tri-diemm110Center distance of tetra-diemm85


Delivery Time:
- No later than 40 days after receipt of the deposit

Training:
- We provide training service for two or three operating men for free (but the cost for trainer's board and lodging is not included).

Installation:
- The supplier will send one specialist to test run the machine until it is running in normal state.

Guarantee:
- Our guarantee is valid for a period of 12 months. If the malfunction caused of the machine's self quality, we will troubleshoot it for free.

Auxiliary Equipments:
- Auxiliary equipments for production line are available and optional, please kindly ask for quotation.

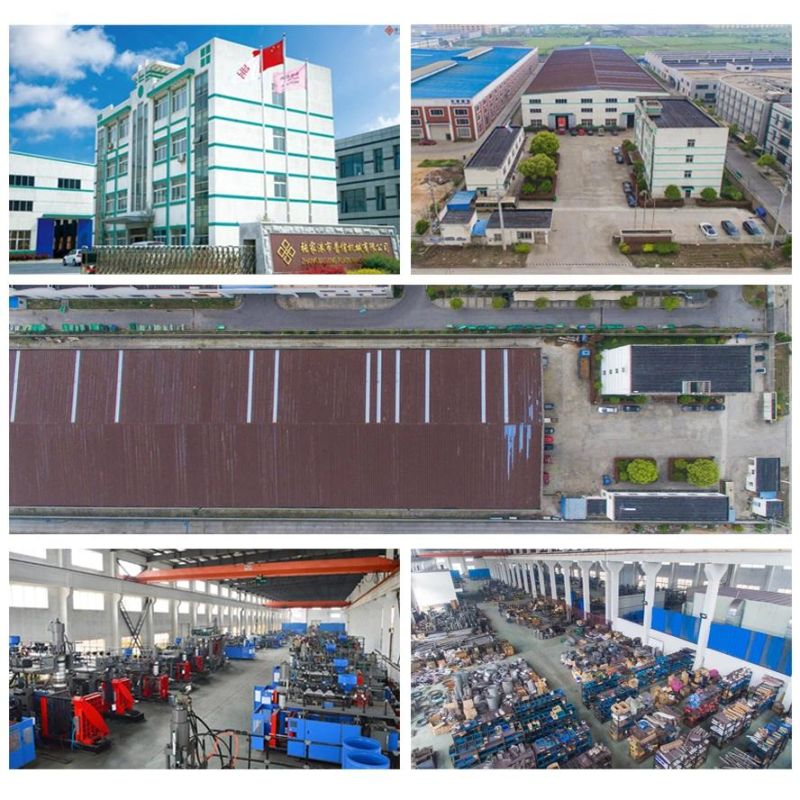

OUR FACTORY:
