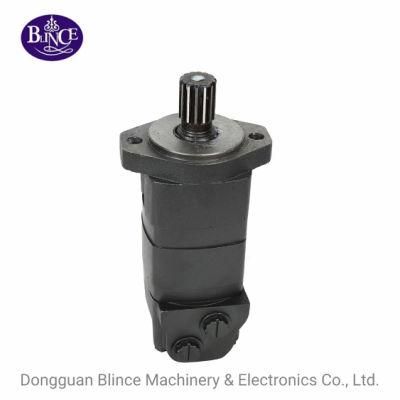

Omm/Bmm High Speed Mini Orbital Hydraulic Motor
Guangzhou Cospack Packaging Technology Co., Ltd.- Certification：GS, RoHS, ISO9001 Ce
- Excitation Mode：Compound
- Power Rating：2500W
- Casing Protection：Protection Type
- Number of Poles：6
- Speed：High Speed
Base Info
- Model NO.：OMM 20cc hydrualic motors
- Type：Hydraulic Motor
- Application：Plastic Machine, Agriculture Machine
- Warranty：One Year
- Hydraulic Power Units：Vane Pump
- Usage：Hydraulic Oil
- Hydraulic Actuator：Hydraulic Motor
- Motor Shafts：Straight, Splined and Tapered
- Hydraulic Motor：Vane Hydraulic Motor
- Processing：Forging & Cutting &Phosphating
- Motor Flange Shape：Square and Rhombus Flange
- Motor Material：Cast Iron
- Transport Package：Industrail Plastic Bag+Carton
- Specification：CE, ISO9001
- Trademark：blince
- Origin：Guangdong
- HS Code：8412291000
- Production Capacity：6000
Description
TypeOMM
8 OMM
12.5 OMM
20 OMM
32 OMM
40 OMM
50 Geometric displacement 8.2 12.9 19.9 31.6 39.8 50.3 Max.speed (rpm) cont. 1950 1550 1000 630 500 400 int. 2450 1940 1250 800 630 500 Max.torque(N.m) cont. 11 16 25 40 45 46 int. 15 23 35 57 70 88 Max.output(KW) cont. 1.8 2.4 2.4 2.4 2.2 1.8 Int. 2.6 3.2 3.2 3.2 3.2 3.2 Max.pressure
Drop (Mpa)
cont. 10 10 10 10 9 7 int. 14 14 14 14 14 14 Max.flow(L/min) cont. 16 20 20 20 20 20 int. 20 25 25 25 25 25 Weight(kg) 1.9 2 2.1 2.2 2.3 2.4
