• Model NO.：300 500
• Material：SS304
• Tank Thickness：Inner 3mm Outside :2mm
• Temperature Control：Automatic
• Heating：Gas Steam Generator
• Heat Insulation：Rock Wool Th:80-100mm
• Inner Surface：Pickled and Passivation
• Welding：Argon Arc TIG 100%
• Function：Boiling Wort
• Transport Package：Steel Frame or Wooden Case
• Specification：as customer request
• Trademark：Zunhuang
• Origin：China
• Production Capacity：500piece

Basic Info.

Model NO. 300 500 Material SS304 Tank Thickness Inner 3mm Outside :2mm Temperature Control Automatic Heating Gas Steam Generator Heat Insulation Rock Wool Th:80-100mm Inner Surface Pickled and Passivation Welding Argon Arc TIG 100% Function Boiling Wort Transport Package Steel Frame or Wooden Case Specification as customer request Trademark Zunhuang Origin China Production Capacity 500piece

Product Description

1000L Brewery Specifications


Item	Capacity
Malt miller	300-500KG/H

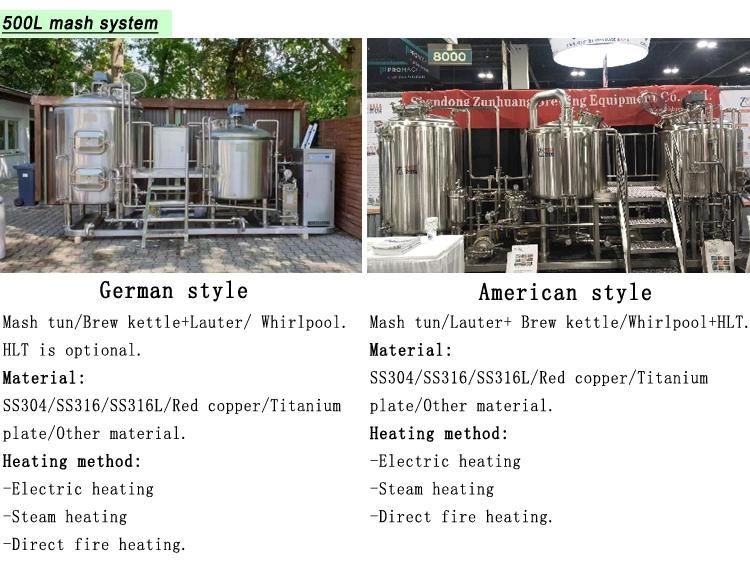

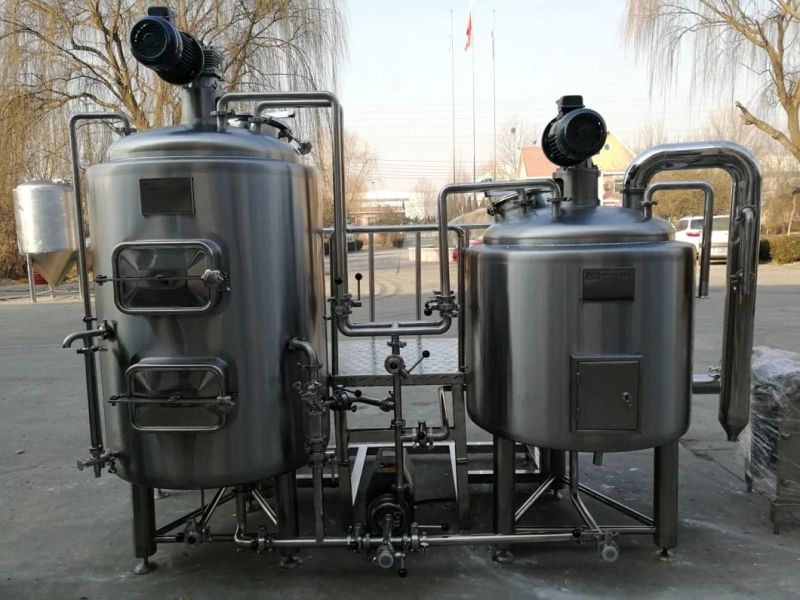

Mashing system	500L 3-vessel brewhouse (mash& boil kettle/ lauter tun /&whirlpool tank) -Hot water tank Heating method can be steam or direct fire.
Fermentation system	500L/1000L
Cooling system	1000L glycol water tank + chiller
Control system	PID / PLC
CIP cleaning system	Disinfection tank + alkali tank
Necessary parts	Fitting

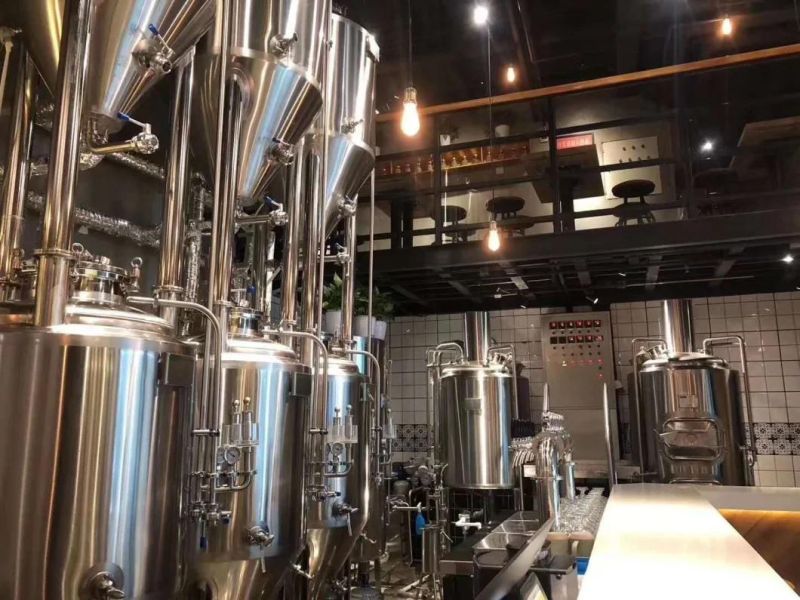

Zunhuang craft beer equipment is consisted of Malt milling system, Mash system, Fermentation system, Refrigeration system, Control system and CIP cleaning system. The tank of the system all adopts Red copper and S.S 304,and the system also have high automatic control capacity.
Simple operation ,PLC automatic control system ,PLC semi-automatic control system.
Equipments characteristics: Small investment, quick effectiveness, high quality, lower prices, the investment repayment is fast, the service life of equipment is long, easy operation, lower cost. Strong technical force.
At the same time if you have requirements, we could design and produce the products you need!

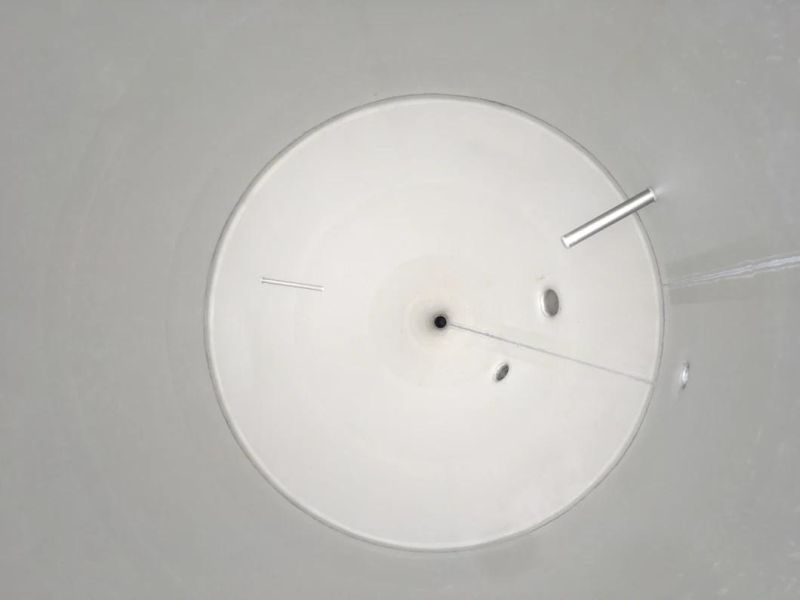

Inner surface pickled and passivation:

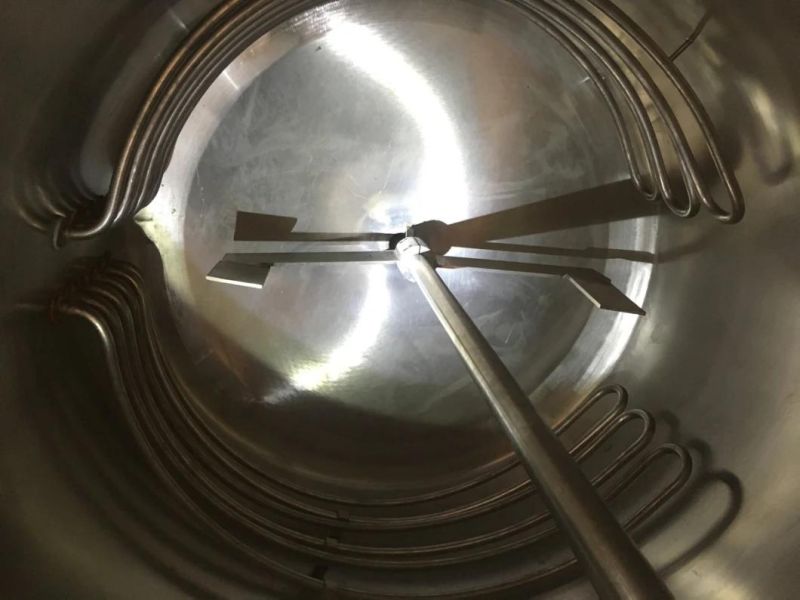

Mash tun inside with agitator:

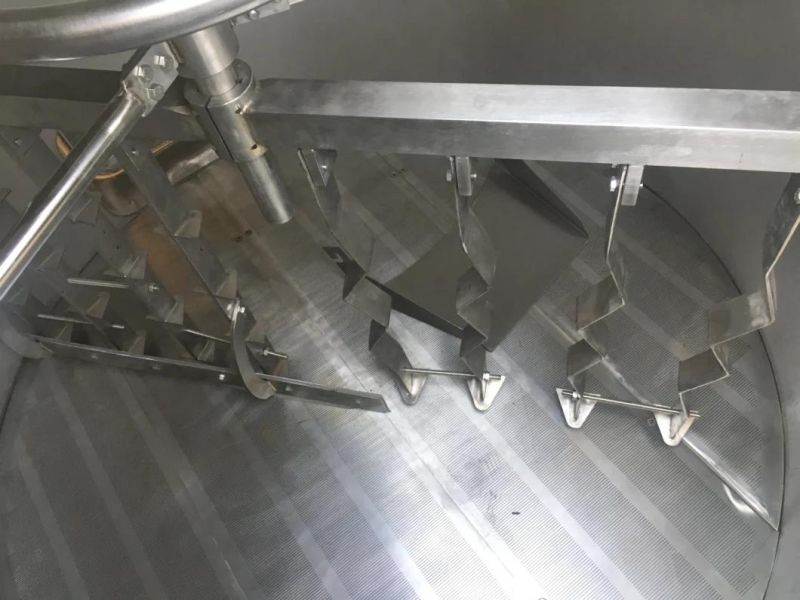

Lauter tun inside with raker:

Fermentation tank details:

Fermenter cooling method is cooling dribbling with standard parameters, layout and control mode in domestic. Zunhuang companies design and manufacture cooling dribbling according to 0.4-0.5 meters per cubic meter cooling area. And the fermentation tank adopt two-stage cooling refrigerant control mode at the end of the cone and the tank level 10--15cm down. So such design and cooling method to control the flow of the cooling liquid state in fermentation tank by the size of the two-stage cooling refrigerant flow. It will improve heat transfer efficiency and cooling rate, faster cooling, and reduce cooling costs and high economic efficiency equipment commercial operation.

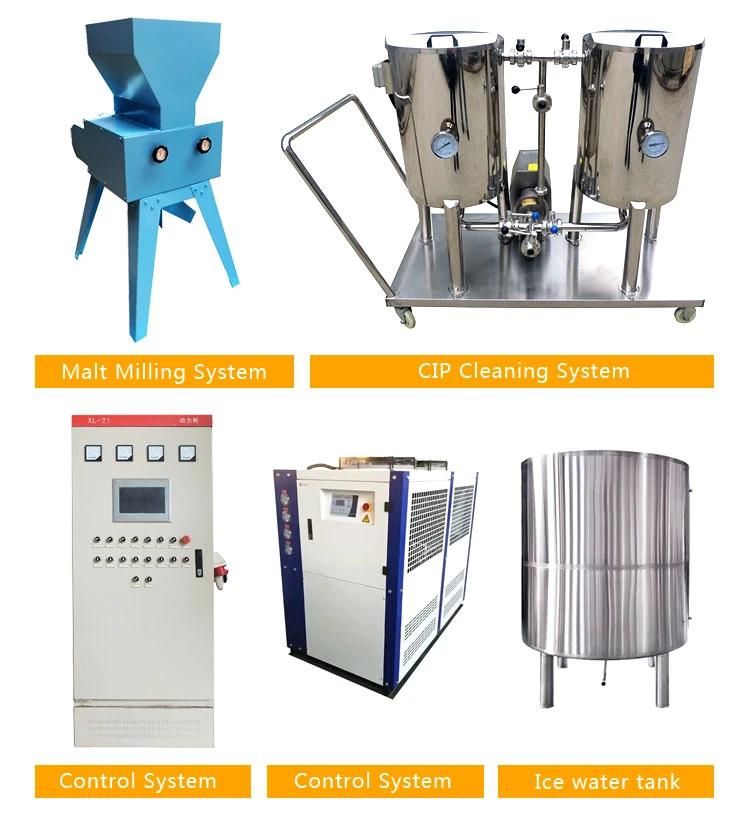

Other Auxiliary Equipment:

1.Malt crusher

2.CIP Cleaning system

3.Control cabinet

4.Cooling system includes glycol tank and chiller unit
