• Model NO.：KQ-100L to KQ10000L
• Emusifying：Emulsifier (2900rpm)
• Agitator：36rpm ,45rpm
• Certificate：CE
• Usage：Shampoo, Perfume,Liquid Soap
• Voltage /Hz/Phase：Follow Your Request
• Certification：ISO9001: 2000
• Delivery：10 Days
• Cleaning：CIP Spray Ball
• Motor Brand：Siemens ,ABB ,China Brand
• Sight Glass：Yes
• Temperature：Sensor
• Transport Package：Standard Export Wooden Box
• Specification：ISO
• Trademark：KQ
• Origin：Shanghai, China
• HS Code：8479820090
• Production Capacity：2000set ,Year

Basic Info.

Model NO. KQ-100L to KQ10000L Emusifying Emulsifier (2900rpm) Agitator 36rpm ,45rpm Certificate CE Usage Shampoo, Perfume,Liquid Soap Voltage /Hz/Phase Follow Your Request Certification ISO9001: 2000 Delivery 10 Days Cleaning CIP Spray Ball Motor Brand Siemens /ABB /China Brand Sight Glass Yes Temperature Sensor Transport Package Standard Export Wooden Box Specification ISO Trademark KQ Origin Shanghai, China HS Code 8479820090 Production Capacity 2000set /Year

Product Description

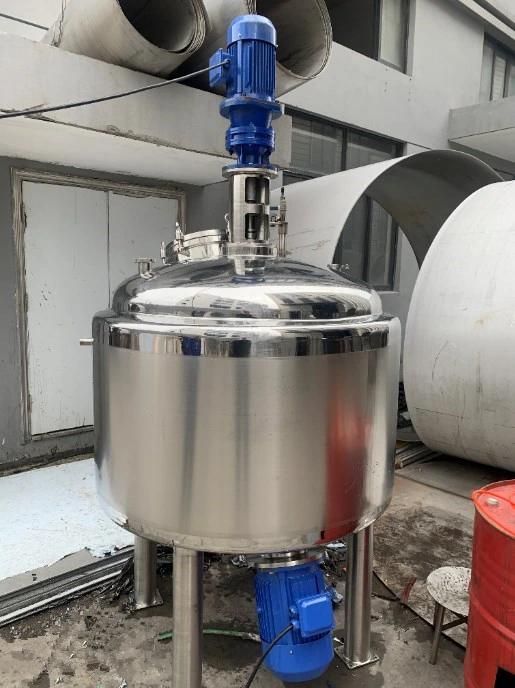

Homogenizer Tank Homogeniser Tank Emulsifying Tank Detergent Tank Fermentation Tank




Newest electric double jacketed heating cable for tank
Heating by Electric(380V, 50Hz)Customized electricity
Techinical Parameters

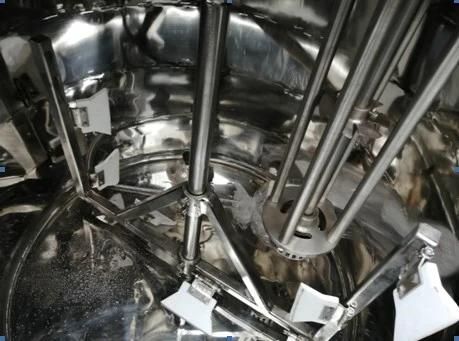

Cooling and heating tank with scraper agitator or with paddle mixer

Effective  Volumn(L)	Dimension of  Tank(mm*mm)	Total Height (mm)	Diamension  of inlet&outlet (mm)	Heat   preservation  layer(mm)
500	840*1000	2250	38	60
600	920*1000	2300	38	60
700	990*1000	2300	38	60
800	950*1220	2500	38	60
900	1010*1220	2500	38	60
1000	1060*1220	2550	51	60
1500	1160*1500	2850	51	60
2000	1340*1500	2900	51	60
3000	1410*2000	3400	51	60
4000	1620*2000	3450	51	60
5000	1810*2000	3500	51	60
6000	1980*2000	3550	51	60
7000	1930*2440	4000	51	60

Type	KQ-100	KQ- 200	KQ- 300	KQ- 500	KQ- 1000	KQ- 2000
Layers	single /double	single/double	single/double	single/double	single /double	single  /double
Material	SS304	SS304	SS304	SS304	SS304	SS304
Voltage	380V	380V	380V	380V	380V	380V
Emulsify power	2.2KW	2.2KW	4KW	7.5KW	7.5KW/11KW	15KW
R.P.M	2900r/min	2900r/min	2900r/min	2900r/min	2900r/min	2900r/min

* Type: With Jacket and insulation
* Internal shell thickness: 3 mm
* Jacket thickness: 3 mm
* Outer shell thickness: 1.5 mm


* Appearance: Ellipsoidal head top and down


* Accessories:
(1)Lid able to open on the top
(2) Charging/discharging hole at the bottom,
(3) Heat transfer oils (water) Inlet/outlet,
(4) Temperature probe,
(5) CIP cleaning ball,

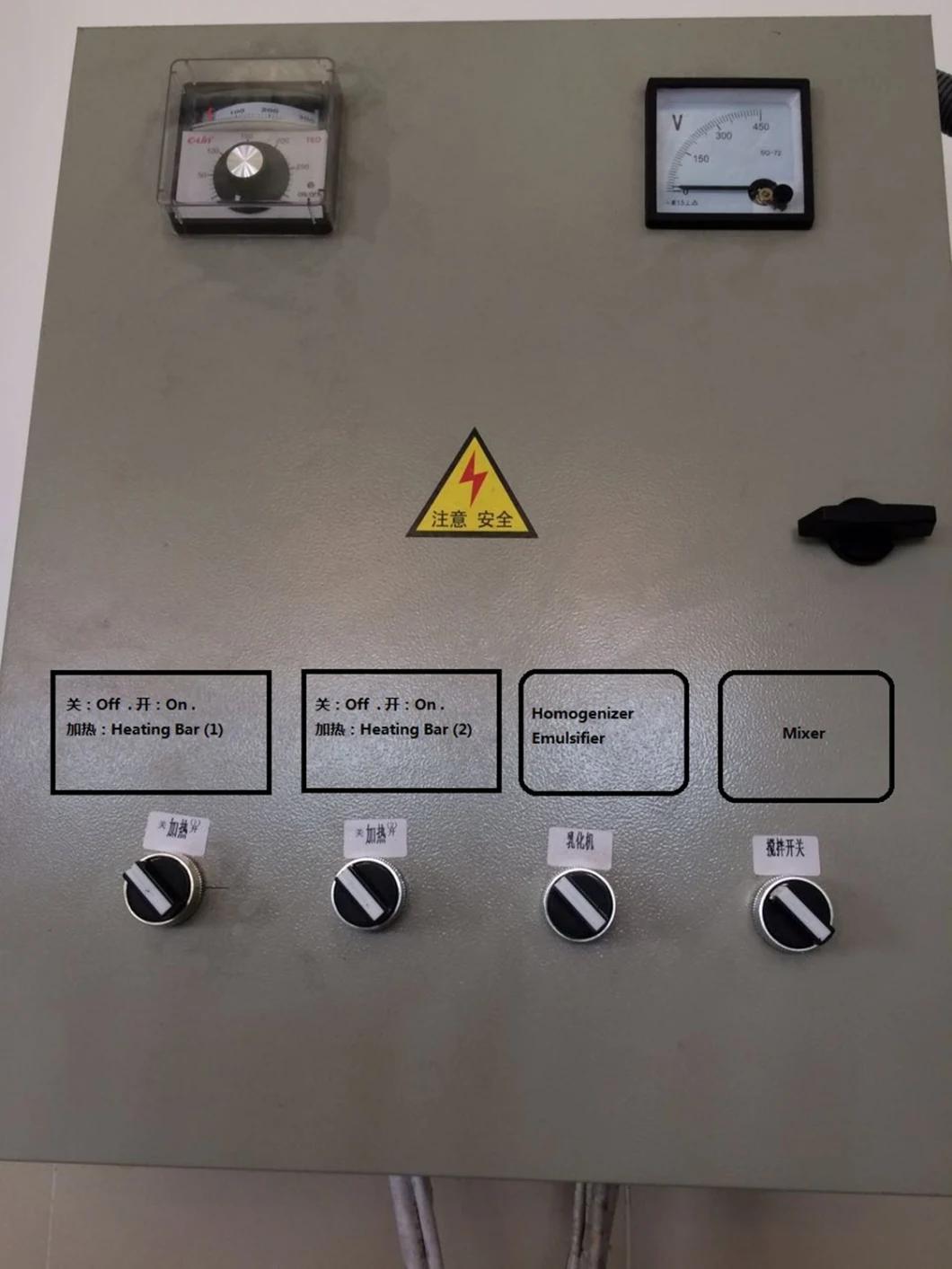

(6) Heating tube, (7) Electric cabinet, (8) Reduction gears, (9) Rack & blender etc.

Homogenizer Tank Homogeniser Tank Emulsifying Tank Detergent Tank Fermentation Tank .
