• Model NO.：CWDA
• Segment Height：10mm
• Transport Package：Carton, Case, Pallet
• Specification：127x10x450mm
• Trademark：COREDIAM
• Origin：China
• HS Code：82071910
• Production Capacity：2000 Pieces Per Month
• Package size per unit product：11.00cm * 11.00cm * 40.00cm
• Gross weight per unit product：1.000kg

Basic Info.

Model NO. CWDA Segment Height 10mm Transport Package Carton, Case, Pallet Specification 127x10x450mm Trademark COREDIAM Origin China HS Code 82071910 Production Capacity 2000 Pieces Per Month

Packaging & Delivery

Package size per unit product 11.00cm * 11.00cm * 40.00cm Gross weight per unit product 1.000kg

Product Description

1. introduction

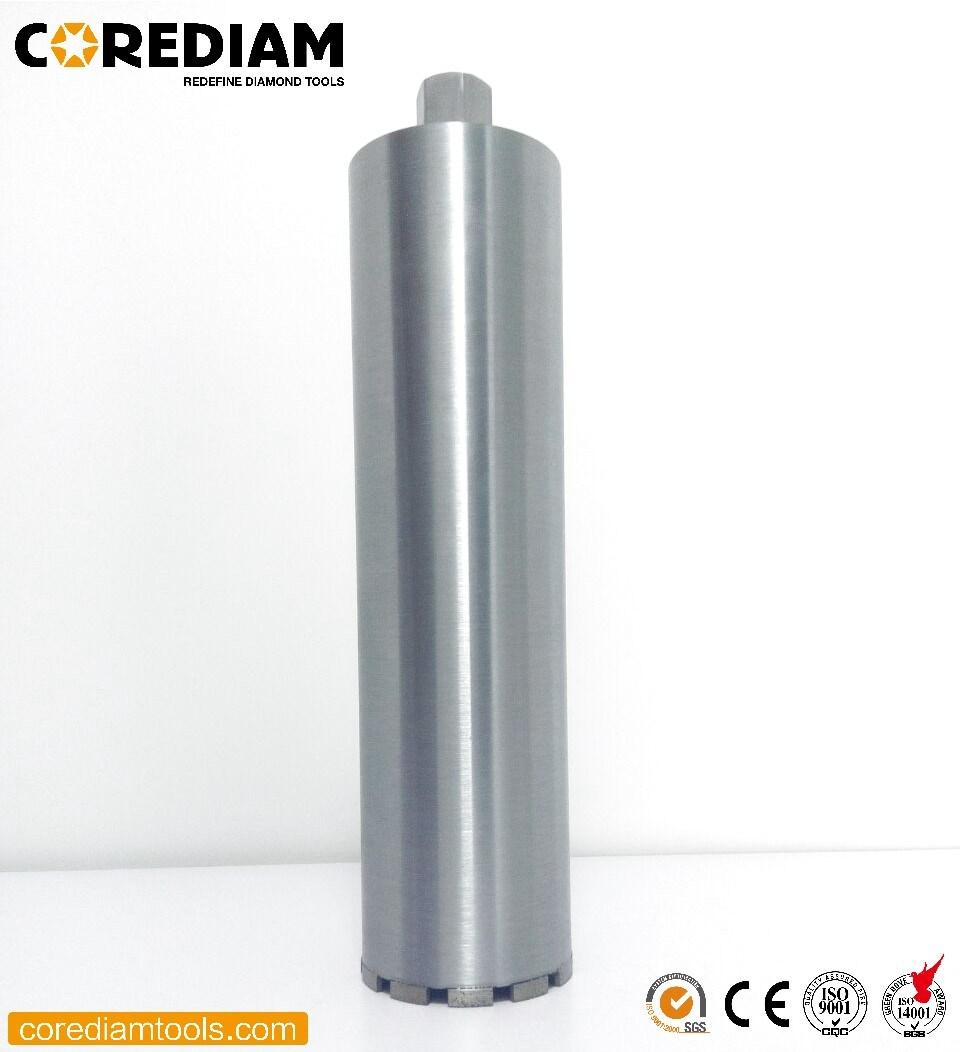

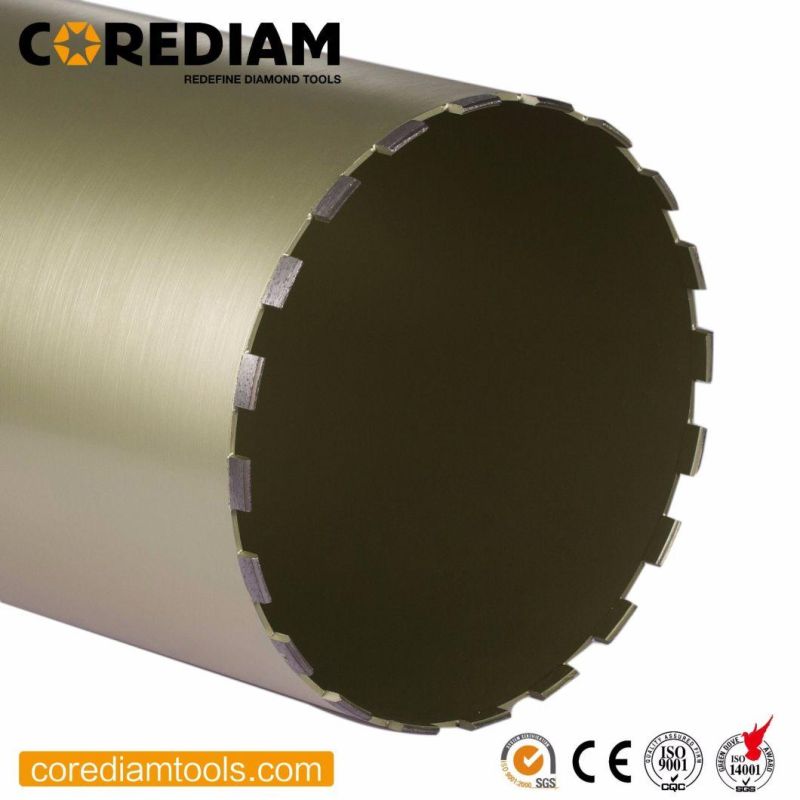

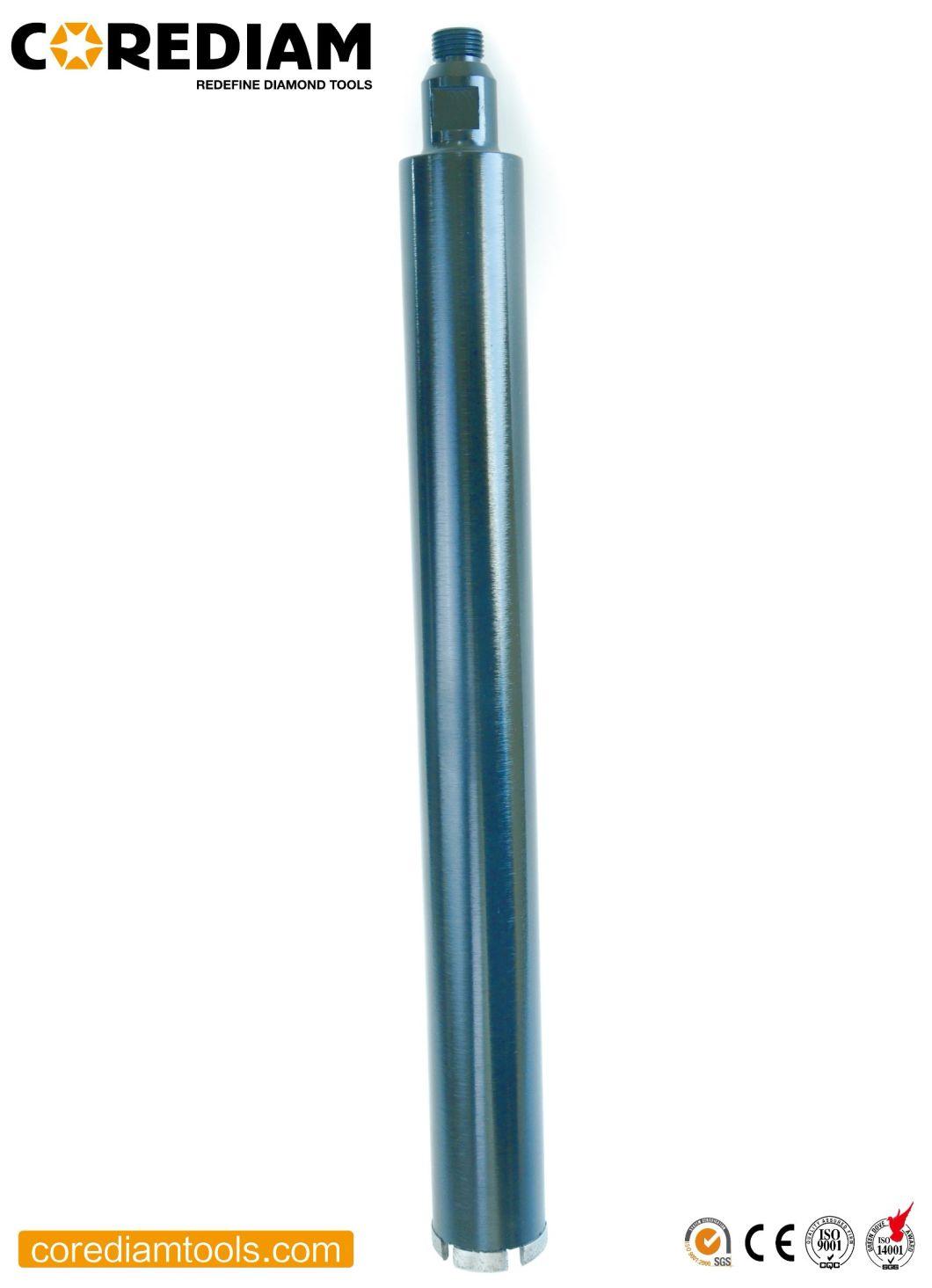

This type of core drill is the laser welded, it can be widely used in drilling concrete, reinforced concrete, masonry with superior efficiency. The diameter is 127mm. The segment sharp is turbo wave segments. It can be installed on Standard Core Driller, Hand-Held Drillers. The quality level is premium.



2. Features

Manufacturer technology: laser welded.
Suitable: wet drilling concrete, reinforced concrete, masonry with superior efficiency.
Advantage: very good sharpness achieve fast drilling, especially very fast when cutting steels meanwhile, wet core drill have a reasonable lifespan.



3.Specification

Item No.	Diameter	Segment  Height	Arbor	Effective Length
CWDA03245010	32mm	10	1 1/4"-7	450mm
CWDA03645010	36mm	10	1 1/4"-7	450mm
CWDA04245010	42mm	10	1 1/4"-7	450mm
CWDA05245010	52mm	10	1 1/4"-7	450mm
CWDA06245010	62mm	10	1 1/4"-7	450mm
CWDA07245010	72mm	10	1 1/4"-7	450mm
CWDA08245010	82mm	10	1 1/4"-7	450mm
CWDA09245010	92mm	10	1 1/4"-7	450mm
CWDA10245010	102mm	10	1 1/4"-7	450mm
CWDA11245010	112mm	10	1 1/4"-7	450mm
CWDA12745010	127mm	10	1 1/4"-7	450mm
CWDA13245010	132mm	10	1 1/4"-7	450mm
CWDA15245010	152mm	10	1 1/4"-7	450mm
CWDA16245010	162mm	10	1 1/4"-7	450mm
CWDA17245010	172mm	10	1 1/4"-7	450mm
CWDA18245010	182mm	10	1 1/4"-7	450mm
CWDA20045010	200mm	10	1 1/4"-7	450mm
CWDA25045010	250mm	10	1 1/4"-7	450mm
CWDA30045010	300mm	10	1 1/4"-7	450mm
CWDA35045010	350mm	10	1 1/4"-7	450mm

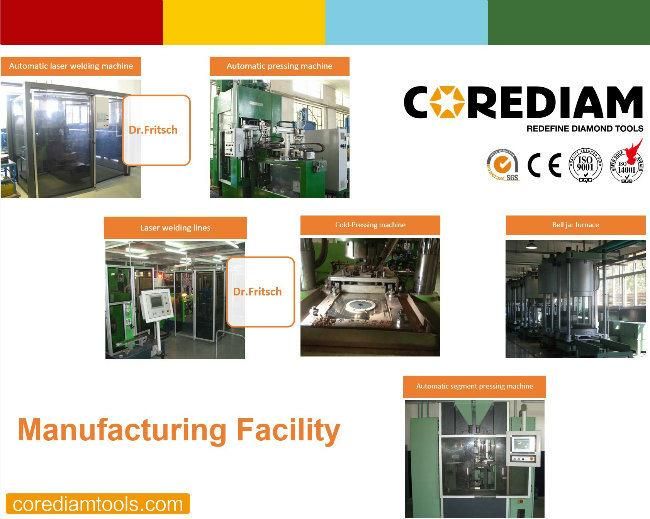

4.Corediam facility



5.Quality Control&Test

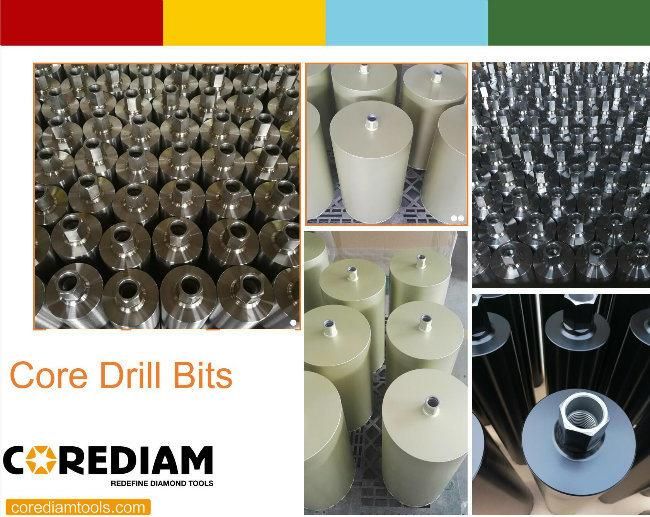

6.Delivery time&Packing

2 weeks for samples after order confirmed.
3 weeks for batch order after payment confirmed.



7.Corediam introduction

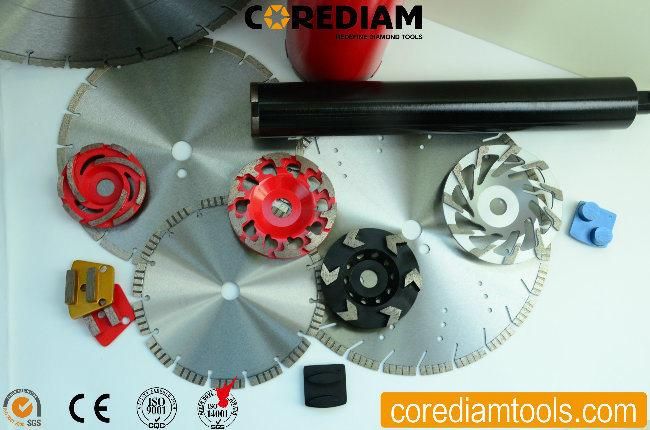

Corediam Tools Co., Ltd., as a high-tech enterprise, concentrates on researching & developing manufacturing and marketing diamond tools industry. We have the most extensive, innovative and powerful range of diamond tools for construction, stone and DIY markets. Corediam strives to be the leading professional supplier in the world through technology innovation.
