• Model NO.：Turbo segment wet core drill bit
• Transport Package：Color Box,White Paper Box, Brown Paper Box
• Specification：Dia 25mm-108mm
• Trademark：BSP TOOLS
• Origin：China
• HS Code：8207191000
• Production Capacity：50000,Year

Basic Info.

Model NO. Turbo segment wet core drill bit Transport Package Color Box/White Paper Box/ Brown Paper Box Specification Dia 25mm-108mm Trademark BSP TOOLS Origin China HS Code 8207191000 Production Capacity 50000/Year

Product Description

BSP tools manufacture supply Turbo segment wet core drill bit with 1 year warranty. We devoted ourselves to diamond tools many years,covering most of Europe and Australia market. We are expecting become your long term partner in china.

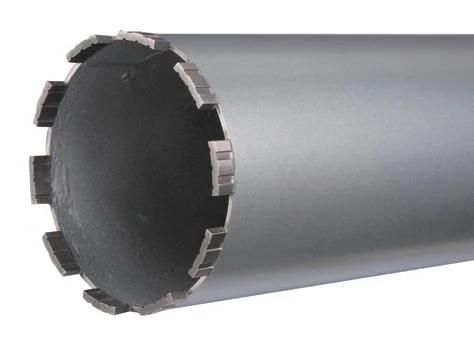

Turbo segment wet core drill bit

1.Product Introduction of the Turbo segment wet core drill bit
Our Turbo segment wet core drill bit designed to be used Wet. Turbo segment provides faster cutting action. The Turbo segment wet core drill bit with turbo segment give a neat hole and quick drilling performance. Segments are laser-welded, giving the desired robustness and durability. High-class mix of diamonds and optimised bond offer extended use. It is a high-performance diamond drilling bit that guarantees excellent cutting speed and a long life on building materials.These excellent results in reinforced concrete coring have been achieved by increasing the diamond concentration in the sectors and thus allowing the tool to handle all the most complex construction materials. Laser Welded Segments - Segments are attached to the tube by laser welding to minimise the risk of segment loss.

2.Product Parameter (Specification) of the Turbo segment wet core drill bit

DIA.	DRILL DEPTH	NO.OF	SEG.SIZE	DIA.	DRILL DEPTH	NO.OF	SEG.SIZE
mm	mm	Segs.	mm	mm	mm	Segs.	mm
25	400	3	15 x 4.0 x 10	114	400	10	24 x 4.0 x 10
27	400	3	15 x 4.0 x 10	122	400	10	24 x 4.0 x 10
32	400	4	15 x 4.0 x 10	127	400	11	24 x 4.0 x 10
36	400	5	15 x 4.0 x 10	132	400	11	24 x 4.0 x 10
48	400	4	20 x 3.5 x 10	142	400	11	24 x 4.0 x 10
42	400	4	20 x 3.5 x 10	152	400	12	24 x 4.0 x 10
46	400	5	20 x 3.5 x 10	160	400	12	24 x 4.0 x 10
52	400	5	24 x 3.5 x 10	165	400	12	24 x 4.0 x 10
56	400	5	24 x 3.5 x 10	172	400	14	24 x 4.0 x 10
63	400	6	24 x 3.5 x 10	180	400	14	24 x 4.0 x 10
67	400	6	24 x 3.5 x 10	200	400	14	24 x 4.5 x 10
72	400	7	24 x 3.5 x 10	215	400	15	24 x 4.5 x 10
76	400	7	24 x 3.5 x 10	230	400	15	24 x 4.5 x 10
83	400	7	24 x 3.5 x 10	250	400	16	24 x 4.5 x 10
89	400	8	24 x 3.5 x 10	254	400	16	24 x 4.5 x 10
92	400	8	24 x 3.5 x 10	305	400	17	24 x 5.0 x 10
102	400	9	24 x 4.0 x 10	355	400	18	24 x 5.0 x 10
108	400	10	24 x 4.0 x 10

3.Product Feature And Application of the Turbo segment wet core drill bit
Our Turbo segment wet core drill bit Mainly used in Highly reinforced concrete, Reinforced concrete, Concrete. Standard 1-1/4UNC or 1/2BSP thread to fit suitable adaptors on hand-held drills.



4.Product Details of the Turbo segment wet core drill bit
BSP tools manufacture provide Turbo segment wet core drill bit is mainly diameter from 25-355mm for construction market. The Segment height could be 10mm. The core bit thread is 1/2BSP or 1-1/4UNC. BSP TOOLS Special length and segment shape are available which is according to the customer request.

5.Product Qualification of the Turbo segment wet core drill bit
Our Turbo segment wet core drill bit has ISO:9001 quality certificate



6.Deliver,Shipping And Serving of the Turbo segment wet core drill bit
The Turbo segment wet core drill bit samples can be sent within one week and bulk order can be finished within 30 days . Shipping by air or sea all is ok. We provide customer minimum 1 year warranty.

7.FAQ

Do you have MOQ?
OEM is 50pcs MOQ; ODM 100pcs MOQ.

What about the color of diamond core bit?
We have standard color covering red, orange, black, white blue and Grey. Other color are also available according to customer RAL code. But need minimum quantity 50pcs.

What is the package?
BSP TOOLS offer color box ,white box and brown box .

What information you need to provide the price?
Better tell us the power of your drilling motor/hand held drilling machine/angle grinder and RPM request.
