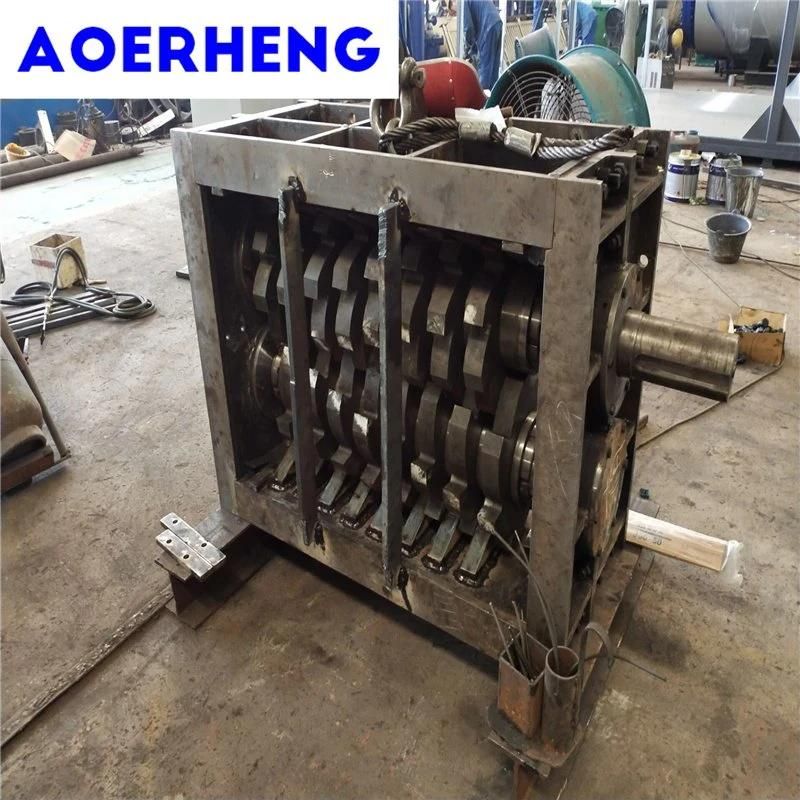

Double-Shaft Shredder/Shredding Machine for Waste Wood
Wuhan Wanbang Laser Diamond Tools Co., Ltd.Base Info
Description
b. Bearing and seal: the split and easy to disassemble type adopted by the bearing seat can quickly remove the moving knife, fixed knife, bearing and other components, which is easy to maintain and replace the cutting tool. The unique sealing structure can effectively block the connection between broken objects and grease, and protect the bearings and gears when handling liquid materials;

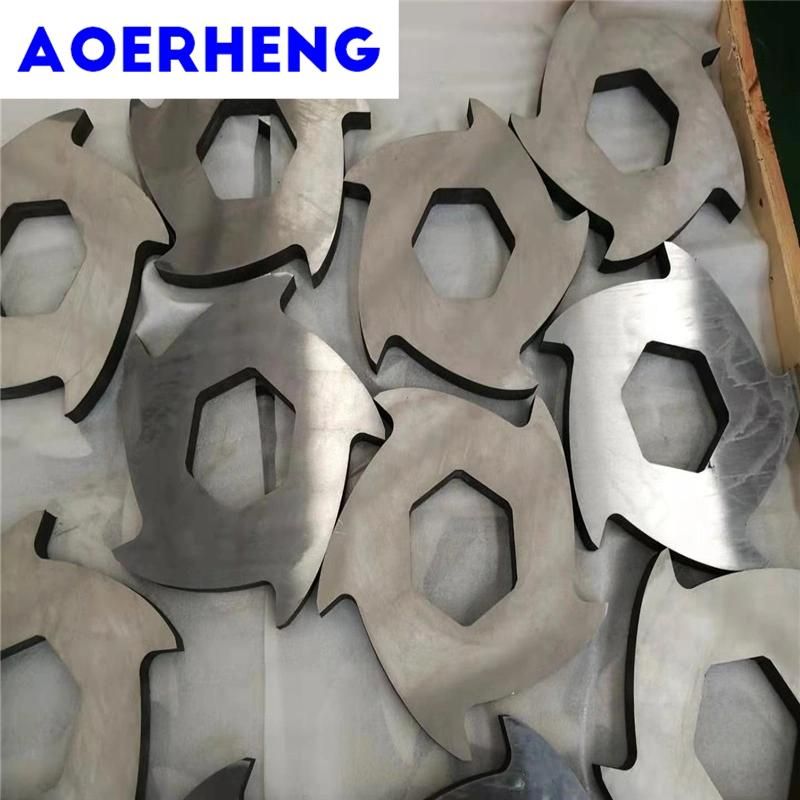

c.Moving tool and fixed tool: the moving tool is made of special alloy tool steel forging blank, precision machining, multiple heat treatment and low-temperature freezing and heat treatment technology. The overall toughness and hardness are consistent, and can be repaired and used repeatedly to ensure cutting performance and service life. The fixed tool adopts hook installation to optimize the tool replacement function.
d. Cutter shaft: it is made of high-strength and heavy-duty special steel, which can be more reasonably cooperate with the cutter to provide powerful cutting power.
2.Product Characteristics:
a. Low speed, high torque, low noise;
b. Large processing capacity, controllable discharge size, uniform discharge and high efficiency;
c. The overall modular design is convenient for maintenance and replacement of parts;
e. The crushing tool is made of alloy steel and has been heat treated, with long life and good wear resistance;
f. The front and rear bearing seats are processed in one piece to ensure the coaxiality of the bearing holes at both ends;
g. Up and down opening and closing design, convenient for disassembly and assembly of the whole spindle;
H. The four-fold seal in the bearing housing is waterproof and dustproof;
i. Wear-resistant baffles are installed beside the bearing seat to prevent materials from directly contacting the bearing seat;
3.Technical Specification:
Serial number modelTear cavity size
long×wide×high
(mm) Blade diameter
(mm)blade thickness
(mm)spindle speed
(rpm)motor power
(kw)Tearing particle size
(mm) yield
(t/h) 1 2S0206 600×410×230 Φ200 15-3012-2511*23-300.3-0.6 2 2S0208 800×410×220 Φ200 15-3012-2515*23-300.5-1.0 3 2S0308 800×620×330 Φ300 15-3510-2218.5*23-300.8-1.6 4 2S0310 1000×620×330 Φ300 20-4010-2222*23-301.2-2.0 5 2S0312 1200×620×330 Φ300 20-409-1630*23-301.8-2.8 6 2S0410 1000×830×440 Φ400 20-409-1637*23-302.0-3.6 7 2S0412 1200×830×440 Φ400 20-459-1545*23-303.0-4.5
4.Company Certification:

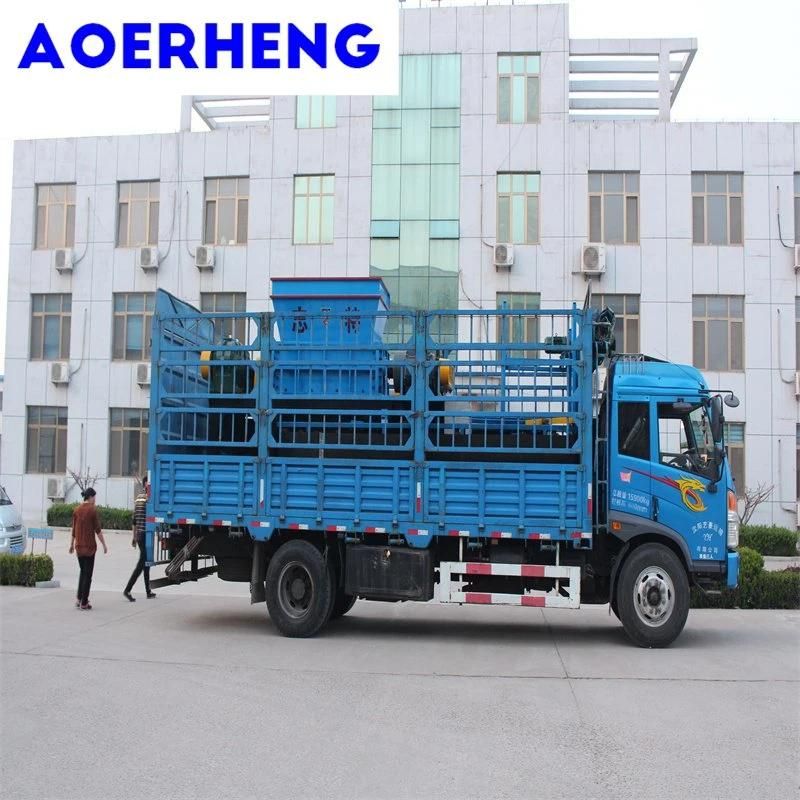

5.Transportation:
6.Our Customer :
FAQ
You May Have Following Questions:
Q1:Are You Trading Company or Factory?
We are factory for shredder more than 20 years .
Q2:What About The Machine Installation?
For a single machine or a simple line,we provide you Foundation Drawing ,Installation Instruction Books or sucessful
installed machinery picture or video;For the productioin line,we could send our engineers to guide the installation if necessary .
Q3:How About The Spare Parts?
We offer some free spare parts like belt,gasket etc small parts,for the BLADES,KNIVES,SHAFTS etc important wearing
parts,we sugget customers buy some along with the machines to save the shipping cost,and we have enough spares parts
in stock.
Q4:What Will We Do If We Have Problems with The Machine After We Buy the Machine?
We have people who is special for after-sale service,if foreign customers have problems when machine is working,just feel
free to send us the picture or video to show us,we will give you solutions within 24 hours.
