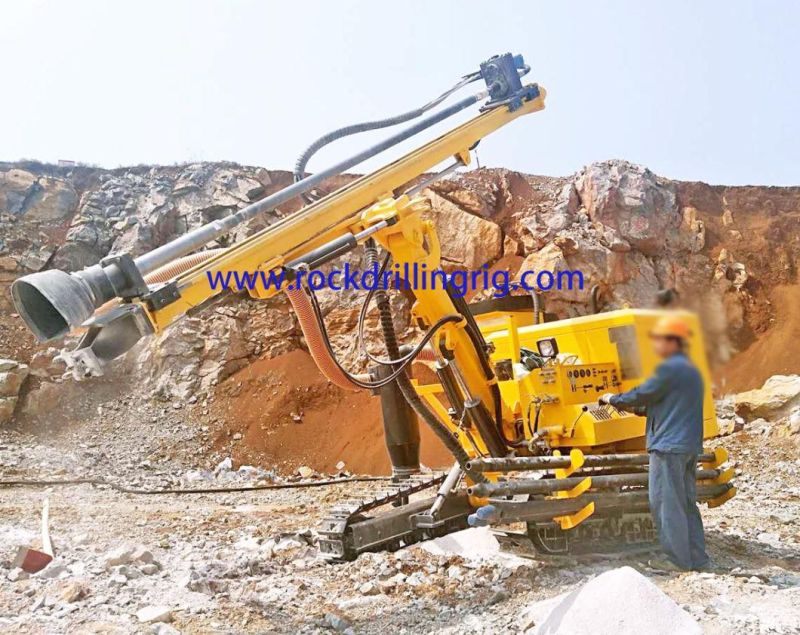

DTH Drilling Track Mounted Hydraulic Rock Blasting Drilling Rig
Zhejiang Labo Machinery Group Co., LtdBase Info
Description
1
Rock Hardness
F=6-20
2
Hole Diameter
90-152mm
3
Hole Depth
40m
4
Drilling Rod Diameter60,76,89 mm5
Air consumption
17-21 m³/min
6
Max swing of guide
Lift45° Right45°
7
Max dump of guide
180°
8
Rotation Speed(Normal and Fast)
0-82/0-112rpm
9
Rotation Torque
3300N.m
Feeding System
10
Max. Feed force25 KN
11
Max. Lifting force30 KN
12
Max. Feed Speed15 m/min13
Max. Lifting Speed15 m/minBoom&Guide
14
Max Swing of Boom
45° left / 45° right
15Max Dump of Boomup60 down2016Max Swing of Guide
30(L) / 91(R) or91(L) / 30(R)
17
Max Dump of Guide
180°
18
Feed Stroke
3 m
Engine19ManufacturerYUCHAI20Rated Horse power
63 KW21Electrical System
24 V22
Cylinder4General Specification
23Max. Travel Speed(Slow/Fast)
2/3 Km/h24Gradeability
24°25
Grouser Width324 mm26Net Weight
5500kgs27Shipping Length
6000mm28Shipping Width
2150mm29Shipping Height
2500mm
30Ground Clearance252mm
31Guide Extension1200mmCooling System
33Volume of Flow200 L/MIN34Rated Pressure
1.6 Mpa
Dust Collector36
WETOptional
37
DRY
Optional

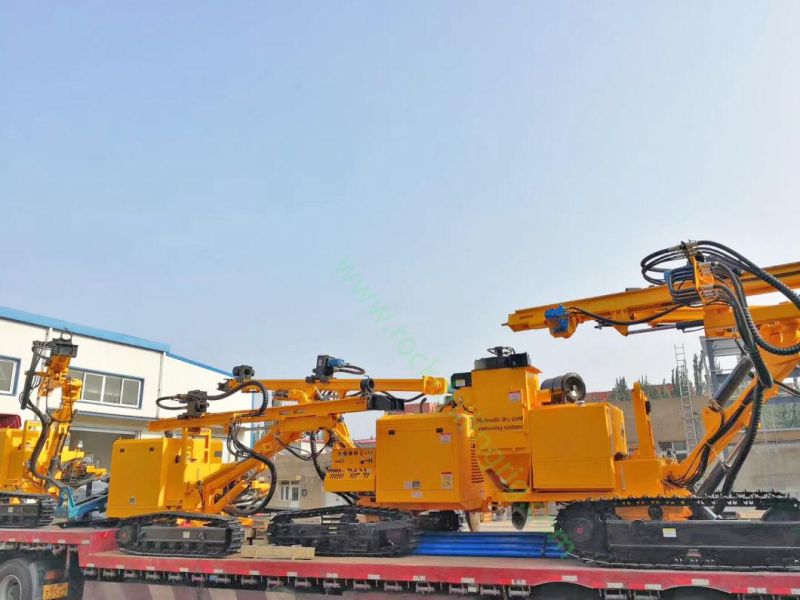

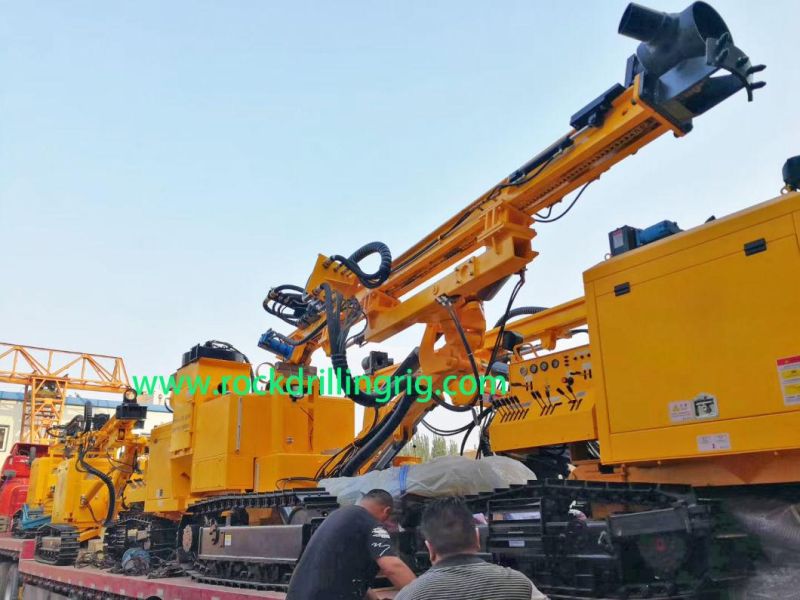

Packing& Delivery

Service
1. We have service team to supply professional guidance for installation.
2. Our quality inspection department will check each of machine before leaving the factory.
3. We offer one-year quality warranty for main body of machine.
4. All of machines we sold hold the ISO, QC, TUV certificates and so on
Certificate
FAQ
Q1. Is it a reliable company?
Beijing Jincheng Mining Technology Co.,Ltd is a professional manufacturer of drilling rig&drilling tools in Beijing,China, and specializes in the R&D, production, process and sale of water well drilling rig,rock blasting drilling rig,anchor drilling rig,RC drilling rig,air compressor and relative drilling tools. We have satisfied a lot of domestic and overseas clients' needs.
Q2: What about the delivery?
The drilling rig,air compressor usually shipment by sea or road,and drilling tools can be delivery by air.
Q3: What's the delivery time?
7-25 days after received your payment.
Q4: What's the package?
Strong and beautiful aluminum alloy case/carton case/wooden case.
Q5: Do you have any timely technology supports?Yes. We have a professional technology supporting team and the technical documents for your timely services, also you can contact us by telephone, webcam, online chat (googletalk, MSN, skype, yahoo…). If you have problems, please email us. You will get our solutions in 24 hours.
Q6: What's the payment method?
T/T, WESTERN UNION, MONEYGRAM
Q7: If the machines broken during the shipment, will you support us?Generally our customers will purchase the insurance before shipment to avoid any lost from rough transportation. We will help you to solve the claims with the insurance companies to collect your money back in time.
