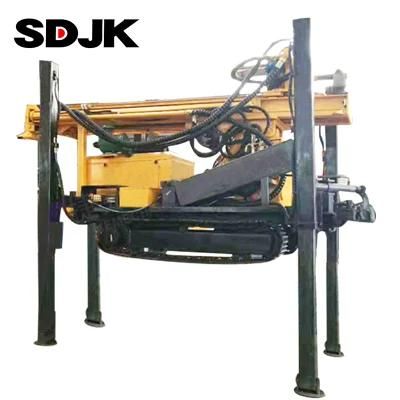

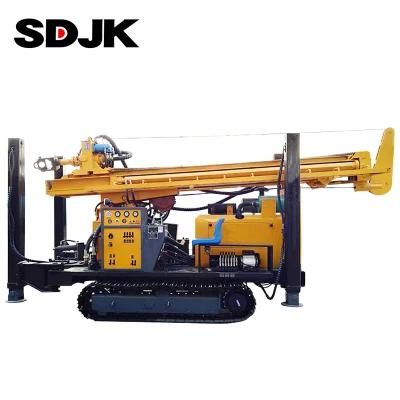

600m Hydraulic Water Well Drilling Rig
Zhejiang Huawei Machinery Co., Ltd.Base Info
Description
The Main Parameters Model JK-DR600 Weight 12T Bore diameter 140-350mm Drilling depth 600m Stroke 6.6m Travelling speed 2.5km/h Gradeability 30% Power 132KW Rated pressure 1.7-3.5mpa Air consumption 17-35m³/min Drill rod diameter Φ102, Φ108 , Φ114 Drill rod length 1.5m 2.0m 3.0m 6.0m Elevating capacity 28T Swing speed 45-115rpm Swing torque 8500-11000N.M Dimensions 6000*2200*2850mm
