• Model NO.：SLG65,70,85
• Model No.：Slg65,70,85
• Material：Stainless Steel
• Warranty：1 Year
• Voltage：380V,50Hz, 220V,50Hz, or Required
• Screw Materials：38CrMoAl
• Corn Flakes Manufacturing Plant：Snack Machines
• Output：120-150kg,H, 200kg,H, 300-400kg,H
• Export Markets：Global
• Service：Good After-Sale Service
• Supply Ability：99 Sets
• Transport Package：Standard Wooden Case
• Specification：CE
• Trademark：Jinan Datong Machinery Company
• Origin：Jinan Shandong
• HS Code：84361000
• Production Capacity：100-150kg,H

Basic Info.

Model NO. SLG65/70/85 Model No. Slg65/70/85 Material Stainless Steel Warranty 1 Year Voltage 380V/50Hz, 220V/50Hz, or Required Screw Materials 38CrMoAl Corn Flakes Manufacturing Plant Snack Machines Output 120-150kg/H, 200kg/H, 300-400kg/H Export Markets Global Service Good After-Sale Service Supply Ability 99 Sets Transport Package Standard Wooden Case Specification CE Trademark Jinan Datong Machinery Company Origin Jinan Shandong HS Code 84361000 Production Capacity 100-150kg/H

Product Description

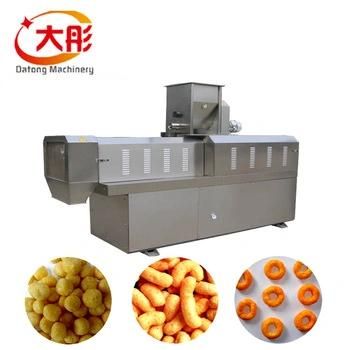

1. Description Of Expanded Snack Food Making Machine  :
Cheese Curls Food Extruder Machinery adopt corn, rice, wheat, oat, barley etc as ingredients to make puffed snack. Through friction of screw and barrel, the grains are cooked in the extruder. Forming is at the die face cutter. The product shape is determined by a combination of the die aperture, including ball, tube, stick, ring, fruit loop, star, wheel and flower etc.

2. Snacks Raw materials:
    Corn, rice, millets, wheat, oat, barley etc as ingredients. Please note that all the materials should be in powder(flour) or grits form.
3. Snacks food Products shapes:
   Variety shapes are available for ball, tube, stick, ring, fruit loop, star, wheel and flower and heart shape by adjusting the mould in the extruder
4. High Quality Cereal Snack Machine Food Extruder Machine  Capacity:
    60-80kg/h 100-150kg/h, 200-240kg/h, 500kg/h

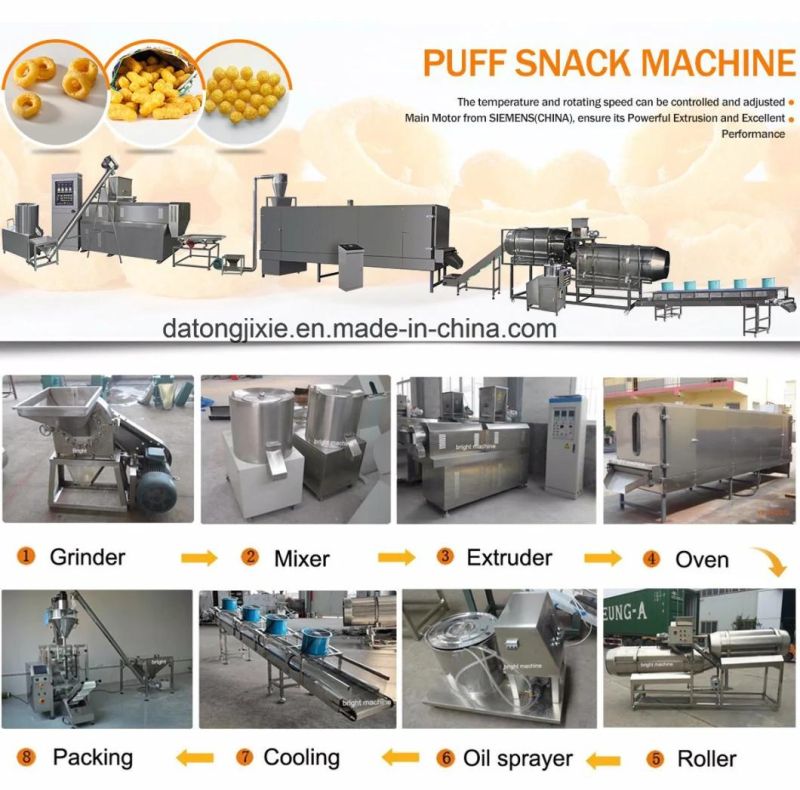

5.  Snacks Food Processing Line  Flow chart:
    Grain grinder---Mixing system---Twin screw Extrusion system----Drying system----Flavoring system--Packing system

6. China standard industrial Voltage for the machine:
     Three phases: 380V/50Hz, Single phase: 220V/50Hz, We can make it according to customers' Local voltage according to different countries (400v 415v 480v...).
7. Inflating Snacks Food Processing Line  Materials:
All the Snacks food machines are made by stainless steel, this whole line is with reasonable design and with high automation; the screws are made by alloy steel, with building block system structure and self-cleaning function.

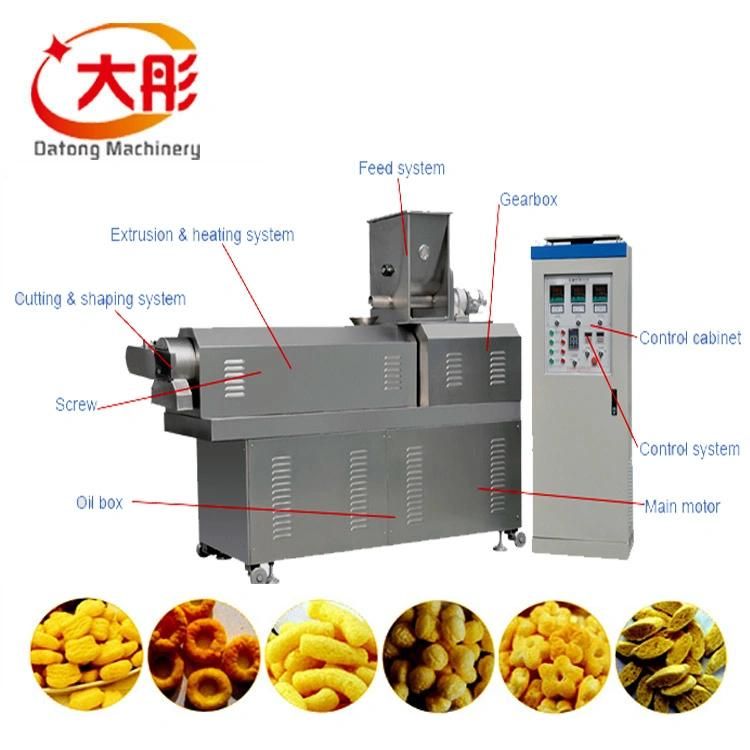

8. Details & Features of  Inflating Snacks Food Processing Line :

1. Alloy (38CrMoAL) screw made by nitriding process, high strength and wear-resting. Self-cleaning ability, no need to discharge or clean the barrel and screw when roasting or replacing of materials.
2. Adopting speed-adjusted converter on feeding system, extrusion system and cutting system. Food grade stainless steel twin screw feeding machine, stable materials feeding in the whole food process.
3. Gearbox with automatic lubrication function, extending gear life.
4. Increased radiator on driving part for forced cooling effect, ensuring extruder operates safely.
5. Barrel with water-cooled circulation, raw materials not only for corn/rice, also for wheat flour/starch with high viscosity. Different moisture-extrusion temperature ratio, whole-expanded and half expanded as different type of products.
6. Cutting knife fixed in the die head seat, rotary cutting by V-belt drive.
9. Service & Turnkey Solution:
a. ) Consultation service before, during, and after sales;
b. ) Project planning and design service;
c. ) Debugging of equipment until everything is functional;
d. ) Management of equipments' long distance shipping from seller's factory to the named place by buyer;
e. ) Training of equipment maintenance and operating personally;
f. ) New production techniques and formulas;
g. ) Provide 1 year complete warranty and life-time maintenance service.
10.Snack food processing line model:

Model	Installed power	Real power	Output	Dimension
SLG65-III	70kw	40kw	100-150kg/h	22000x1200x2200mm
SLG70-III	90kw	50kw	200-240kg/h	25000x1500x2200mm
SLG85-III	120kw	100kw	400-500kg/h	30000x3500x4300mm
SLG90-III	135kw	100kw	800-1000kg/h	30000x3500x4300mm
SLG65-I	50kw	30kw	60-80kg/h	15000x1200x2200mm

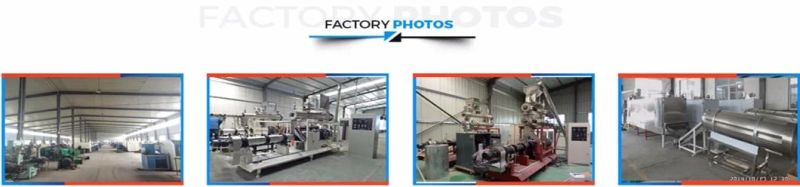

11.Jinan Datong Company:
We are Jinan Datong machinery & equipment Co., Ltd in Jinan city, China, and we are manufacturer and doing businesswith different customers from worldwide, for now, our main products are Food Twin Screw extruder, Feed Twin Screwextruder, Fish food machine, Dog Food machine, Pet Cat Food machine, Doritos Tortilla chips machine, Nik naks Kurkure Cheetos machine, Modified starch machine, Corn flakes machine, Corn puffs Cheese ball machine, Frying pellets machine, Artificial rice Puffed rice machine; Core filling Pillow Tube Finger snack machine; Vertical Packaging machine, Flowpack packaging machine. Our Feed Extruder for Fish Dog Cat Main Market is Africa(like Nigeria, Uganda); Aisa(Like Turkey, Uzbekistan, Iran, India, Indonesia, Thailand, Malaysia); Ocenia(Australia); North America(Canada); Central America & South America(like Mexico, Venezuela, Costa Rica, Latvia, Brazil, Peru, Uruguay, Paraguay, Chile, Argentina).



11.FAQ:
1. Q: Are you a trading company or a manufacturer?
A: We are the manufacturer, which has almost 10 years of experience in this industry.
2. Q: How can I get to your company?
A: That's great you can visit our factory, welcome! You can get a flight to Jinan Airport. Our factories are just about 30 minutes drive away from Jinan Airport.We are so glad to arrange our car pick you up!
3. Q: How long is your guarantee?
A: One year(Calculated from the equipment arrives the customer's side.).
After this period we will definitely support you when needed.
You will be welcome to contact us with any problem may happened.
4. Q: Will you send engineers to install the plant?
A: yes, but at an extra cost payable by the customer.
Or you can get local contractors to do the commissioning and we send one supervising engineer.
