Basic Info.

Model NO. Topsun Engagement System Full Intermeshing Screw Channel Structure Deep Screw Exhaust Exhaust Automation Automatic Computerized Computerized Capacity 80-1800kg/H Series Tsx Transport Package Pallet/Case Trademark TOPSUN Origin Yantai, China HS Code 8474 Production Capacity 10 PCS/Month

Product Description

High torque & High Speed Rotation Twin-Screw Extruder:
Mobile/(0086)13655450504

Website: ytopsun.en.made-in-china.com,  ytopsun.en.made-in-china.com







Twin-Screw Extruder

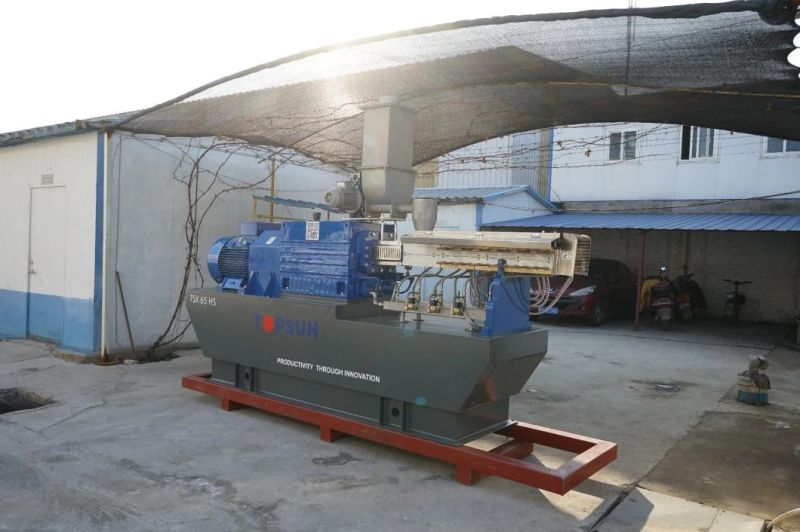

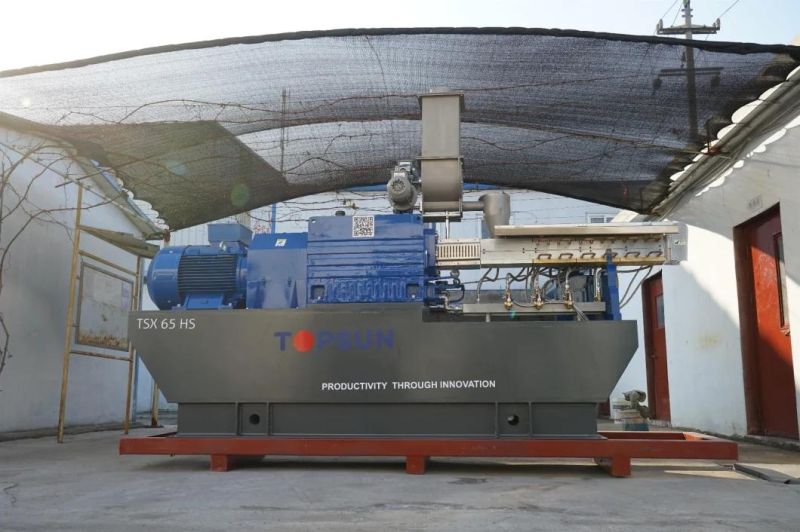

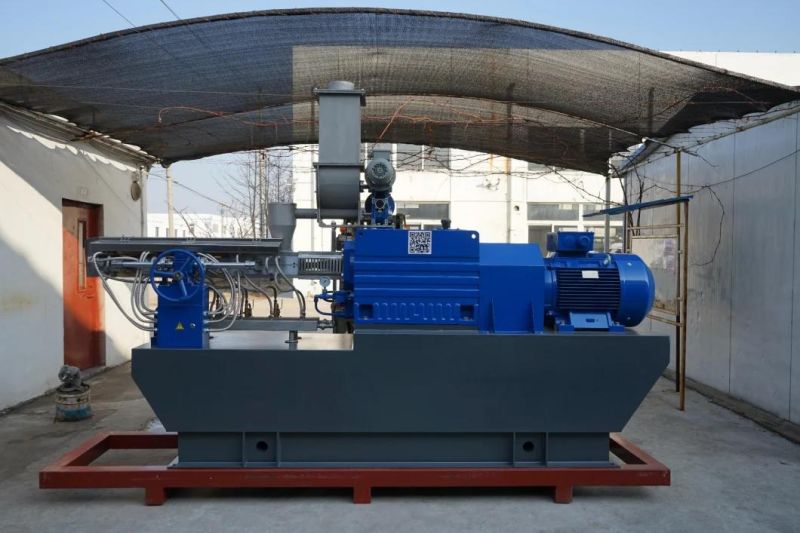

2.1 High torque & High Speed Rotation Twin-Screw Extruder:

Main Features:
*Full Gearbox from professional OEM maker, low noise, durable longevity
*High screw speed, high shearing, quick discharge
*Independent lube oil cooling system design
*Torque limiter to protect the drive train
*Suitable for reclaim powder, special powder production

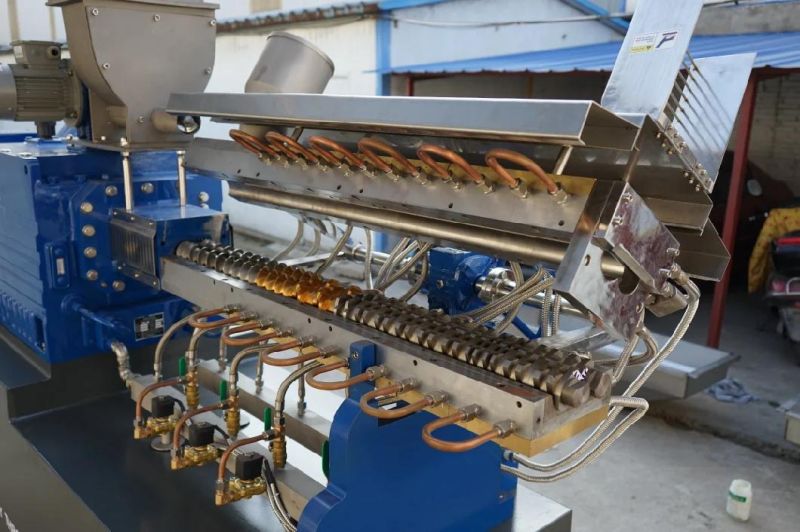

*Split design of barrel and liner inserts for easy cleaning and maintainence

*Top & Side feeding options
*Other features same as conventional type extruder

Technical Parameters:

Model	Capacity (kg/h)	Screw Diameter (mm)	Screw Length (mm)	Screw Speed (r/min)	Main Motor (kw)	Feeder Motor (kw)	Heating Power (kw)	Overall Dimensions (mm)
TSX-40	80-260	40	16D	0-800	11/15/18.5	0.55	8	1850*700*1750
TSX-52	150-450	52	16D	0-800	22/30/37	0.75	10	2700*900*2200
TSX-65	400-1000	65	16D	0-800	45/55/75	1.1	12	2900*1000*2400
TSX-75	800-1200	75	16D	0-800	75/90	1.5	16	3100*1200*2500
TSX-85	1200-1800	85	16D	0-800	90/110	2.2	20	3700*1500*2900

2.2 Conventional Type Co-Rotation Parallel Twin Screw Extruder

Features:
*Strong shearing, easy cleaning
*Accurate auto temperature control, high cooling & heating exchange
*Hinged clamshell type barrel opening, segmented liners for easy replacing and cost saving
*Feeder easy assembly & disassembly, inner structure to avoid agglomeration
*Configurable screw applied for different powder formulas
*Screw and barrel adopt special materials like Cr12MoV, CPM, etc., high wearing resisting
*Quite gearbox with low noise dB level
*Torque limiter to protect the drive train
*Low energy consumption

Technical Parameters:

Model	Capacity (kg/h)	Screw Diameter (mm)	Screw Length	Screw Speed (r/min)	Main Motor (kw)	Feeder Motor (kw)	Heating Power (kw)	Overall Dimensions (mm)
SLJ-40	80-220	40	16D	0-500	11/15/18.5	0.55	4	1800*600*1700
SLJ-50	150-300	50	16D	0-500	22/30	0.75	8	2600*700*2000
SLJ-55	300-400	55	16D	0-500	30/37	0.75	8	2700*900*2300
SLJ-60	400-600	60	16D	0-500	45	1.1	12	2750*1000*2350
SLJ-75	600-800	75	16D	0-500	55	1.5	12	2900*1100*2400
SLJ-80	800-1200	80	16D	0-500	75/90	2.2	20	3700*800*2800

2.3 Lab Type Extruder

Technical Parameters:

Model	Capacity (kg/h)	Screw Diameter (mm)	Screw Length	Screw Speed (r/min)	Main Motor (kw)	Feeder Motor (kw)	Heating Power (kw)	Overall Dimensions (mm)
TSX-20	0.2-10	22	16D	0-600	2.2-4	0.1	2	1600*300*850
SLJ-30	1-30	30	16D	0-500	3-5.5	0.18	3.2	1430*550*1300
SLJ-32	40-80	32	16D	0-500	7.5/11	0.25	3.2	1600*500*1500
