• Model NO.：YZYX70
• Condition：New
• Customized：Customized
• Product Name：Small Oil Machine with 1 Ton,D Capacity for Home
• Port：Shanghai, Chongqing, Qingdao, etc
• Advantage：Very Low Oil Left in The Cake
• Transport Package：Wooden Box
• Specification：ISO, BV, SGS
• Trademark：GUANGXIN
• Origin：Sichuan, China
• HS Code：84792000
• Production Capacity：400pieces,Month

Basic Info.

Model NO. YZYX70 Condition New Customized Customized Product Name Small Oil Machine with 1 Ton/D Capacity for Home Port Shanghai, Chongqing, Qingdao, etc Advantage Very Low Oil Left in The Cake Transport Package Wooden Box Specification ISO, BV, SGS Trademark GUANGXIN Origin Sichuan, China HS Code 84792000 Production Capacity 400pieces/Month

Product Description

Product Description

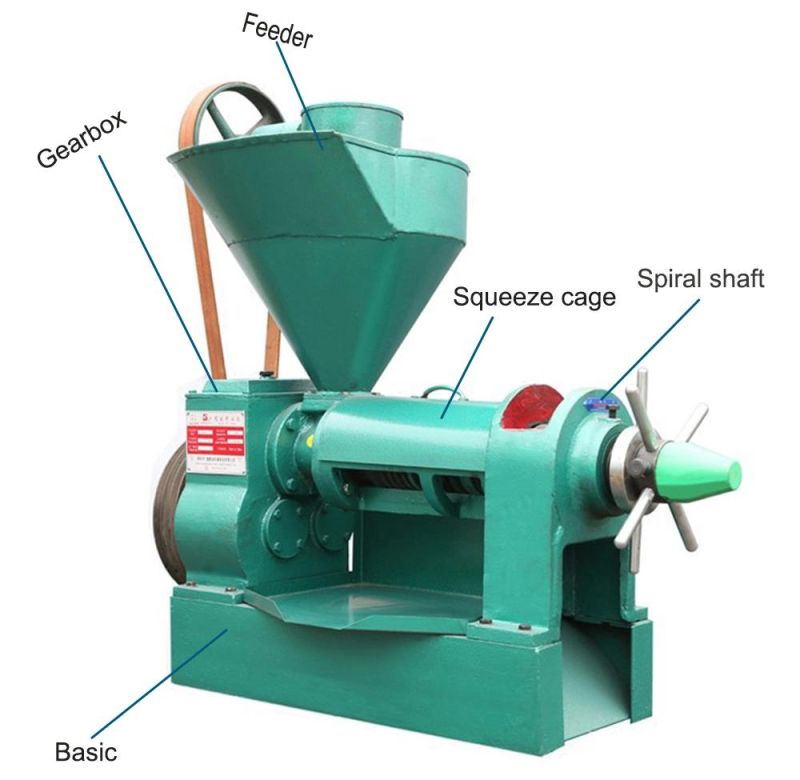

YZYX70 is a small type of oil press machine, input capacity 50 kg per hour, suitable for peanut, sesame and other oil bearing plants and seeds.

Machine Technical Characteristics

Model	YZYX70
Processing capacity (t/24h)	1.0
Oil content of dry cakes (%)	≤8
Squeezing power (KW)	4
Frying power	0.55
Temperature control power(KW)	1.2
Measurement (mm)	1090×405×806
Spiral axes rotate speed (r/min)	36-42
Weight (KG)	195

Application Range

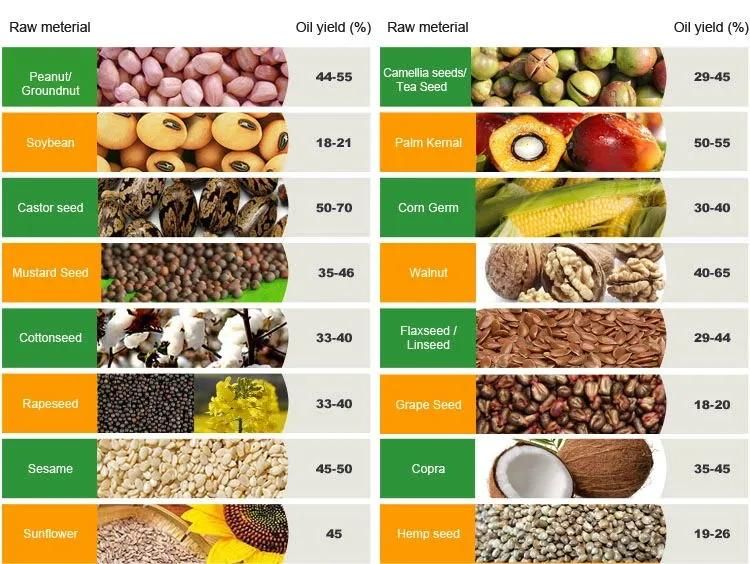

The machine suitable for various oil seeds such as peanut, soybean, castor seed, walnut , palm kernel and other oil bearing plant.


Main Features


1. Day output 1.3 ton/24h, oil content of residue cake is ≤ 8%.
2. Mini size 1090*405*806mm, requires small land to set.
3. Low investment, but can bring customers with good ecnomy profit.
4. Good quality and long durability, made of the most suitable material with refind treatments to ensure the long term using.
5. Can be driven by diesel generator if your local electricity power is not stable.


Quality Standard
Conform to JB/T9793· 1-1999 of The People's Republic of China & ISO9001: 2008.


Packing and Delivery

Sea-worthy wooden case with fumigation






Warranty terms
Free replacement of main body in 12 months from the date of purchasing if ther are quality problem.

After-sale service

1. We supply spare parts timely all year around at factory cost.
2. We afford technical solutions for buyers at any time.
