Model NO. BXA1000 Computerized Computerized Certification ISO9001:2008, CE Raw Material Pet Baled Bottles or Round Bottles Final Product Clean Pet Bottle Flakes Name Pet Bottle Washing Line Technological Process Crushing-Washing-Drying Keywords Pet Washing Line Function Crushing Washing Drying Plastic Product Name Pet Bottle Hot Washing Plant Type Pet Plastic Recycling Production Line Usage Plastic Washing Recycling Capacity 1000/2000/3000/5000kg/H Transport Package Wood/Film Specification 4200*2350*4870 Trademark Boxin Origin Jiangsu HS Code 8477800000 Production Capacity 1000kg/H

Product Description

Boxin BXA1000 Waste Plastic Recycling Machine PET Bottle Washing Line for sale
Product Description

1. This drinking water PET Bottle Washing Line mainly used for dealing with waste PET bottles, barrels etc.
2. To separate dirty PET bottles to flakes with label, cap, oil, garbage etc.

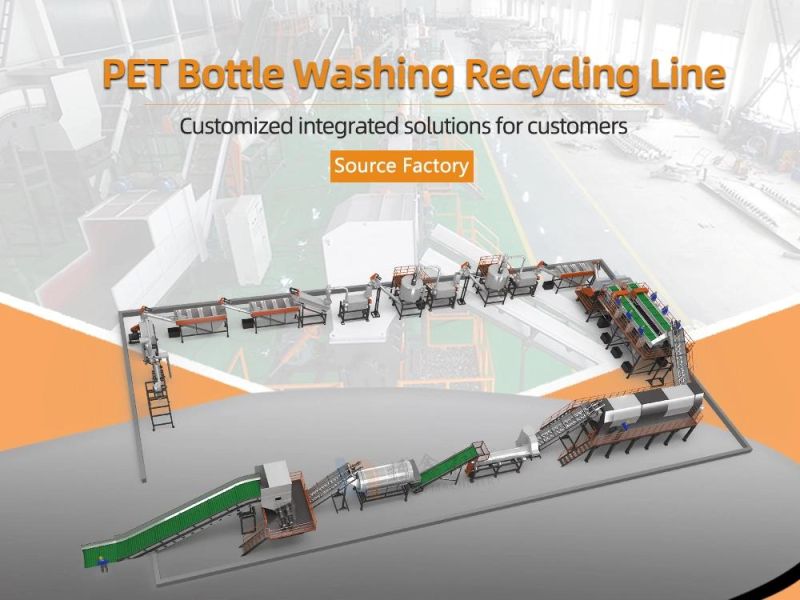

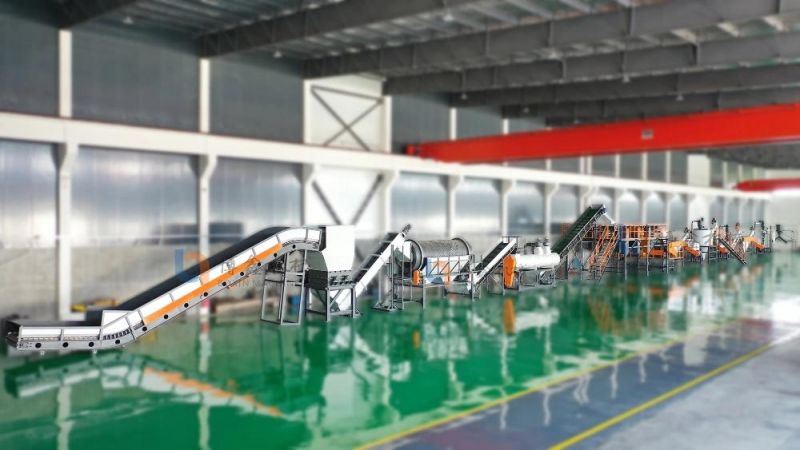

3. This PET Bottle Washing Line is composed of sorting, crushing, cold & hot washing , dewatering, drying , packing etc.
4. Easy to operate, Full automatic.5. This pet bottle washing line can be displayed "L" or "U" shape according to clients' workshop.
6. Reasonable process design and good cleaning effect .


Final PET flakes products have good quality.
When processPET bottle, final products humidity below 1%, impurities100ppm,PVC label content 100ppm .
The whole line capacity is between 300kg/h-5000kg/hour. High production capacity (more than 30% higher than the same equipment in the same industry), low energy consumption (water, electricity, gas, chemical cleaning agent consumption is 20% lower)
The material which contact with water use SUS304 stainless steel, thickness more than 3mm, to ensure long lift time.

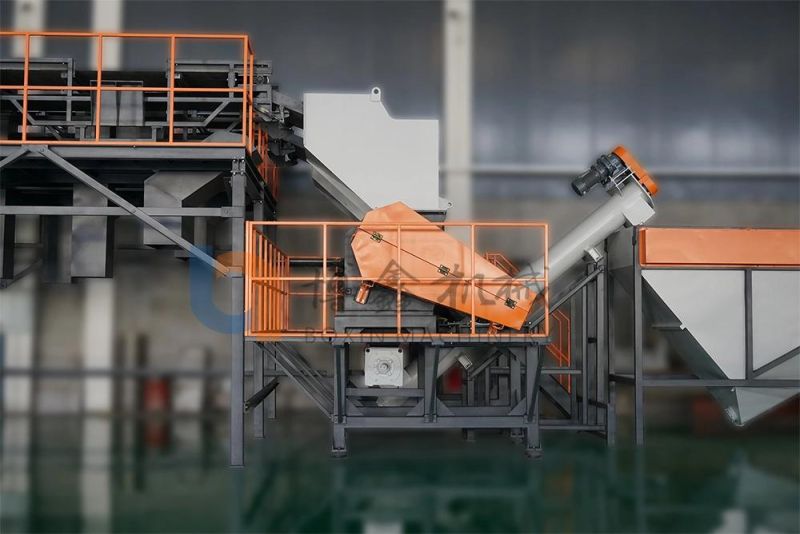

01 Conveying and De-baling System

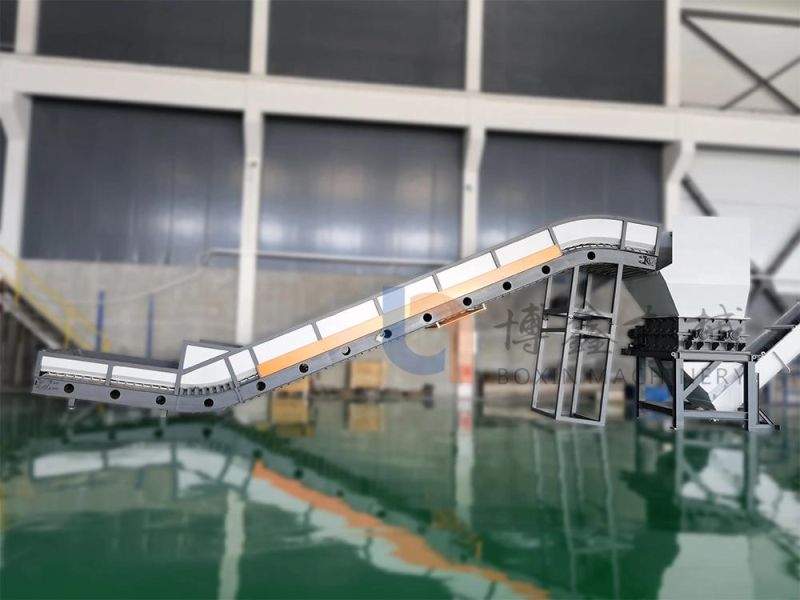

The adjustable speed metal chain conveyor greatly improves the efficiency and more durable.
The De-baler machine adopts the special structure design of angle 2-axis unpacking and 2-axis breaking, which can fully dissolve the bottle bricks to ensure the subsequent conveying process, and at the same time reduce the energy consumption to the greatest extent.


02 Label Removing System

Mainly used to peel off the label paper on the PET surface;
Ensure the integrity of the bottle and neck, reduce the loss of high-quality bottle finish.

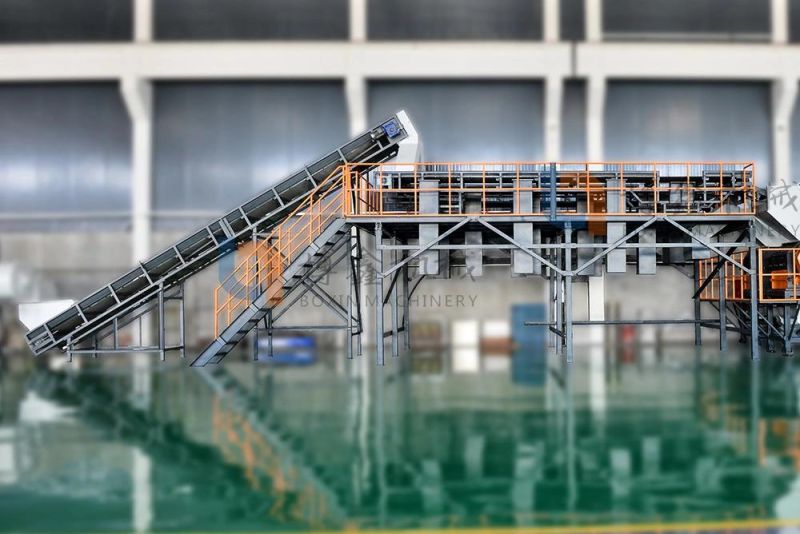

03 Manual Sorting System

Final classification and sorting of bottles before crushing;
The sorting system is a necessary way to ensure the quality of the foreign matter remaining in each unit of the previous section.


04 Crushing System

According to different output, choose different types of crusher;
The main shaft and box of the crusher are made of wear-resistant materials, which are safer and more durable.

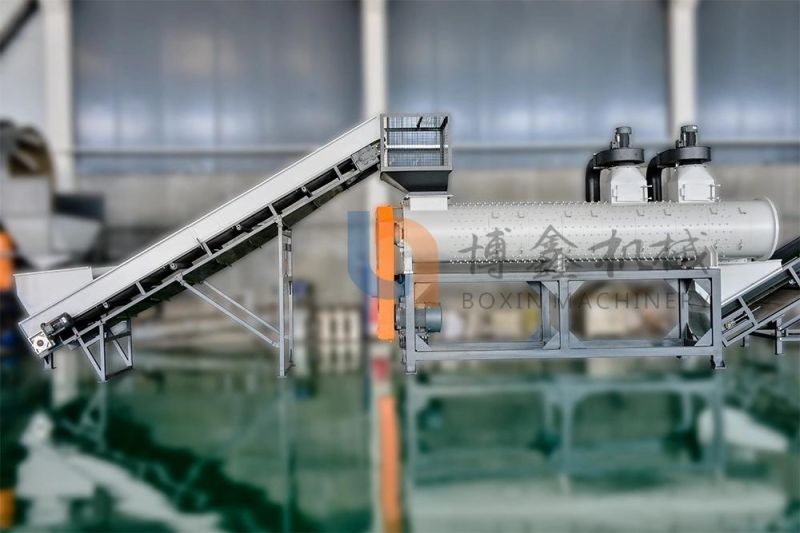

05 high Speed Fiction Washing System

Add high-speed friction washing machine to remove impurities more effectively and achieve ideal cleaning effect.

06 Hot Washing System

Hot washing effectively removes residual glue, oil stains and some fine impurities on the surface of the bottle.


07 Dewatering Machine

The moisture content of the final material plays a vital role in the next process;
It can be equipped with corresponding centrifugal dehydration and hot air drying system according to your production requirements of moisture content .

What We will Do?

After getting waste plastic raw material, BOXIN Technicians will study and analyze the main contaminants to provide a proper solution to remove most of the impurities by mechanical, chemical, physical and other principles.

Main process of the whole project included pretreatment of raw material → sorting → pre-washing → crushing → hot washing → cold washing → drying → package → granulation.

 BOXIN Machinery is a creative company, focusing on the technology R&D of plastic recycling, and providing the equipment and solutions for plastic washing, recycling and granulating. BOXIN Machinery plastic recycling technology mainly applied in the field of waste plastic regrinding, washing and regranuling. Thanks to the R&D ability and well-understanding industries experience, BOXIN Machinery can provide the customized plastics recycling solutions to customers. Typical productions Machinery can provide are: plastic washing line for PET bottles, PP PE film bags, HDPE Bottles, Plastic pelletizing recycling line for clean PP PE material, plastic shredder and crushers etc. Advantage of Machinery: Specialized R&D team involved in plastics recycling industries more than 18 years; Ability to provide the customized plastic recycling solutions; Complete sales system covering the pre-sale, sales and after sales; Professional engineers will perform debugging and technical guidance.
