High Efficient Two Layers Air Bubble Film Machine 75mm Screw Diameter with LDPE Material
Guangzhou Panyu District of Rock Yueli Metal Products FactoryBase Info
Description
Basic Info.
Model NO. WTPE-2S Assembly Structure Integral Type Extruder Screw Single-Screw Engagement System Full Intermeshing Screw Channel Structure Deep Screw Exhaust Exhaust Automation Automatic Computerized Computerized Material LDPE/LLDPE Transport Package Plastic Film Packing Specification 6*8*5m Trademark WT Origin ChinaProduct Description

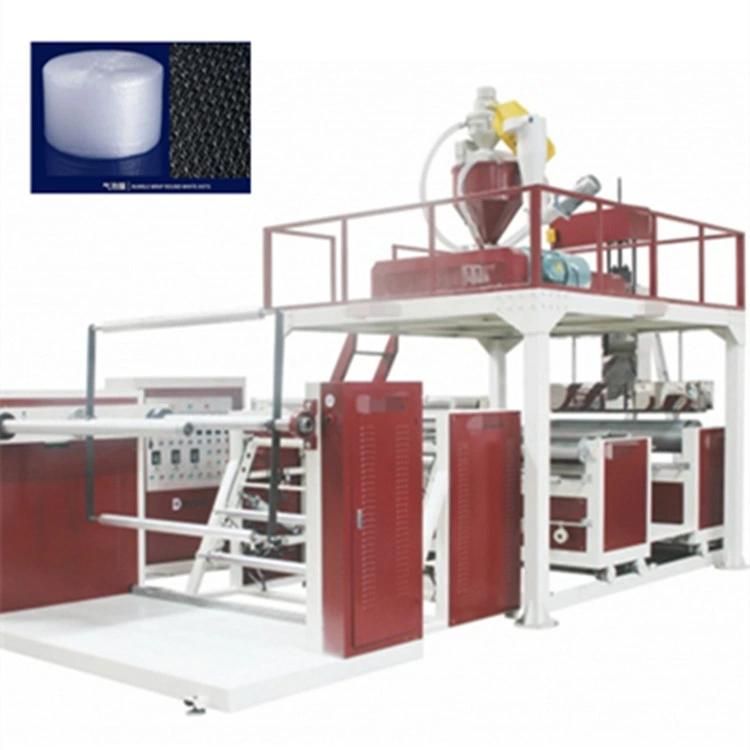

2 Layers bubble film making machine

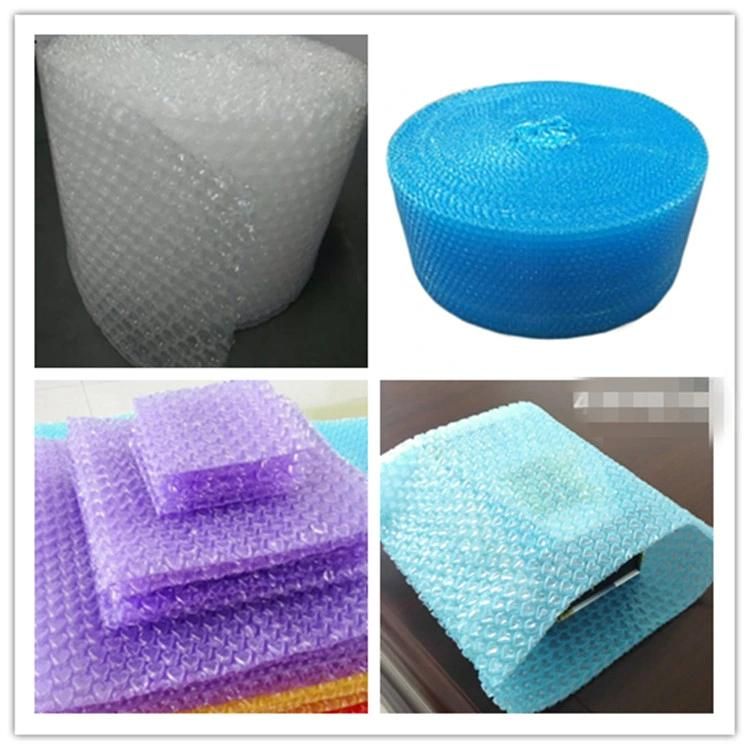

Bubble Wrap Manufacturing Machine is made of LDPE material. It can be used for various packaging
purposes such as moisture proving, dust proving, shock proving, and static prevention. It can also make
into laminated films with aluminized film, foamed PE sheet, and paper are the applications of sun shading,
heat insulation, and packaging.
Main Specification:
| Model | WT-1600 |
| Main and auxiliary extruder screw diameter | Φ75mm |
| L/D | 30:1 |
| Main and auxiliary extruder electrical power | 22KW |
| Width of production | 1600 mm |
| Main bubble specification | 10×3.6mm 6×3.2mm 25×10mm 30×10mm |
| Output | 80-130kg/h |
| Total installed capacity | 75kw |
| Overall dimension | 6000mm×3500mm×3150mm |
| Gross weight | 4T |
