Application:


It is used for blowing the various plastic film of low density polyethylene(LDPE) and high density polyethylene (HDPE) color striped plastic film, etc,
Which are widely used for packing food, fruit, garments, textile, daily necessities and other civil and industrial products.



Characteristics:


The cylinders and the screw stems of model SJ-45*2 extruder are made of high-quality alloy steel with optimum hardness and strong corrosion resistance after precision finishing and nitrogen treatment.FM-600 auxiliary machine can be freely adjusted within the limits of 700mm according to the technological requirements of different materials, and has is fitted with a plug-in plate mechanism for making vest bag ,The coiling unit adopts torque motor to keep proper tension and make rolling even and roll-changing easy.HDPE
 Film Width
 200-600
 300-800
 Film Thickness
 0.008 -0.06mm
 0.008 -0.06mm
 Max. Extrusion Output
 45kg /hr
 55kg /hr
 EXTRUDER


 Screw Diameter
 40+ 40mm
 45+ 45mm
 Screw L/d Length
 28/1
 Screw   Material
 38CRMOALA
 Cylinder Material
 38CRMOALA
 Cylinder Cooling
 370 w × 2
 370w × 2
 Driving   Motor
 15kw
 18.5kw
 Temperature Control
 3+3
 3+3
 Average Power-consume
 20kw
 28kw
 Type of die

 Die size mm
 70
 100
 Temperature   control
 2
 Air     ring
 1
 Air   blower
 2.2kw
 Center steady   stick(HD)
 1
 Take-upunit

 Roller   width
 165 × 650
 1658 × 50
 Take-up   speed
 10 -100m /min
 10 -100m /min
 Take-up motor
 0.75kw
 1.5kw
 Height   adjustable   type
 700mm
 700mm
 Winding   unit

 Type
 Surface friction type
 Winding   motor
 6kw
 6kw
 Wingding   speed
 100m /min
 100m /min
 Outline   diameter(L*W*H)
 5.0 × 2.0 × 4.1
 5.5 × 2.0 × 4.1












Single Screw Film Blowing Machine


Main Technical Parameters For Plastic Film Blow Machine

 BH-SJ60BH-SJ65Film Width (mm)200-600300-800400-1000600-1300Film Thickness(mm)HD:0.009-0.08          LD:0.02-0.15Max.Extrusion Output(HD)35kg/hr40kg/hr65kg/hr70kg/hr      (LD)45kg/hr45kg/hr70kg/hr75kg/hrScrew DiameterΦ45Φ50Φ55Φ65Screw L/D Length28:1Screw MaterialSACM-645/38CRMOALAOverall dimension
(L×W×H) mm5000x2000x45005000x2200x50005000x2500x55005000x2800x6500

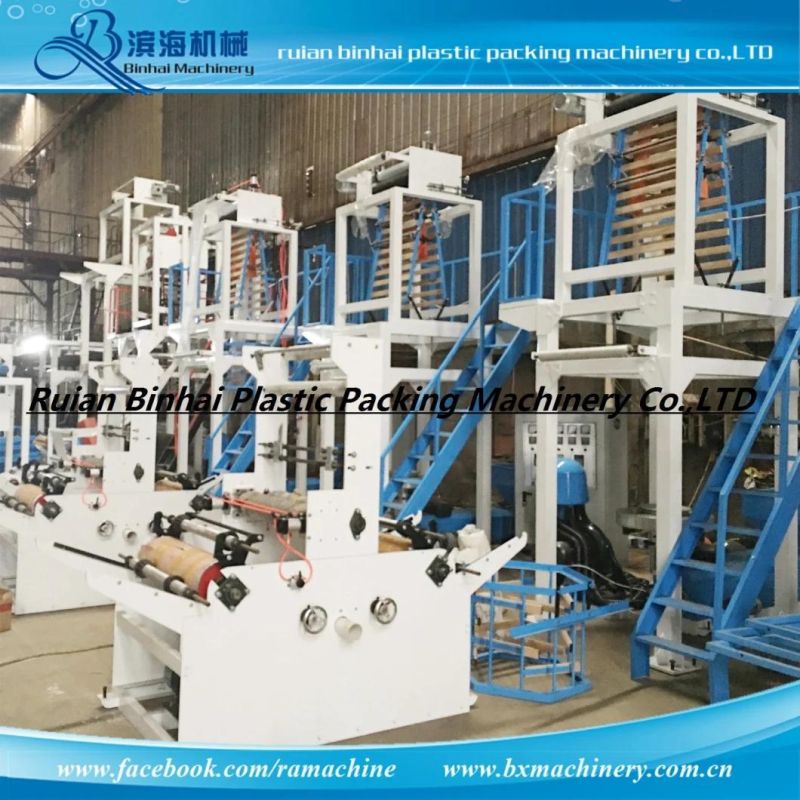

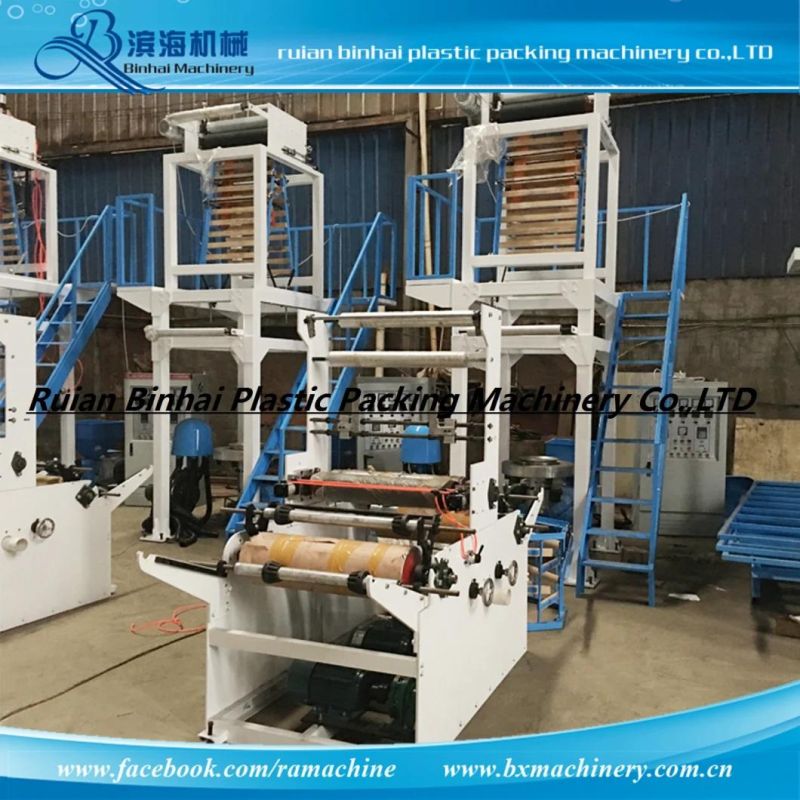

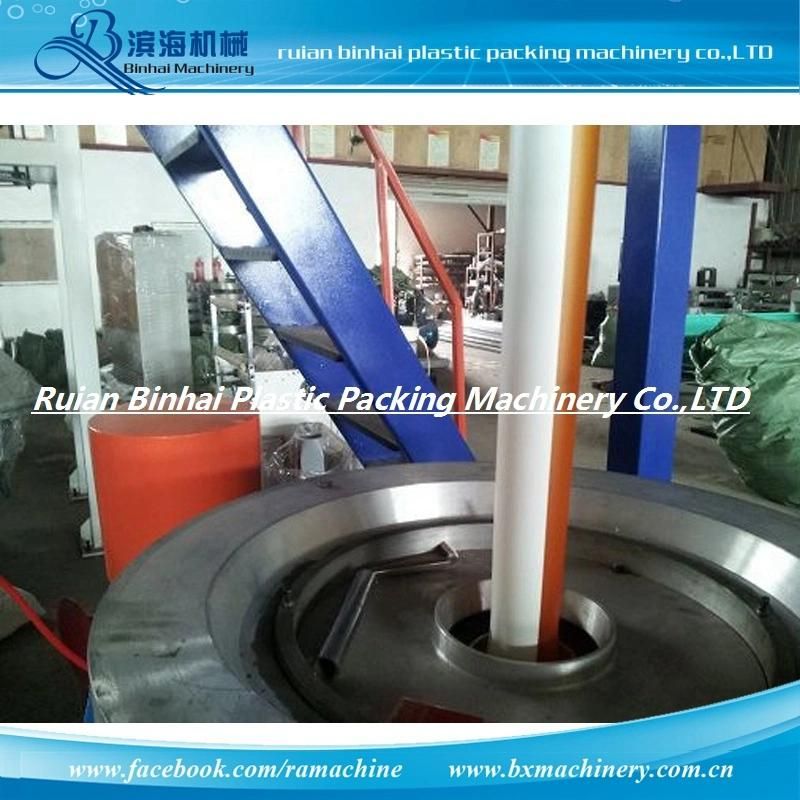

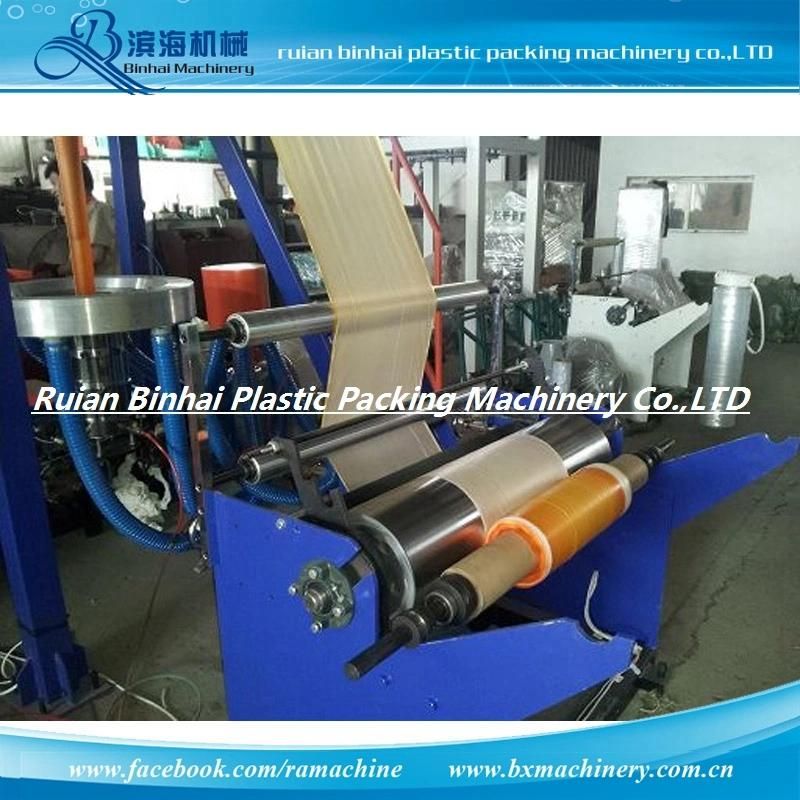

Pictures are 800mm , 50 # Screw For HDPE Film, LDPE Film Blowing Machine .

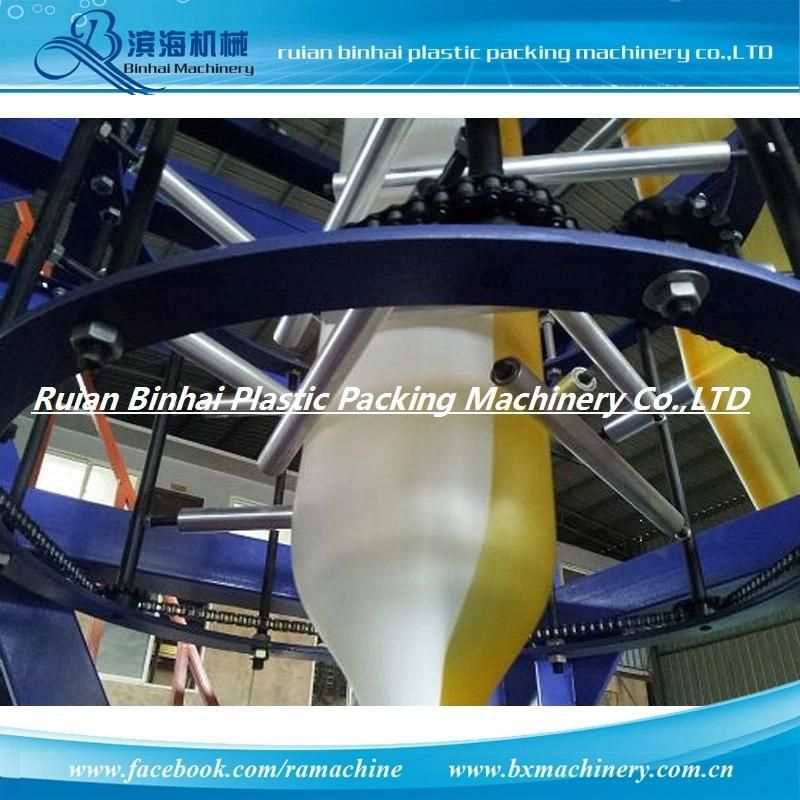

----Make Tube Film Rolls

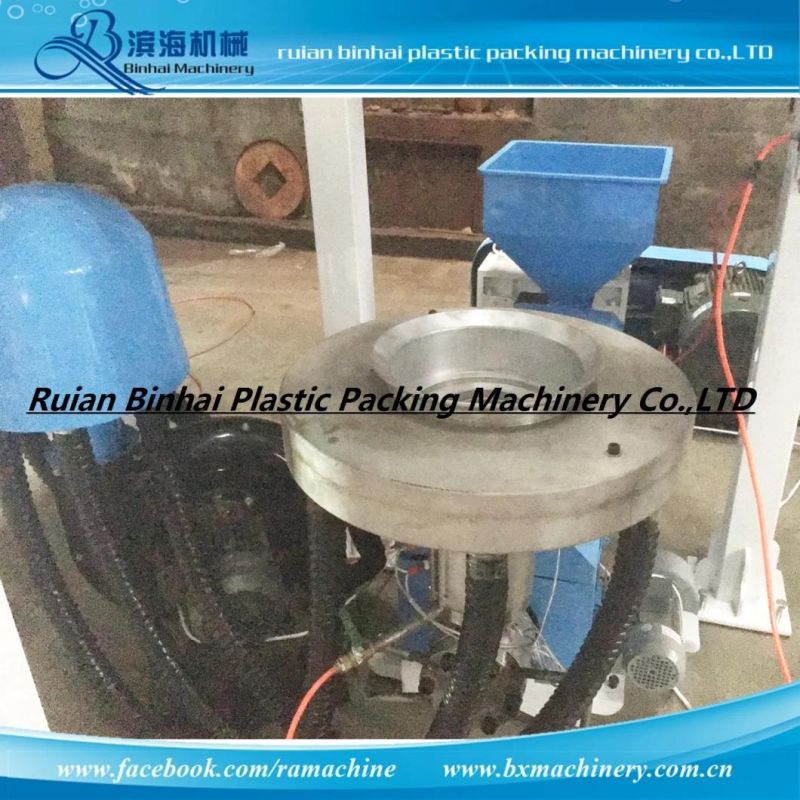

----If your Film is HDPE , Suggest Rotary Head Die (Optional )

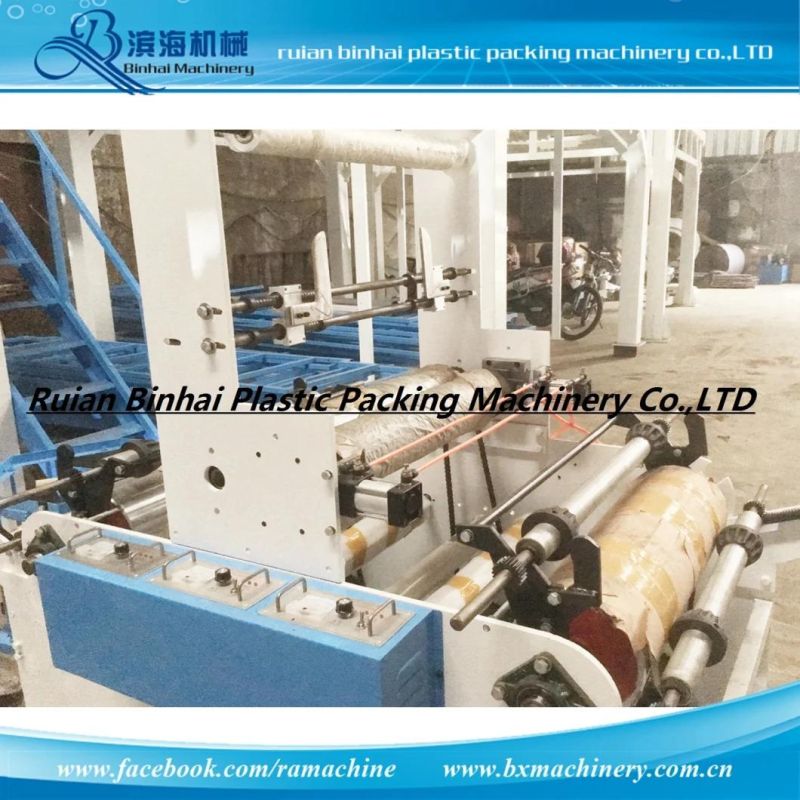

---If your film is Single Layer For Side Seal bags, suggest Double Winders+Slitter. (Optional )
-- If Your Film need Printing , need Corona treatment . (Optional)

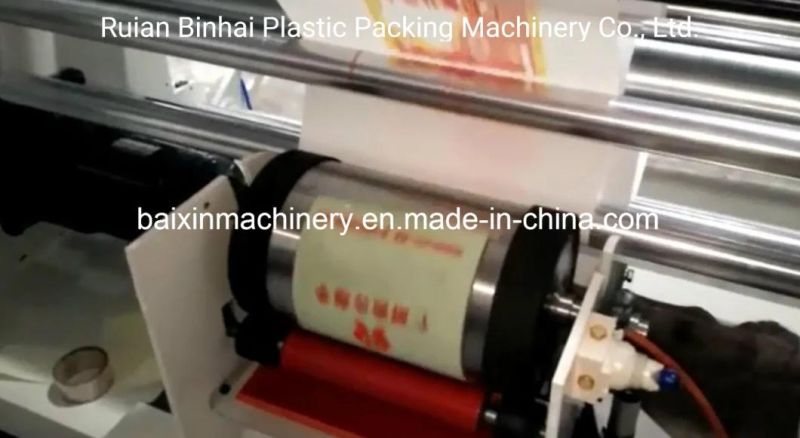

 This is mini printer we installed on Film blowing machine.

  ---Single Color
----- 300mm














Welcome to click learn more information from AMY  Yu , thanks
