• Model NO.：GJB
• Name：Tomato Juice Milk Yogurt Homogenizer with High Pr
• Capacity：500L,H--10000L,H
• Pressure：250bar to 700bar
• Homogenizer Life Time：More Than 10years
• Material：304 , 316
• Homogenizer Spare Parts：Provided

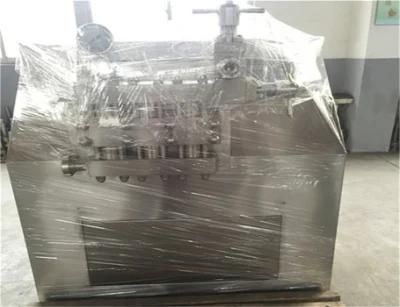

• Packing：Plywood Box
• Homogenizer Electricity：220V,380V,415V,440V
• Certificated：CSA
• Delivery：Within 10 Days
• Motor：ABB ,Siemens ,China Brand
• MOQ：1set
• Power of Motor：5-15
• Usage：Food Industry
• Spare Parts：Available
• Transport Package：Standard Wooden Box
• Specification：Based on special order
• Trademark：KAIQUAN
• Origin：Shanghai, China
• HS Code：847982009
• Production Capacity：100 Units,Month

Basic Info.

Model NO. GJB Name Tomato Juice Milk Yogurt Homogenizer with High Pr Capacity 500L/H--10000L/H Pressure 250bar to 700bar Homogenizer Life Time More Than 10years Material 304 / 316 Homogenizer Spare Parts Provided Packing Plywood Box Homogenizer Electricity 220V,380V,415V,440V Certificated CSA Delivery Within 10 Days Motor ABB ,Siemens ,China Brand MOQ 1set Power of Motor 5-15 Usage Food Industry Spare Parts Available Transport Package Standard Wooden Box Specification Based on special order Trademark KAIQUAN Origin Shanghai, China HS Code 847982009 Production Capacity 100 Units/Month

Product Description

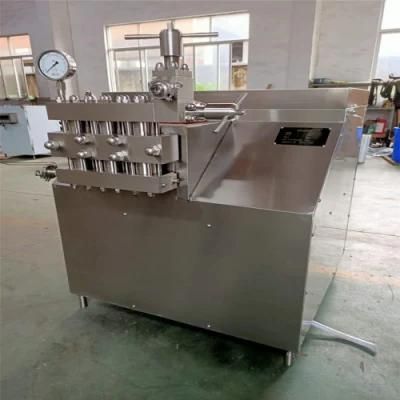

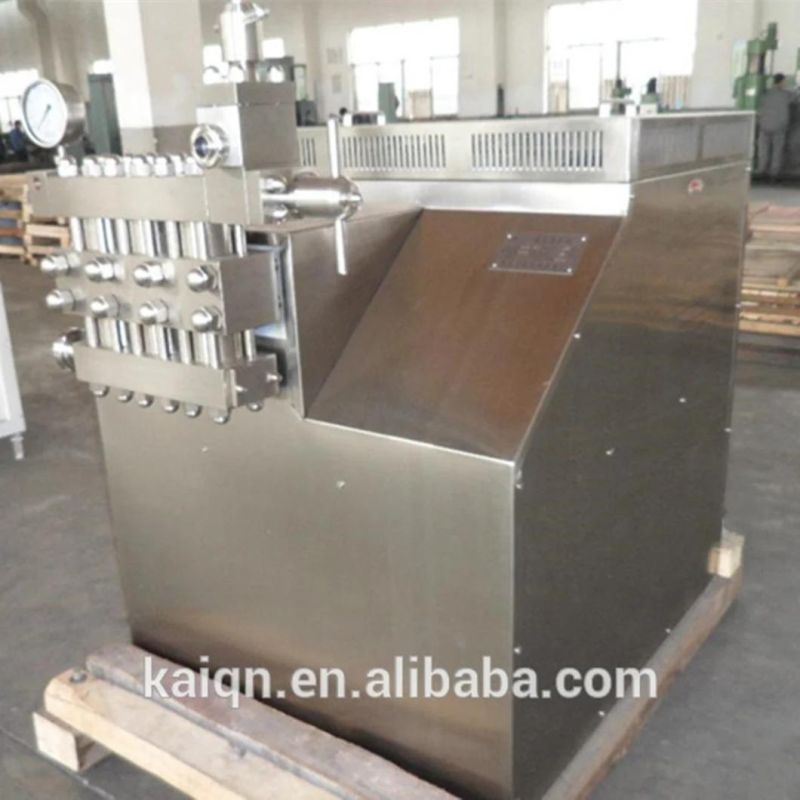

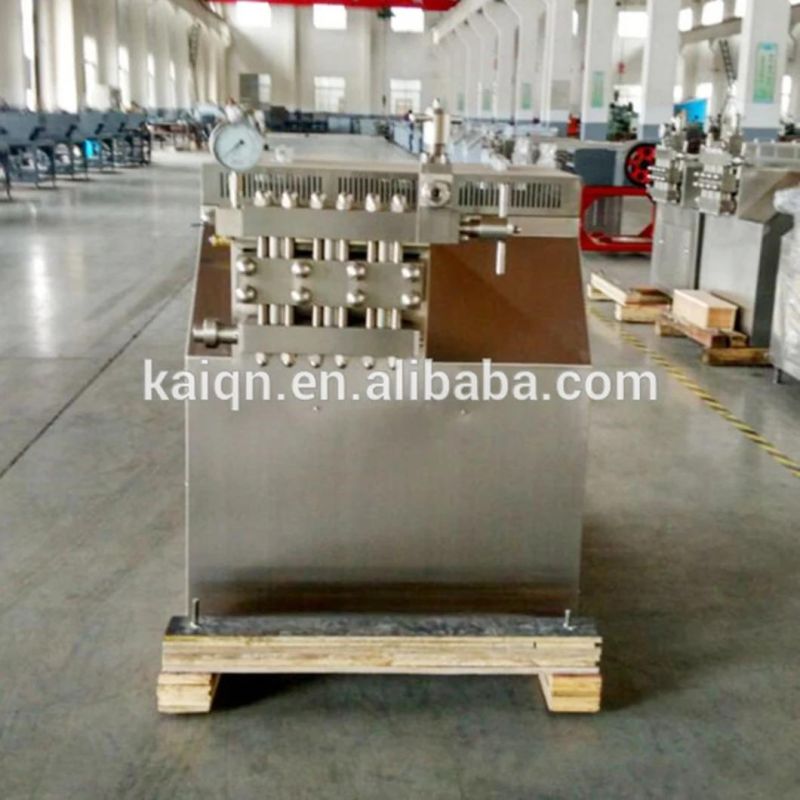

Tomato Juice Milk Yogurt Homogenizer With High Pressure






Model No. Technical parameter	KQ0.5-25	KQ1-25	KQ1.5-25	KQ2-25	KQ2.5-25	GJB3000-25 KQ3-25	KQ5-25
Rated pressure(MPa)	25	25	25	25	25	25	25
Rated flow ( Liters/H )	500	1000	1500	2000	2500	3000	5000
Medium temperature(C)	≤85	≤85	≤85	≤85	≤85	≤85	≤85
Feeding pipe diameter(mm)	25	25	25	25	25	32	40
Discharge pipe diameter(mm)	15	15	20	20	20	20	25
Power of motor(Kw)	5.5	7.5	11	15	18.5	22	45
Volt and Electricity Flow	220V,60HZ,3PH	380V,50HZ	380V,50HZ	380V,50HZ	220V,60HZ,3PH	380V,50HZ	380V,50HZ
Outline dimension (m) Length * width * height	1.16×0.9×1.24	1.16×0.9×1.24	1.16×0.9×1.24	1.4×1.1×1.42	1.4×1.1×1.42	1.4×1.1×1.42	2.2×1.45×1.1
Weight(Tons)	0.4	0.5	1.25	1.25	1.25	1.25	1.7

High pressure homogenization is a standard industrial process for dairy products, to improve their stability and shelf life

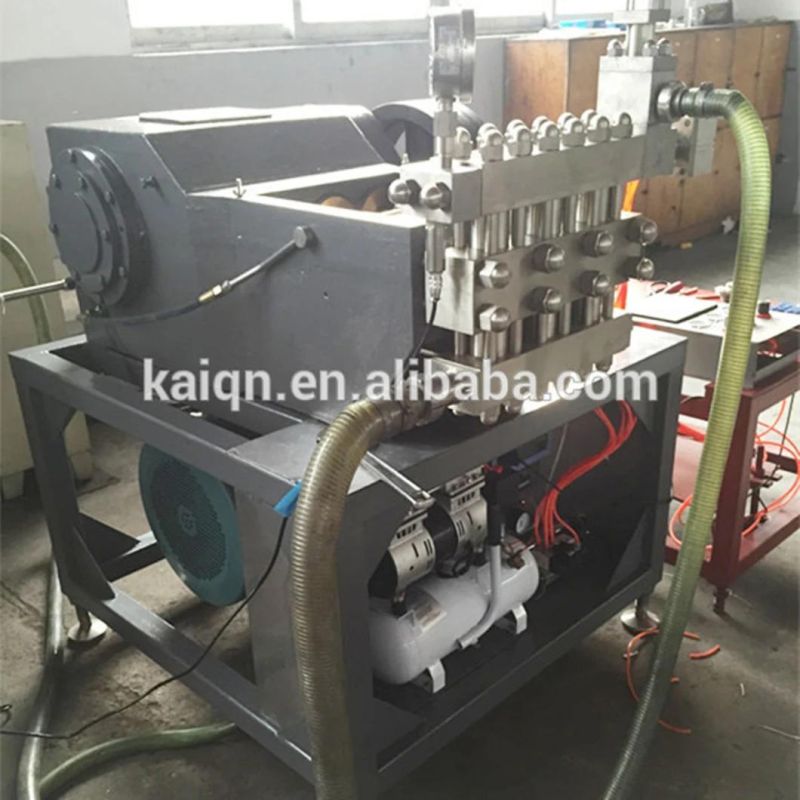

Series is the kind of equipment which can homogenize the liquid material and make it become high-pressure spray. The high pressure homogenizer pump reciprocates the pump position, high press the liquid, fully mixed and refined the material.
The high pressure homogenizer can use to homogenize the dairy product material in high pressure, refine the fat globule, prevent or decrease the stratifying of the liquid material; Make the product much more nicety, to prove the quality of the product.
The high pressure homogenizer pump also the important equipment of the powder manufacture. (Such as pharmaceutical industry, chemical industry, etc. )Food Sanitary High Pressure Milk Homogenizer
Tomato Juice Milk Yogurt Homogenizer With High Pressure .
