Basic Info.

Model NO. mengkwa Certification CE, ISO9001:2008 Customized Customized Condition New Name PE PA PVC EVA Plastic Single Wall Corrugated Pipe Speed Middle Speed; High Speed Plastic Material PE/PP/PA/PVC/EVA Color Customized Size Customized Delivery Detail 45-75days Guarantee One Year After Installation Service Whole Life Time Installation Our Support Transport Package Wood Case Specification CE, ISO Trademark MKW Origin Zhejiang, China HS Code 8477209000 Production Capacity 15sets/ Month

Packaging & Delivery

Package size per unit product 3000.00cm * 1500.00cm * 1800.00cm Gross weight per unit product 3000.000kg

Product Description

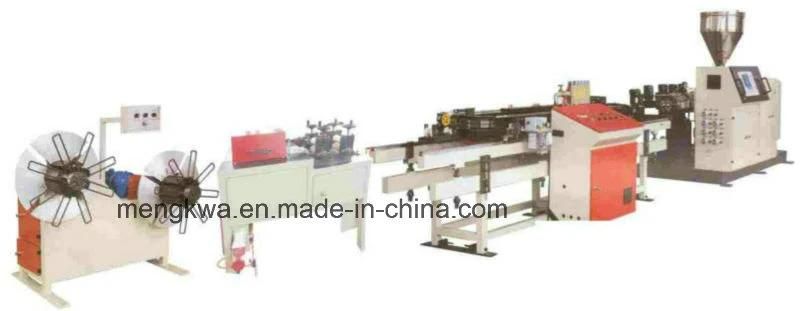

PE/PP/PA/PVC/EVA Single Wall Corrugated Pipe Extrusion Line

Application and Feature:
By absorbing foreign advanced technology,this single wall corrugated pipe extrusion line is developed with ideal structure, running stabillity and fast forming speed. The pipe extrusion line speed can reach 25m/min. For the small pipe size, the single wall corrugated pipe extrusion line can run one mould with two pipe to lower the production cost. It is widely used in communication, electric wire & cable laying and agriculture irrigation.

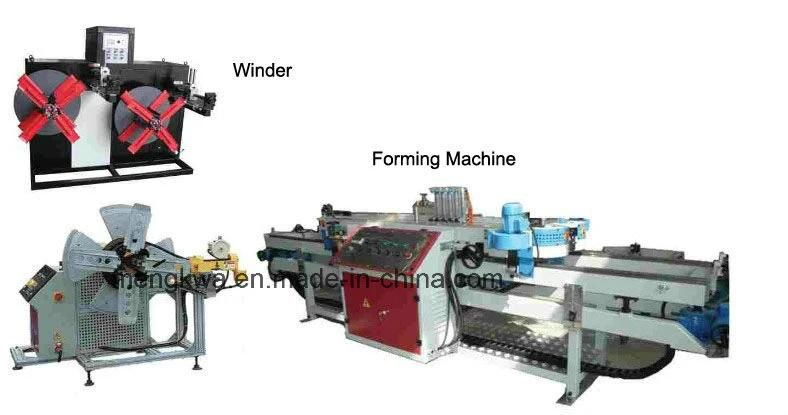

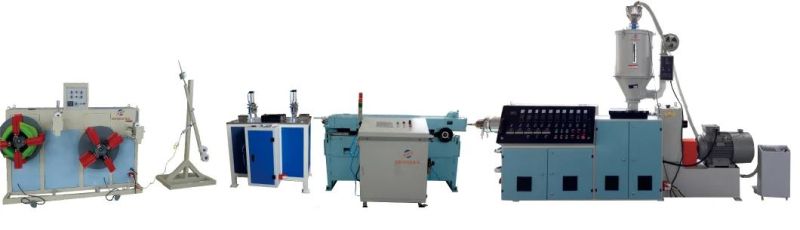

Machine: extruder--forming machine--haul off unit, winder

Pipe Diameter(mm)	11-50
Forming Machine Motor Power(kw)	5.5
Max.Forming Speed(m/min)	25
Application Material	PVC, PE,PP
