Main Technical Variables:


Model	SJ-45×3/FM1000	SJ-50×3/FM1200	SJ-55×3/FM1500	SJ-60×3/FM2000	SJ-65×3/FM2500
Screw diameter	Ф45mm	Ф50mm	Ф55mm	Ф60mm	Ф65mm
Screw ratio L/D	30:1	30:1	30:1	30:1	30:1
Screw speed	15-120r/min	15-120r/min	15-120r/min	15-120r/min	15-120r/min
Main motor power	11kw×3	15kw×3	18.5kw×3	22kw×3	30kw×3
Extrusion output(single)	100kg/h	120kg/h	150kg/h	180kg/h	200kg/h
Range of die( THE DIE HEAD CAN BE SPECIAL ORDERED)	Ф200/ Ф250	Ф200/ Ф250	Ф250/ Ф300	Ф500	Ф600
Single-sided thickness of film	0.01-0.10mm	0.01-0.10mm	0.01-0.10mm	0.03-0.10mm	0.03-0.10mm
Max. Folding width of film	1000mm	1200mm	1500mm	2000mm	2500mm
Electric total capacity	76kw	88kw	102kw	130kw	156kw
Overall dimension	6600×4100×500 0mm	6800×4300×600 0mm	7000×4800×680 0mm	7800×5300×860 0mm	8600×6200×96 00mm
Weight of machine	4.2T	5.3T	6.2T	8.6T	10.6T

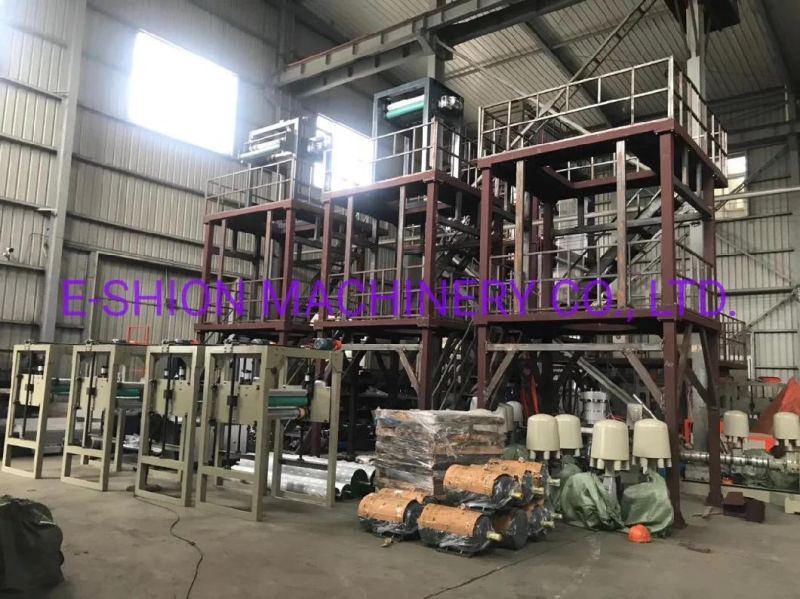

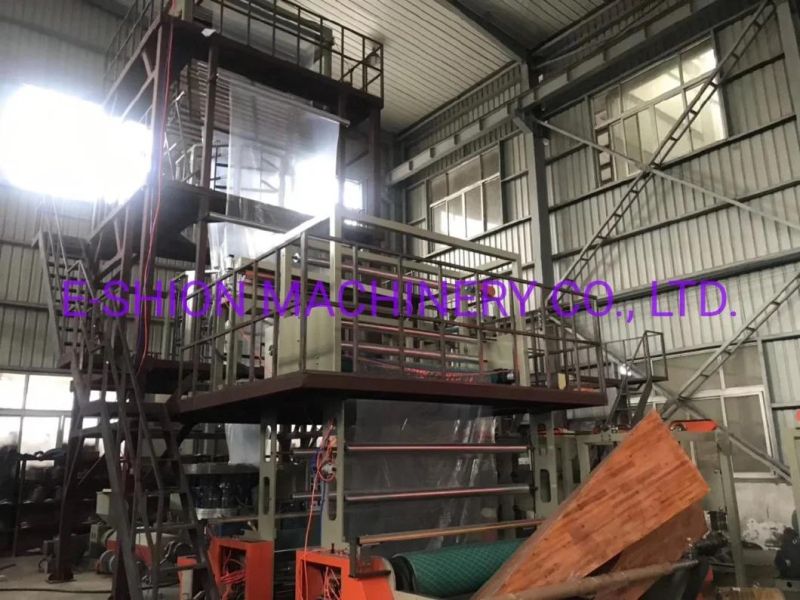

Machine in our customer's workshop:

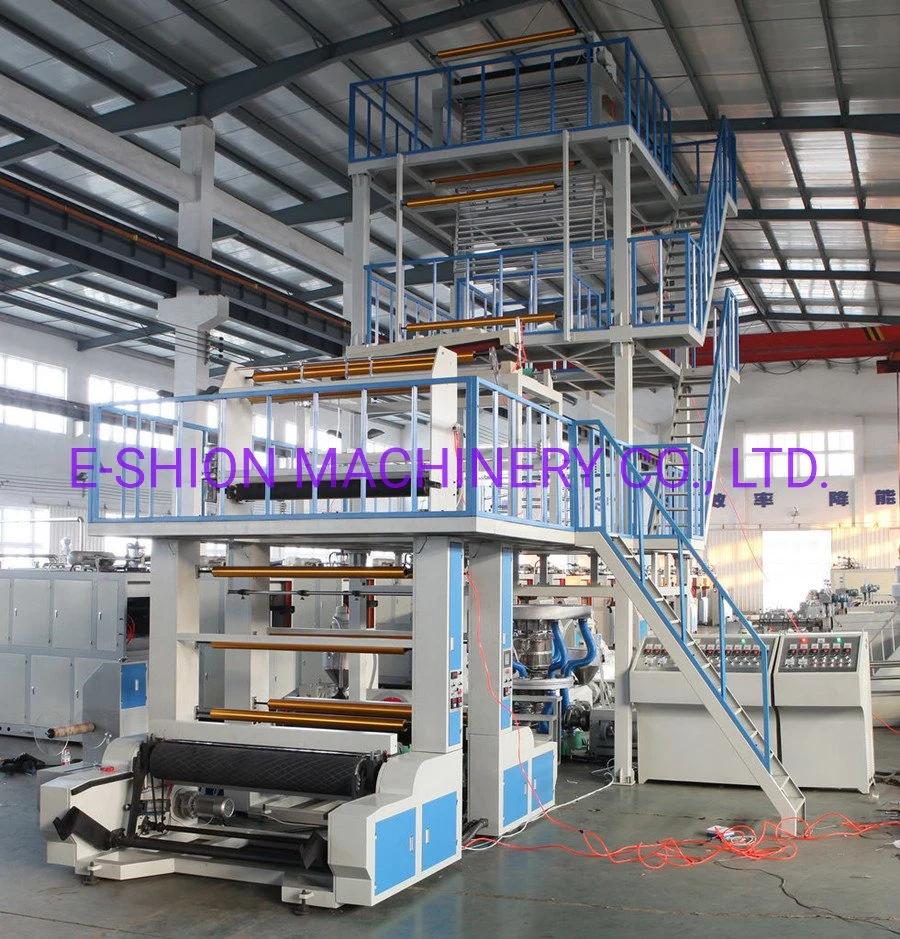

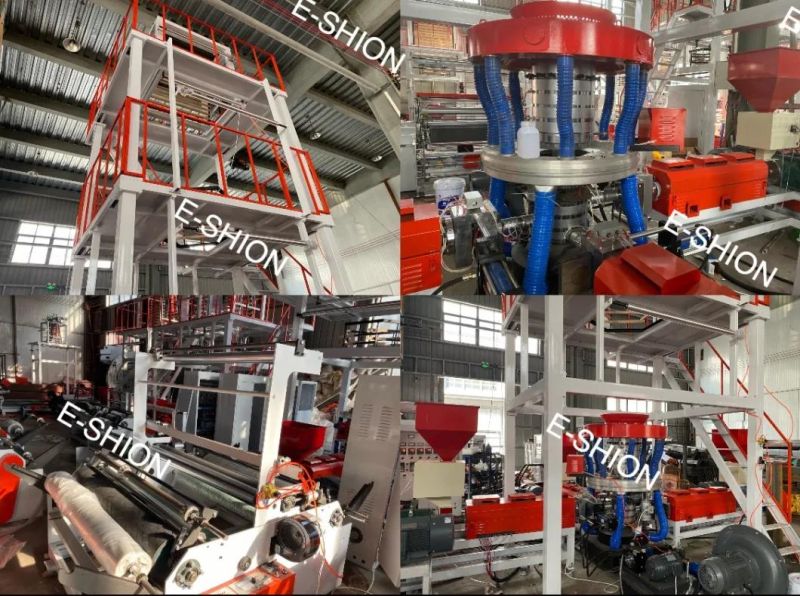

Machines in our workshop :
