Model NO. WS005 Gurantee 1 Year Electric Parts ABB/Omron/Schneider Transport Package Seaworthy Packing Specification 16-800mm Trademark WINSOAR Origin China HS Code 8477800000 Production Capacity 500sets/Year

Product Description

Automatic PVC/PPR/PP Pipe Socketing Machine


Description of plastic pipe automatic belling machine:

This machine is specially designed for the PP/PVC sewage pipes, water supply pipes, electric cables pipes, PVC conduits automatic belling with "U", "R" and square styles. The machine is designed by all automatic control from pipes sending to working tables, pipes heating, pipes belling and pipes discharge. All this works controlled by PLC control system and the heating time, belling processing can be adjusted to detail conditions of the formulation, and factory condition.

Technical parameters of plastic pipe automatic belling machine:

Item/Model SGK-50S SGK-160 SGK-250 SGK-315 SGK-400 SGK-630 Belling Range 16-50mm 50-160mm 110-250mm 200-315mm 200-400mm 315-630mm Belling type U U/R/Square U/R/Square U/R/Square U/R/Square U/R Oven quantity 2pcs 1 or 2 1 or 2 1 or 2 1 or 2 1 or 2 Heating power 2kw 8.0kw 9.5kw 16.5kw 21.6kw 28.8kw Total power 5kw 13.2kw  17.5kw  26kw  31.2kw  42kw  Pipe length 3-5m 3-6m 3-6m 3-6m 3-6m 3-6m Cooling method Air Cooling Water Cooling Water Cooling Water Cooling Water Cooling Water Cooling Speed 200-400pcs/h 30-50pcs/hour 18-30pcs/hour 12-20pcs/hour 10-15pcs/hour 6-12pcs/hour Working mode Online or offline Online or offline Online or offline Online or offline Online or offline Online or offline

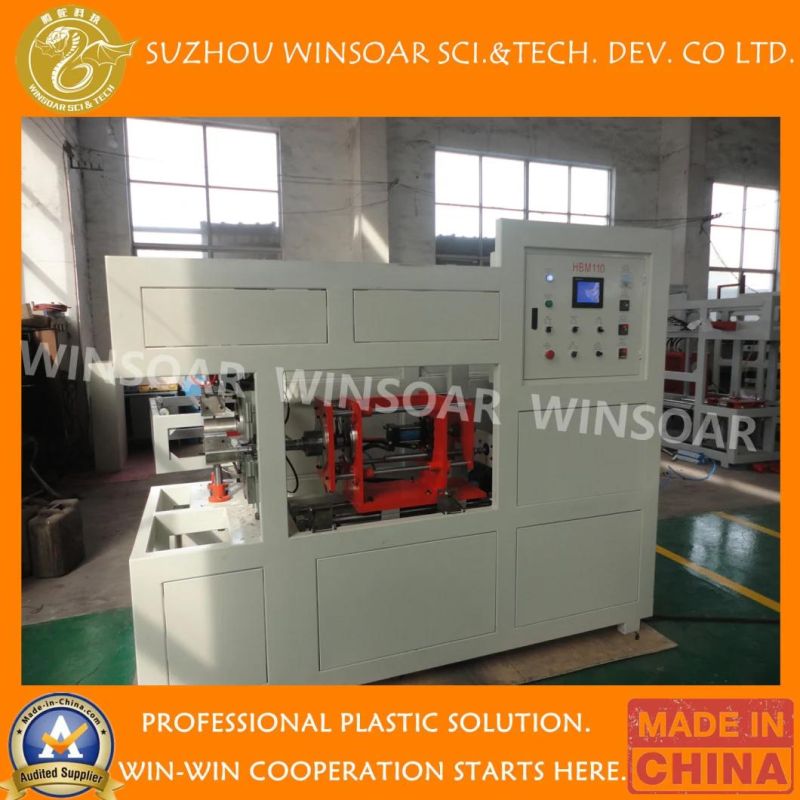

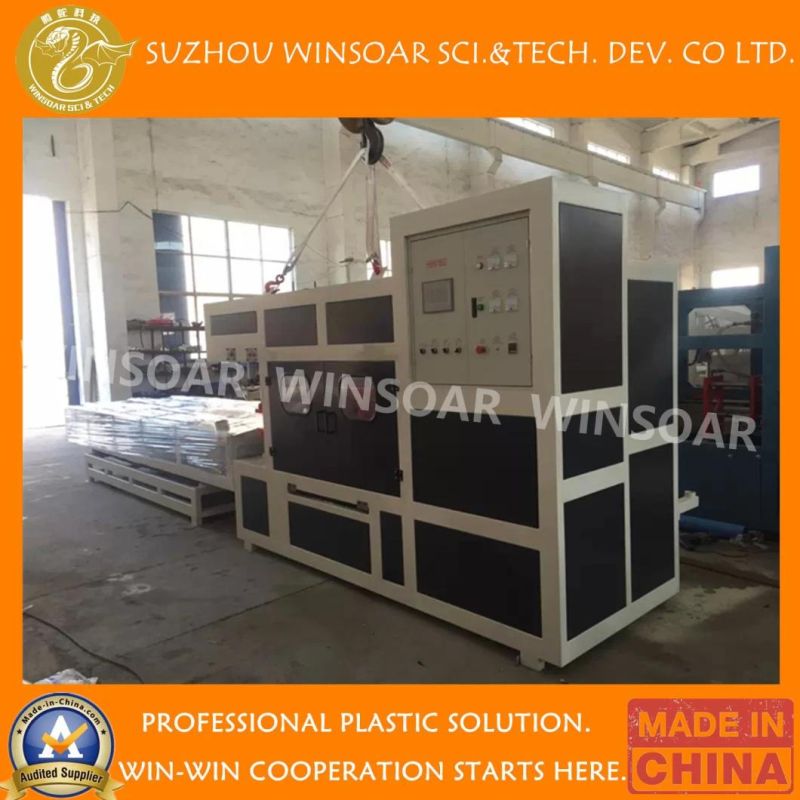

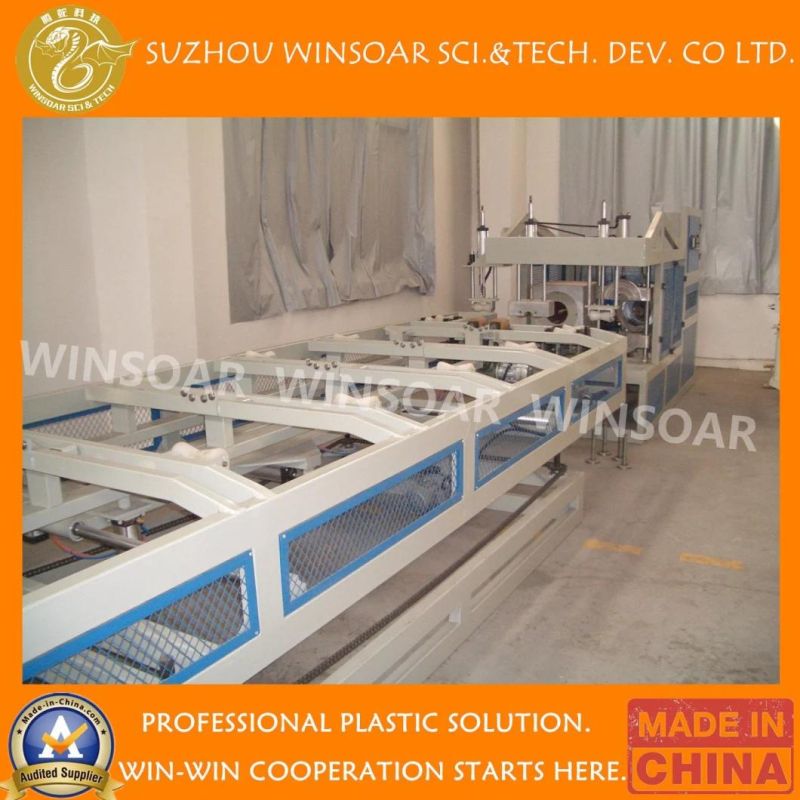

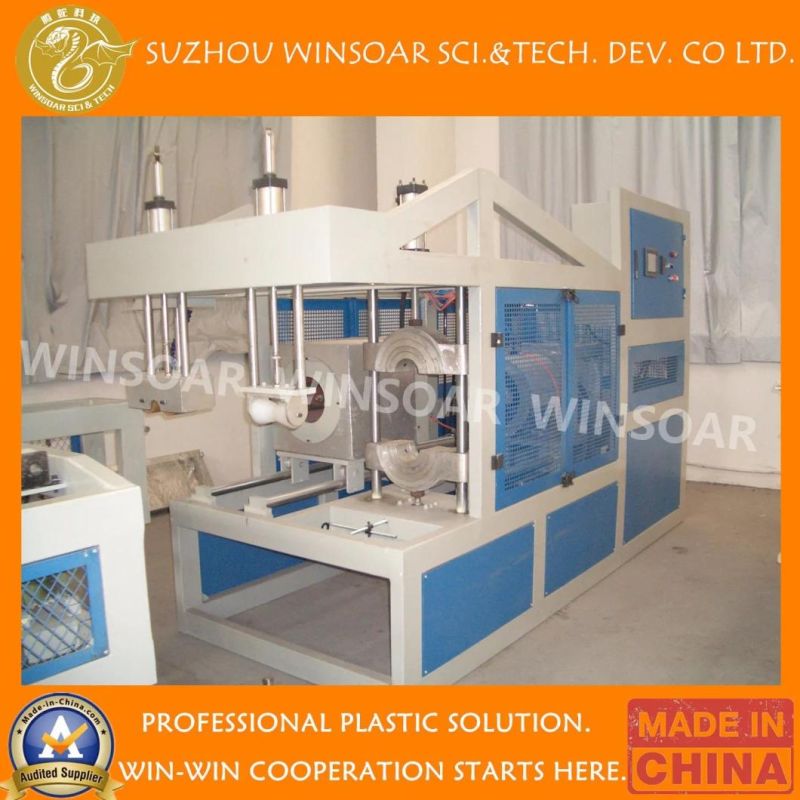

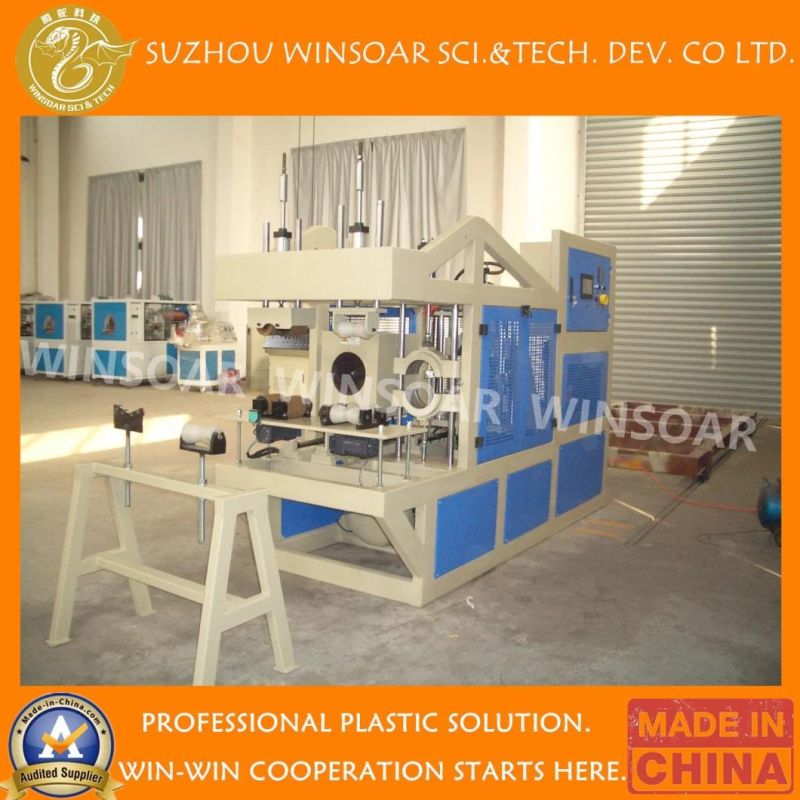

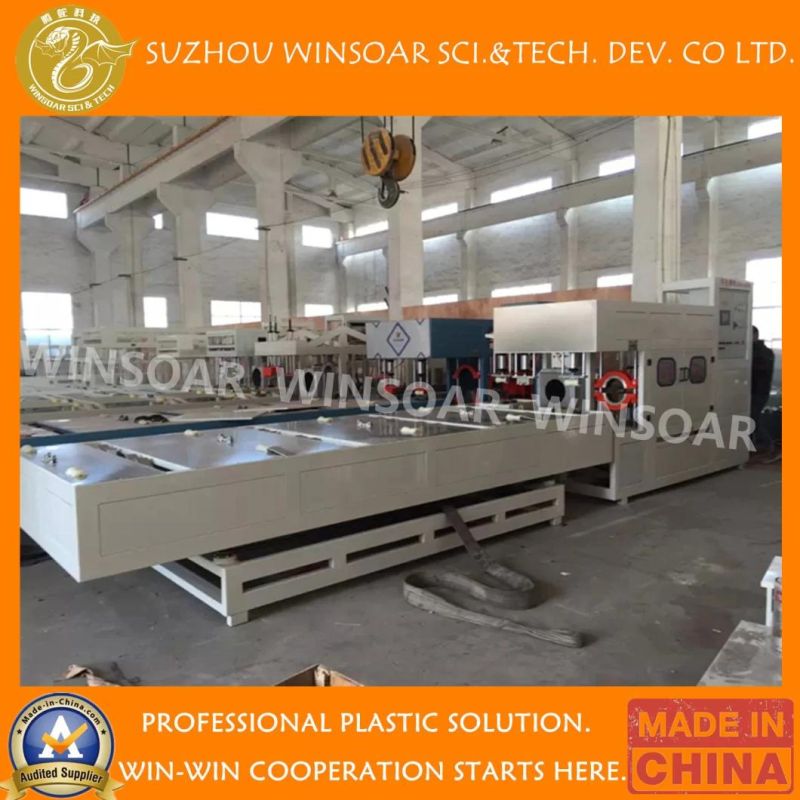

Pictures of plastic pipe automatic belling machine:



Delivery and shipment:
