Basic Info.

Model NO. SJ-55/MB800 Engagement System Non-Intermeshing Screw Channel Structure Deep Screw Exhaust Don′t Exhaust Automation Semi-Automatic Computerized Computerized Film Width Produced 100-600mm Screw Diameter 50mm Screw L:D 28:1 Film Thickness Produced 0.006-0.10mm Max Output 50kgs/Hour Die-Head Size 60&100mm Main Motor Simens Motor, or China Brand Made in Shanghai Inverter Delta or LG, or China Brand Made in Shanghai Temperature Controller Omron Oror China Brand Made in Yuyao Optional Rotary Head Transport Package Wooden Plate or Wooden Case Specification CE Trademark RuiGao Origin Ruian Zhejiang China HS Code 847730900 Production Capacity 50 Sets/Month

Product Description

Taiwan Quality High Spedd Film Extrusion Machine



this film blowing machine,also name as film extruder,its extruder, cylinder and screw rods are made of quality alloy steel that have been notarized and processed
in a precision way. Hence it is hard, durable in corrosion resistance. The specially-designed screw is quality in plasticizing, which helps increase the production capacity. It is applied to blowing the plastic films like
low density polygene (LDPE), high density polygene(HDPE) and linear low density polygene (LLDPE).
It is widely applied to producing the packing bags for foodstuff, clothing, rubbish bag and vest ones.

Machine Advantages
1, We use stronger steel plate for machine body, which make machine more stable
2, Screw and barrel is nitrigened by 72 hours. 38 chromium materials,  it is very hard.  Copied from Taiwan
3, Hard surface gearbox, the life can be more 5 years.
4, Motor with CE standard, more 10 years life, Siemens Brand,or or China brand made in Shanghai
5, Electric parts is CHINT, best supplier in China.
6, Easy to operate and one worker can run 3 sets
7,  Temperautre Controller:  Omron Brand,or China brand made in yuyao,
8,  Inverter:  LG Brand ,or China brand made in Shanghai
9,  Ceramic Heater: Heating faster and Keep warm longer

Machine Parameters

Model	SJ-50/MB600	SJ-55/MB800	SJ-60/MB1000	SJ-65/MB1200
Screw Diameter (mm)	Φ50	Φ55	Φ60	Φ65
Screw Length (L/D)	30:1	30:1	30:1	30:1
Film Width(mm)	100-600	200-800	300-1000	400-1200
Film Thickness(mm)	0.006-0.10	0.006-0.10	0.006-0.10	0.006-0.10
Max.Extrusion Output (kg/h)	50	65	70	75
Die Size(mm)	Φ60/100	Φ80/120	Φ100/150	Φ100/200
Cylinder Cooling (Kw)	0.25	0.25X1	0.25X2	0.25X2
Driving Motor(kw)	15	18.5	22	30
Total power(kw)	28	36	42	48
Cover Dimension(m)	5.0*2.1*3.8	5.0*2.3*4	5.5*3.3*4.2	5.8*3.6*4.5
Weight of Machine(kg)	2000kg	2500	2800	3000

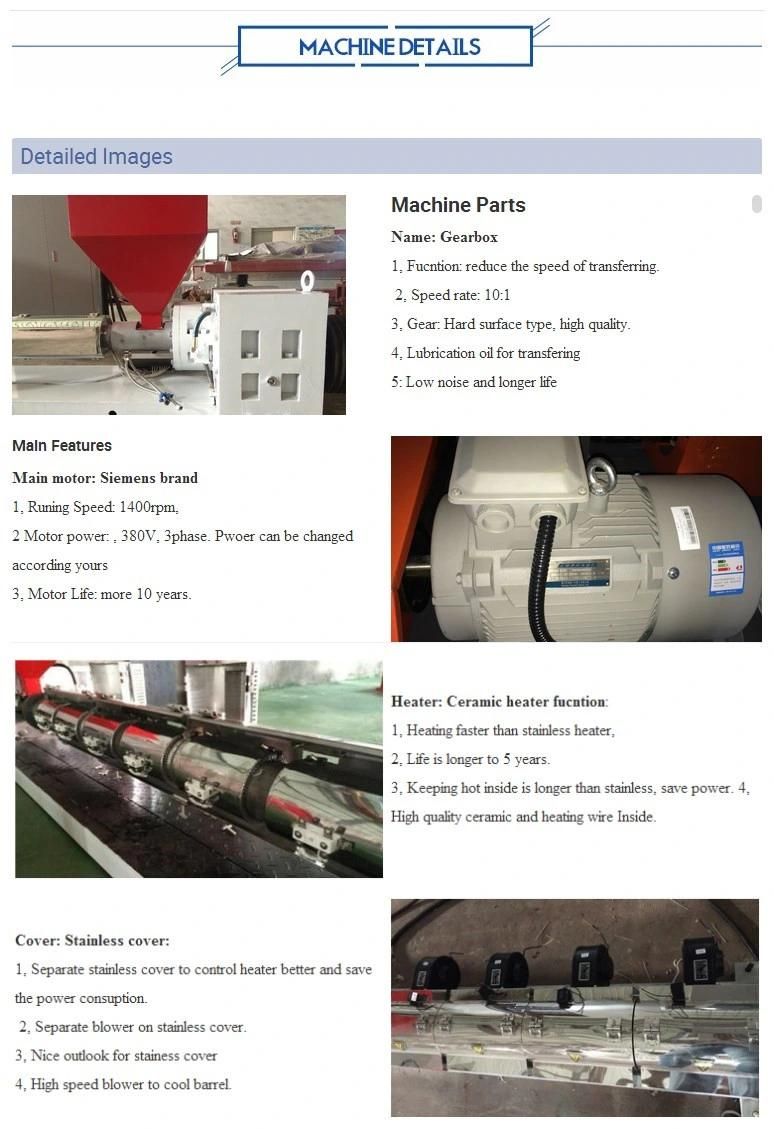

Machine Details






1,Q: Your factory is trading company or factory?
A: We are factory. We have more 2100 square meter workshop and 23 workers containing the 2 installment engineer and 1 electric engineer.
We are Factory, so we have cost advantage than others

2, Q: How do your company control the machine quality?
A: First we control the raw materials quality.
Second, we control the quality of machine when we are processing.
Third, Our installment engineer will test machine.

3, Q: How about payment term, payment safety and delivery time?
A: We accept 30% deposit, balance before shipment. And Irrevocable L/C at sight.
Delivery time is 20 to 30 days. It is according to order quantity.

4,Q: What is your company after sale service?
A: Our installment engineers are available. Normally it will take about 7 to 10 days for all.
Our guarantee is one year. If there is any spare parts is broken, we can send them freely to you.


Welcome to contact with us. We will provide Excellent Price and High Quality Machine.
