Model
Extruder
Width
Thickness
Capacity
S1220
SJSZ80/156
1220mm
<25mm
350KG
S1830
SJSZ92/188
1830mm
<25mm
<800KG


1>Strong and durable; Lightweight and easy to install; Not easy to scratch;
Will not rot, warp, delaminate, cup or twist;

2>Resistant to weather, shock and abrasion;

3>Salt water corrosion resistant;
Impervious to salts, insects and many chemicals, including some acids;

4>Doesn't mold; Can be worked just like wood;
Non-toxic; 100% recyclable; Fire-retardant (self-extinguishing);

5>Easy to clean; Virtually maintenance free;

Machine line details:

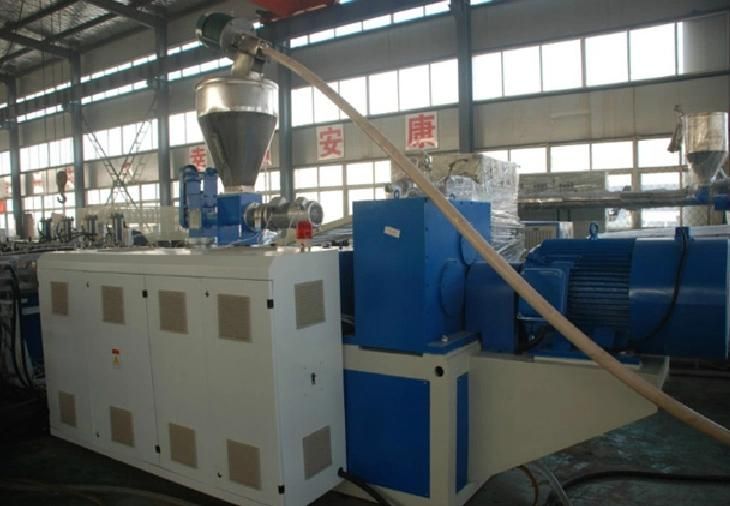

1.SJSZ 80/156 Conical twin Screw Extruder

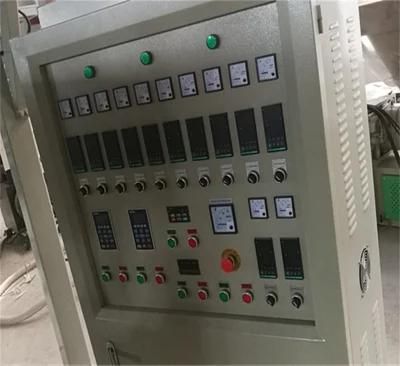

ABB frequency converter, SIEMENS contactor, OMRON Japan, Motor power:75KW

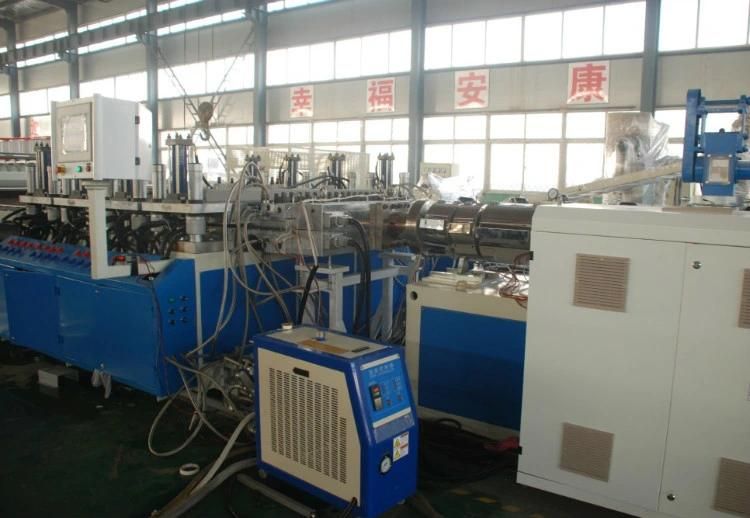

2.Calibration unit
calibration plate:1500mm×500mm  4 couples



3. Cooling tank and bracket
length:6000mm
trimming knife:3 sets

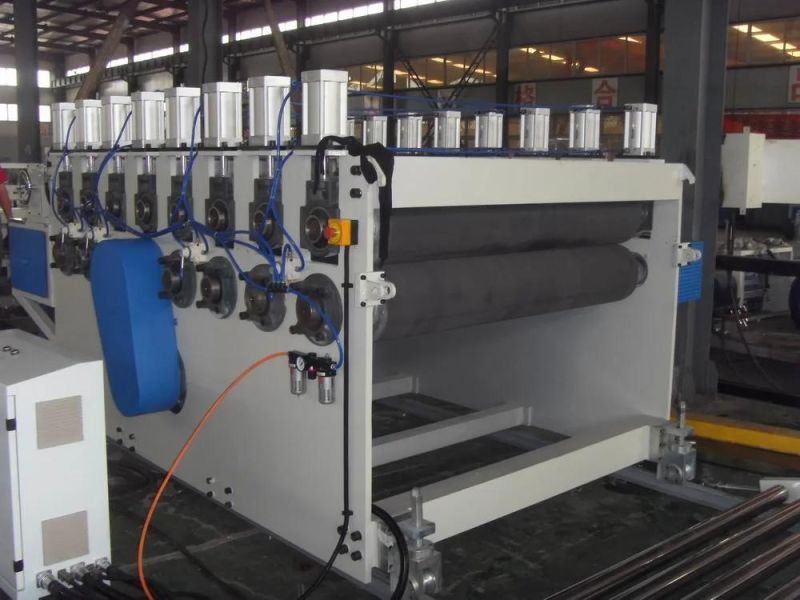

4. Haul-off unit
8 couples cylinder clamping and loosening

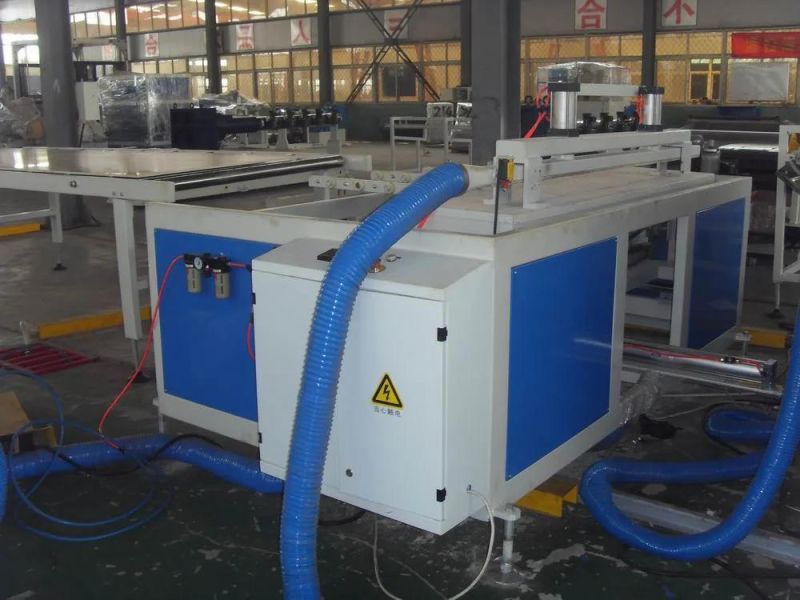

5. Cutting unit

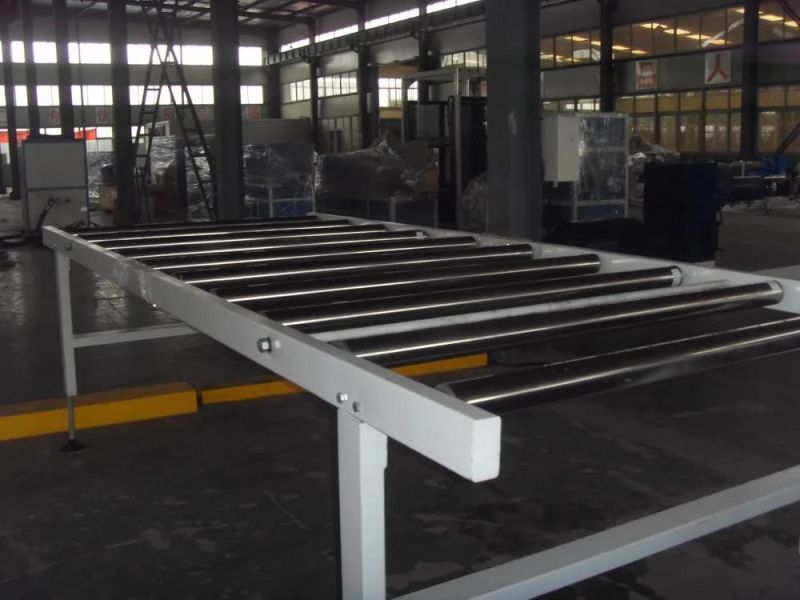

6. Stacker

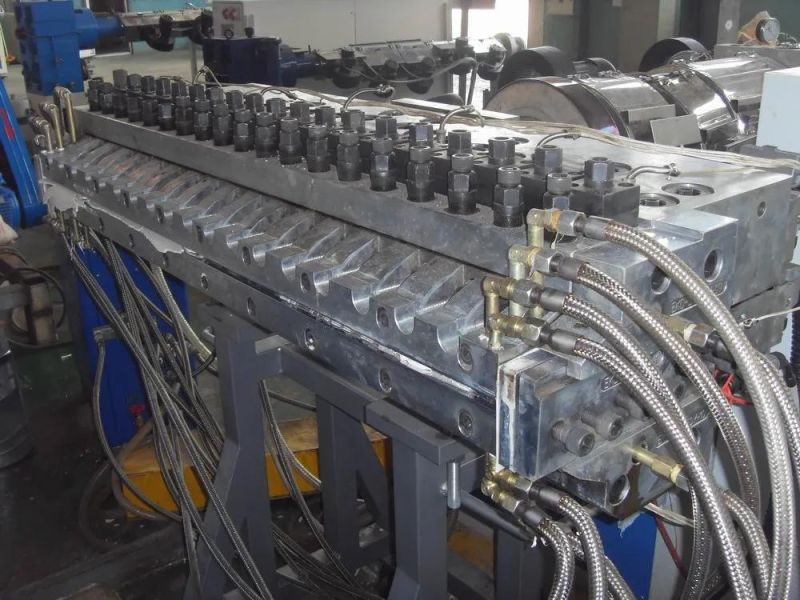

 7. Mould (T-Die )

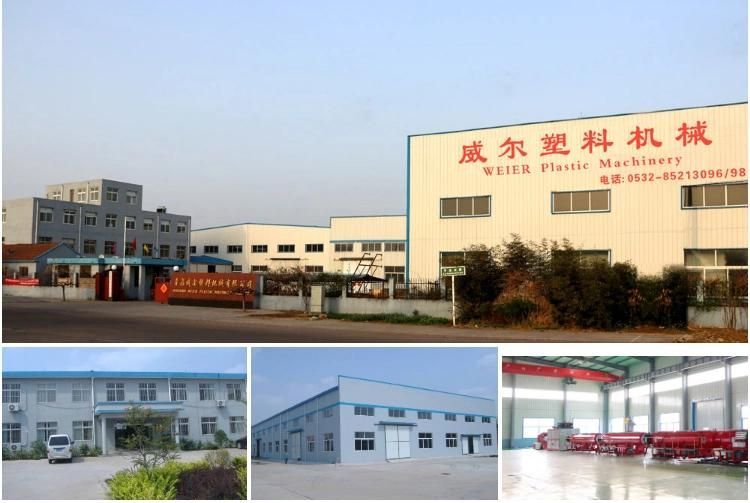

Company profile

Qingdao Weier Plastic Machinery Co., Ltd. is engaged in macromolecule science and producing plastic machinery. Our production lines, such as aluminum plastic composite pipe unit, PVC foam pipe unit, plastic profile, board and sheet units, HDPE gas pipe unit, and PP-R (PEX) pipe unit, are characterized by stable performance and advanced technology which are welcomed by our customers. The new developed PVC plywood board unit, plywood decorative strip and foamed sheet unit, macromolecule paint free board unit and PET strapping band unit are in leading place in China. The new developed TPU high pressure oil transportation and TPU moving oil warehouse equipment in war industry have been put into production, which has been approved by authority in China.
Our products have been exported to many countries in the Middle East, Africa, and Southeast Asia.
