• Model NO.：MAN-1390
• Laser Classification：Fluid Laser
• Engraving Method：Vector Engraving
• Working Area：1300*900mm
• Laser Power：60W ,80W ,100W, 150W ,180W
• Engraving Speed：0-64000mm,Min
• Cutting Speed：0-36000mm,Min
• Preposition Accuracy：0.1mm
• Cutting Platform：Blade or Honeycomb Table
• Driving System：Stepper Motors
• Power Supply：AC220V 50Hz
• Warranty：2 Years
• Certification：Ce FDA ISO
• Transport Package：Wooden Box
• Specification：2000*1600*1250mm
• Trademark：CNMANLASER
• Origin：Shandong
• HS Code：8456110090
• Production Capacity：500 Set,Month

Basic Info.

Model NO. MAN-1390 Laser Classification Fluid Laser Engraving Method Vector Engraving Working Area 1300*900mm Laser Power 60W /80W /100W/ 150W /180W Engraving Speed 0-64000mm/Min Cutting Speed 0-36000mm/Min Preposition Accuracy 0.1mm Cutting Platform Blade or Honeycomb Table Driving System Stepper Motors Power Supply AC220V 50Hz Warranty 2 Years Certification Ce FDA ISO Transport Package Wooden Box Specification 2000*1600*1250mm Trademark CNMANLASER Origin Shandong HS Code 8456110090 Production Capacity 500 Set/Month

Product Description

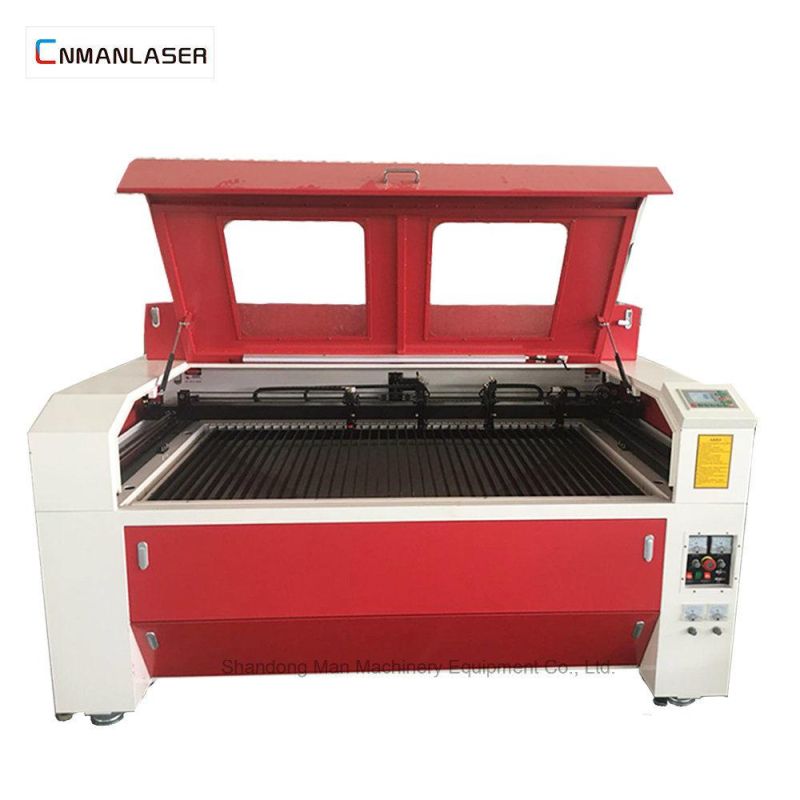

Table top glass bottle laser engraving machine with rotary devices


  PRODUCTION :



Main specification:

1.use Taiwan linear guide rail(HIWIN)

2.3 reflected mirrors and 1 focus lens

3.Honeycomb

4.Exhaust fan

5.Air compressor

6.industry chiller(S&A ,CW5200)

7.Stepper motor*2

8.CNC control system

9.CX Cutting System

  TECHNICAL  PARAMETER :


Model	MAN-1390
Working area	1300*900mm
Laser power	60w/80w/100w/Option
Laser type	Sealed CO2 laser tube
Cooling type	Water cooling
Engraving  speed	0-60000mm/min
Cutting speed	0-30000mm/min
Laser output control	0-100% set by software
Min engraving speed	Chinese: 2.0mm*2.0mm, English letter: 1.0mm*1.0mm
Locating precision	+0.01mm
Controlling software:	DSP control system
Graphic format supported	DST PLT BMP DXF DWG AI LAS,etc
Compatible software	TAJIMA,CORELDRAW,PHOTOSHOP,AUTOCAD,etc
Color separation	Yes
Drive system	High-precision stepper motor
Auxiliary equipments	Exhaust fan and air exhaust pipe
power supply	AC110V-220V+10%,50HZ/60HZ
Working environment	Temperature:0-45, Humidity 5-95%(No condensate water)
Optional parts	up&down table, Auto-focus device, rotary device etc

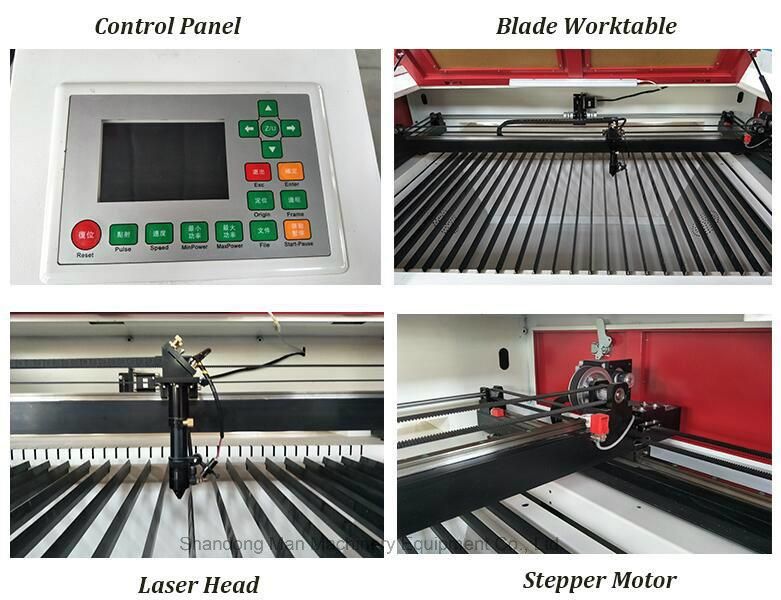

  DETAILS  IMAGES :

Feature :


1) Working Area:1300*900mm,this can be customized as your requirements

2) Laser power:60w 80w 100w 150w - you can choose RECI laser tube,working hours:8000-10000 hours

3) DSP control system - with only a few buttons very easy to use

4) Knife worktable - suitable for hard materials such as wood,acrylic,you also can choose honey comb table use for soft materials such as

leather,fabric etc.

5) High resolution laser head.-good quality and long lifetime

6) Water pump-used for cooling laser tube to protect it has long life.

7) Air pump/Compressor.-cooling the laser head to avoid the materials being burned.

8) Exhaust fan - Blow away the smoke

9) USB cable-To connect the machine and computer.

10) Tool box-Included the CD,User manual,and some wrenches for your work.

Advantage :

1. The super high photo-electric conversion efficiency can be up to about 30%.

So the machine runs with the lowest power consumption compared to other laser cutting machines under output power. The cutting lost is the lowest.

2. With laser beam of good quality from double-clad fiber, the focus spot is super fine, and the cutting seam is very smooth.

Then the efficiency can be higher, and the quality is better.

3. The light path is totally composed of fiber laser and fiber laser units, which are combined together based on cable splicing technology.

And the whole light path is enclosed in fiber laser wave guide.

4. No laser working gas and can start cutting just by blowing air.

5. The efficiency is very stable and reliable, and you have no need to adjust the light path. So it is easy to operate and maintain the machine.

6. The machine costs little water and energy. And the machine requires no gas. So the running cost is lower.

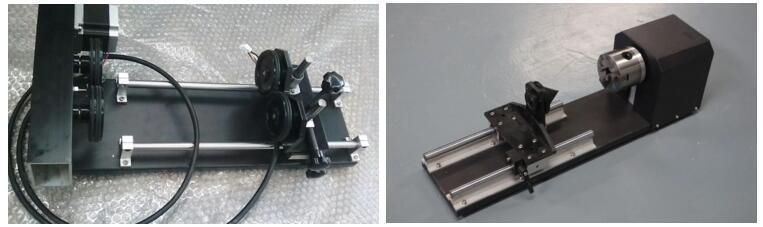

Optional Laser Parts With the machine  :



SAMPLE  SHOW :

 Laser Engraver Cutter   -----Applicable Materials

wood, bamboo, jade, marble , organic glass ,crystal, plastic, garments , paper, leather, penelope, rubber, ceramic,

glass and other nonmetal materials .

 Laser Engraver Cutter  ------Applicable Industry

advertisement, arts and crafts, leather, toys, garments,

model, building upholster, computerized  embroidery and clipping, packaging and paper industry

laser cutting machine acrylic samples



 PACKAGING &  SHIPPING  :

Packages:

Firstly our worker will make sure your machine clean before package, then add Stretchy film for the whole machine and spare parts for sweet

protection, at last we will make export standard strong plywood case package according to your needs.

Transport:

We will provide various ways of transportation.

1 By sea  / 2 By air  / 3 By train  / 4 By car



CERTIFICATION  :


FAQ  :

Q1.How do you get the best price ?

1)Please tell me what is material that you want to cut or engrave

2)what is the MAX size of carved material

Then I will recommand the most suitable model and the best price for you.

Q2.How to Operate?

1) it's really easy to operate.

2). Video will be sent to you. After you watch videos you can install this kind of machine by yourself.

3). Software! We use CorelDraw 9 or 12 to draw pattern, if you know how to use one of them , it would be great! If you did not know!

Welcome to our class, we will show you how to draw it!

4). Hardware! Our machine is steady! It will work after 3 steps:

a. Install laser tube

b. Install water chiller

c. Power on

After trying one or two times, we are sure that you will agree with us, it is a piece of cake!

Q3.How Do I Know That I Have All The Goods I Ordered Before The Shipment?

Pictures will be sent to our clients for confirmation before the shipment.

Q4.How can I get Machine's spare parts?

There are two methods. Spare Parts ordered together with the machine, this is the safest way to transport.

The other way is you can inform us when you need to replace the consumables, we will send them to you within 24 working hours.

Q5.What files is the software compatible with?

JPEG,DWG, BMP, PLT, DST, DXF,CDR,AI, etc

Q6.Your machine size is not suitable for my material size,any suggestion?

We are keen on customizing and tuning products to satisfy our clients and fitfor the competitive markets.

We have different Spindle power type,different cooling system,control system.please contact us freely,

We will make the suitable and specifical machine for you.

Q7.In case of failure during processing,What to do ?

1)Call us----our enginners are online for 24-hours,and ready to serve you.

2)Replacement of damaged parts for free---For more information,please read the warranty card.

3)The CD and operation manual----It show the most common failure in working processing and how to solve this problems.

Q8.Does your machine program run from a laptop or Desktop PC?

Both ok, as long as your operating system is windows 2000, windows 7 or XP or vista, etc.
