• Model NO.：BRW250,31.5
• Flow：200lpm
• Pressure：31.5MPa
• Plunger Diameter：50mm
• Plunger Quantity：3
• Plunger Stroke：66
• Shaft Speed：561rpm
• Motor Power：125kw
• Voltage：1140,660
• Weight：2600kgs
• Transport Package：Wooden Box
• Specification：2300x980x1040
• Trademark：YB
• Origin：China
• HS Code：8413110000
• Production Capacity：50000PCS,Year

Basic Info.

Model NO. BRW250/31.5 Flow 200lpm Pressure 31.5MPa Plunger Diameter 50mm Plunger Quantity 3 Plunger Stroke 66 Shaft Speed 561rpm Motor Power 125kw Voltage 1140/660 Weight 2600kgs Transport Package Wooden Box Specification 2300x980x1040 Trademark YB Origin China HS Code 8413110000 Production Capacity 50000PCS/Year

Product Description

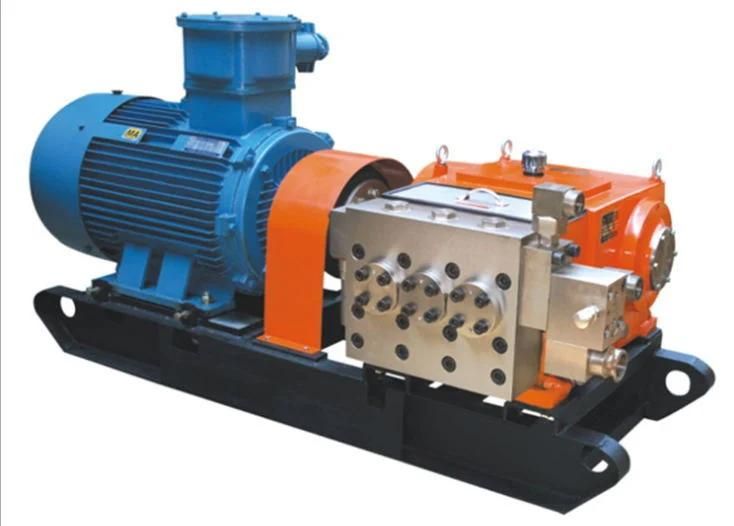

BRW250/31.5 emulsion pump







Introduction of the use of BRW250/31.5 emulsion pump

The BRW250/31.5 emulsion pump product series is based on the general crankcase and derives the corresponding pressure parameters. This series of pumps and emulsion boxes constitute the emulsion pump station. The pump station is composed of two pumps. One pump is used, one pump is spare, and two units can be used at the same time if the work is needed. It mainly provides the power source for the comprehensive mechanized coal mining hydraulic support in the medium thick coal seam, and can also be used for other hydraulic equipment on the ground working fluid.

The BRW200/31.5 series emulsion pump is a horizontal three plunger reciprocating pump, which is driven by a four pole explosion-proof motor. Through a gear reducer, it drives the rotation through a tire type coupling, drives the three curved crankshaft to rotate, and then the plunger is driven by the connecting rod and slider to make the reciprocating movement, so that the working fluid is sucked through the pump head, suction and discharge in the pump head. In this way, the electric energy can be converted into hydraulic energy and output high pressure liquid for use when the hydraulic support works.

Main technical parameters



Parameter name / pump model



BRW250/31.5



Nominal flow L/min



Two hundred



Nominal pressure MPa



Thirty-one point five



Plunger diameter mm



Fifty



Number of plunger



Three



Plunger stroke mm



Sixty-six



Crankshaft speed r/min



Five hundred and sixty-one



Motor power KW



One hundred and twenty-five



voltage



1140/660



Motor model



YBK2-315M-4



The outer size of the pump mm



2300 x 980 x 1040 (belt motor)



Pump weight Kg



Two thousand and six hundred



Volume L of supporting liquid box



One thousand and five hundred



Working medium



3~5% emulsified oil neutral aqueous solution



The outer size of the liquid box mm



3150 x 950 x 1170



RX200/16A emulsion box
