• Model NO.：MAN-50
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Laser Power：10W ,20W ,30W
• Modulation Frequency：20 kHz -180 kHz
• Scanning Speed：7000mm,S
• Making Depth：0.01 mm -0.2mm
• Marking Line Width：0.01 mm -0.1mm
• Warranty：3 Years
• Certification：Ce FDA ISO
• Transport Package：Wooden Case
• Specification：710*510*710 mm
• Trademark：CNMANLASER
• Origin：Shandong
• HS Code：8456110090
• Production Capacity：5000 Sets,Year

Basic Info.

Model NO. MAN-50 Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Laser Power 10W /20W /30W Modulation Frequency 20 kHz -180 kHz Scanning Speed 7000mm/S Making Depth 0.01 mm -0.2mm Marking Line Width 0.01 mm -0.1mm Warranty 3 Years Certification Ce FDA ISO Transport Package Wooden Case Specification 710*510*710 mm Trademark CNMANLASER Origin Shandong HS Code 8456110090 Production Capacity 5000 Sets/Year

Product Description

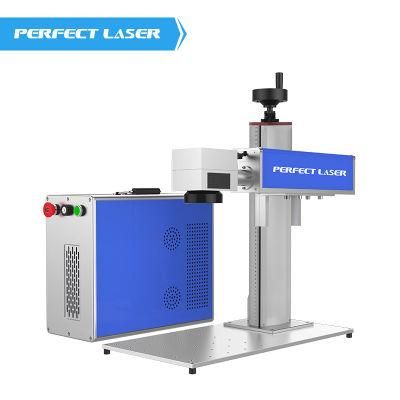

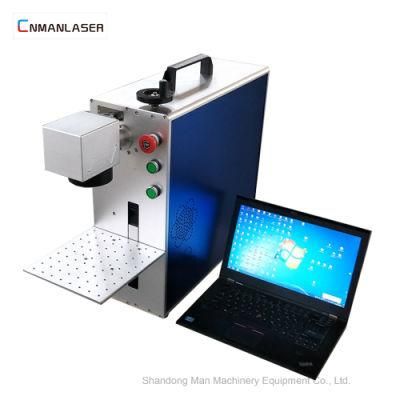

Fiber Laser Marking machine Performance Features:
1. Able to mark all metal materials and some non-metallic materials.
2. Uses Germany IPG Fiber Laser Source. The Complete enclosed laser module design with the optical fiber transmission pump light source and air cooling system, which offers dust-free protection to the laser system. This greatly reduces the failure rate and results in stable laser output. It also provide a trouble and maintanence free laser system with a life span of 50, 000 hours for the laser system.
3. Able to mark a minimum line width of 0.02mm, minimum height of 0.2mm for English characters and depth of up to 1mm.
4. The MAN-20 is currently the best choice for industries seeking deep and fine marking at a fast speed.
5. Ergonomically designed. Can be placed on desktop, taking up a small working space. Low power consumption of 800W. Highly recommended for factories and retail space.
6. Low power consumption of 800W. Highly recommended for factories and retail space.
7. WINDOWS based marking software. Able to read CORELDRAW, AUTOCAD, PHOTOSHOP and other commonly used graphic files, such as AI, PLT, DXF, BMP, JPEG. Support for auto-coding, serial number, batch number, date, bar code and two-dimensional codes.
8. Able to mark 360° Circular objects such as finger rings, bracelets and other cylindrical objects with the included rotating device.
Product parameters:


Model name	MAN-F50
Laser type	IPG / RAYCUS/ /CAS/MAX/ (optional)
Laser power	20W/30W 50W/(optional)
Supports graphical format	PLT, BMP, JPG, PNG, TIP, PCX, TGA, ICO, DXF
Beam quality	m2 <2
Power stability	(8h) <± 1% rms
Pulse repetition frequency	20-2KHz
Power consumed	<800W
Minimum line width	50μm
Minimum character	0.3mm
Laser Wavelength	1064nm
Galvanometer Size	100 * 100mm (optional)
Cooling way	Air cooling
Operating voltage	110/220V ± 10% /,50/60HZ
Ambient operating temperature	15 ° C - 35 ° C
Guarantee	3 years
Optional parts	Rotary device
Machine color	blue grey ( red white,yellow black etc. for option)
