Diamond Wire for Multi Cutting
Qingdao Giant Packaging Co., Ltd.- Application：Stone
- Type：Diamond Wire Saw
- Quality：a
- Fix：Plastic,Rubber,Spring Pressing
- Beads：37,40
- Certificate：ISO9001:2008
Base Info
- Model NO.：SGWS-GS88
- Raw Material：Use Diamond From Element Six
- Package Details：Carton, Box
- Delivery Details：7-15 Days After Payment Received
- Performance：Stable Performance and Long Lifespan
- Service：Quickly Response
- Transport Package：Carton
- Specification：ISO9001
- Trademark：SANG
- Origin：China
- HS Code：82079010
- Production Capacity：5000m,Month
Description
Suitable for working on Quarry, Stationary, Multi- and Profile wire saw machines.Used for cutting stone and construction materials. Item No. Application Coating Diameter
(D/d mm) Wire Beads
(pcs/m) Hardness Wire Speed
(m/s) Cutting
Speed, m*m/h Life m*m/m SGWS-GQ115 Granite
Quarry Rubber 11.5 / 4.9 40 Soft 30-35 15-30 20-35 Medium 25-30 10-25 20-30 Hard 20-25 3-10 7-15 SGWS-MSQ11 Marble
Quarry Spring 11 / 4.9 28 Soft 30-35 8-12 30-60 Medium 28-30 6-8 20-25 Hard 25-28 3-6 15-20 SGWS-GS105 Granite
Squaring Plastic 10.5 / 4.9 37 Soft 28-30 1.5-3.0 15-25 Medium 23-26 1.0-2.5 12-15 Hard 20-25 0.5-1.0 8-12 SGWS-MS105 Marble
Squaring Plastic 10.5 / 4.9 33 Soft 30-35 3-6 30-40 Medium 25-28 2-4 25-30 Hard 23-25 1-2 20-25 SGWS-GS88 Granite
Profilling Plastic 9(8.8)(8.5) / 4.7
8.2 / 3.6 37 Soft 25-28 1.0-2.0 15-20 Medium 22-25 0.8-1.5 10-15 Hard 20-23 0.5-1.0 8-12 SGWS-MS85 Marble
Profilling Plastic 8.8(8.5) / 4.7 33 Soft 30-35 3-6 35-40 Medium 25-28 2-4 25-35 Hard 23-25 1-2 15-25 SGWS-GM63 Granite
Multi-cutting Plastic 8.0(7.5)(7.2) / 3.6
6.3 / 37 Soft 25-28 1.0-2.0 (x Pcs №.) 15-20 Medium 22-25 0.8-1.5 (x Pcs №.) 10-15 Hard 20-23 0.5-1.0 (x Pcs №.) 8-12 SGWS-RC105 Reinforced
Concrete Rubber
+
Spring 10.5 / 4.9 40 Normal Wet
Cutting 22-25 2.0-5.0 2.0-6.0 Dry Cutting 18-22 1.0-2.5 2.0-3.0 Underwater
Cutting 12-15 1.0-2.0 2.0-3.0 Cutting Steel
Structure 12-15 0.5-1.0 0.5-1.0 Above data is used for reference; Other size on request available.

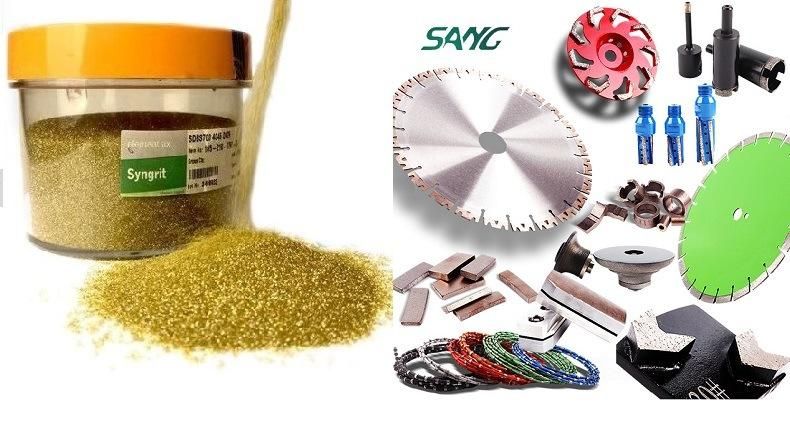

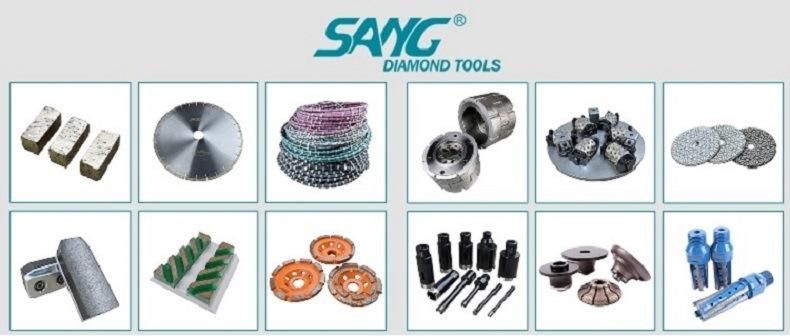

Established in 1993, Sang Diamond Tools Co., Ltd. is an innovative company specializing in research and manufacture of various diamond tools, such as diamond segments, diamond blade, diamond wire saws, diamond core bits, diamond polishing pads, diamond cup wheels, and diamond profiling wheels.
Our products are widely used for cutting and grinding granites, marbles, concretes, asphalts, tiles, slabs, countertops, pavement, bricks, curb, steps, palisades, wall stones, pillars, memorials, and sculptures.
Based on advanced technology and comprehensively systematic research and analysis of cutting nature of diverse stones and non-metal materials at home and abroad, we have developed unique diamond tools of sawing, cutting, grinding, milling and drilling which are adaptable in different areas. Owing to the latest manufacturing techniques, the most stable products and the best services, our products enjoy high reputation in both domestic and foreign markets such as Europe, America, East Asia and Southeast Asia.
With high quality products at reasonable prices, we sincerely hope to set up close relationships with customers all over the world.
