Model

BX-1400A

BX-1400B

Working area(mm)(L*W)

1320*1320

1320*1320

Forming area(mm)(L*W)

1220*1220

1220*1220

Function

Suction

Suction

Max. suction forming depth(mm)

80

80

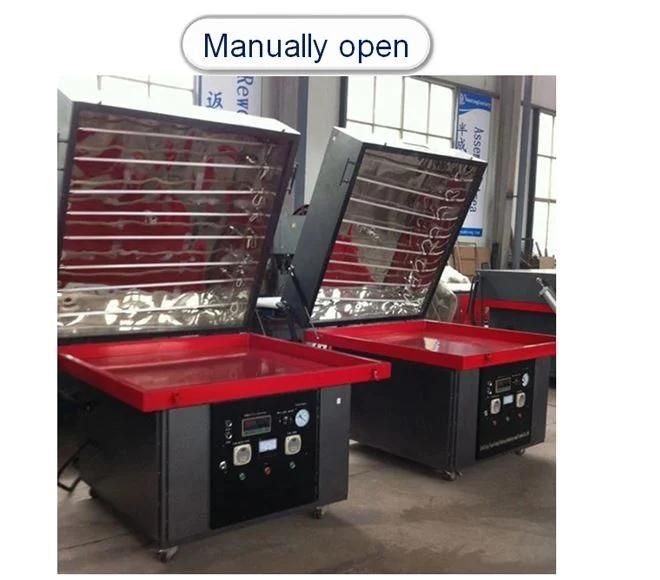

Oven open style

Manual

Automatic open

Heating area

1

1

Suction holes

1

1

Vacuum pump output

28.8m³/h

28.8m³/h

Total power(kw)

11

11

Working Voltage

AC380V/50HZ/3P

AC380V/50HZ/3P

Net Weight (kgs)

350

350

Overall size (mm)  (L*W*H)

1600*1500*1250

1600*1500*1250

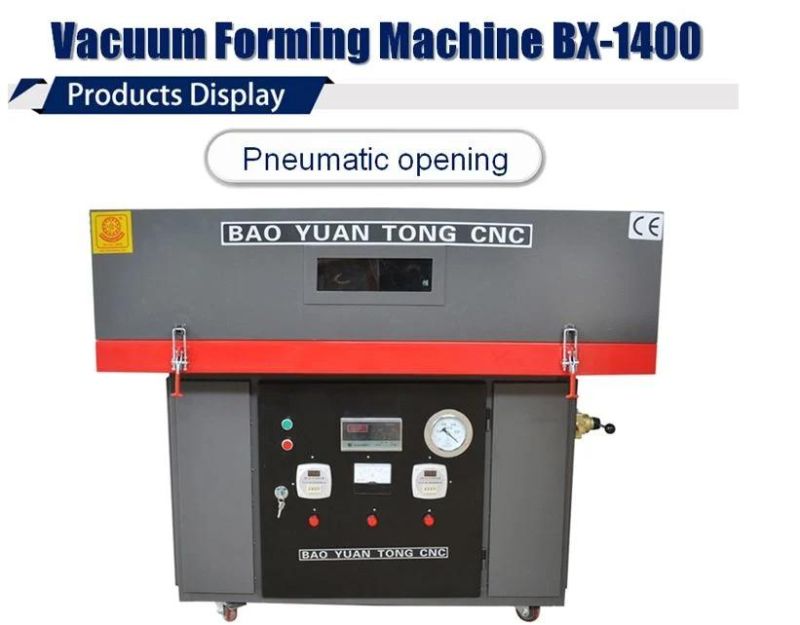

BX-1400 Small Single Mould Plastic Vacuum Former for Sinage Package Industrial

1. What is Vacuum forming machine ?

It mainly use heating tube soften plastic ,then use vacuum pump extract vacuum ,after cooling get the shape you need.

2. What is the vacuum forming machine used for ?

Plastic mold ,Mask making ,signage making ,package , Decoration ,University research ect.

3. Which materail can use ?

PMMA(Acrylic ), PVC,ABS,PE,PET ect.

4. How to choose vacuum forming machine ?

1) The material type and material thickness ,Less than 6mm

2) Finish forming products size

3) Sample pictures

5. Which type machine you have ?

Now mainly we have three type vacuum forming machine ,the mainly difference:

1) BX series only have suction function , the max forming height 80mm

2) BSX series have suction and blow function ,the max forming height can meet 200-300mm 3

) BXY series have Press ,suction and blow function, the max forming height meet 220mm when use blow function

For each type we have detail information , here have this three types working video you can check,more detail information contact with us :
