Basic Info.

Model NO. HY-51/62 Driven Type Mechanical, Electrical, Pneumatic Application Box, Tray, Dish, Lid, Container Plastic Type Plastic Packing Raw Material BOPS, PVC, Pet, HIPS, PS Max. Forming Area 510*620mm Thickness of Sheet 0.1-1.0mm Max. Forming Depth 100mm Power Supply AC 380V, 50/60Hz Weight 3500kg Transport Package Wooden Case Specification 510*620 Trademark hy Origin China HS Code 8477800000 Production Capacity 20sets/Year

Product Description



I. Introduction With The Machine
    HY-51/62 plastic thermoforming machine is a combination of mechanical, electrical and
pneumatic components, and the whole system is controlled by a micro PLC, which can be
operated in man-interface.
    It combines the material sending, heating, forming , cutting and stacking counting into one
process. It has three operation models. " manual", " semi-automatic" and "automatic, so it is
a new generation ideal package equipment telecommuting and memory reserve functions.

Specifications


Forming Area	510×620mm
Forming Depth	100mm
Sheet Thickness Range	0.10-1.0 mm
Sheet Roll Diameter	710mm
Air Pressure	0.7 Mpa
Water Consumption	10 Liters/min(15-20ºC)
Air Consumption	2200 Liters/min
Production Speed	600-1200 recycles/hr
Voltage	AC380V±15V,50/60HZ (Tri-Phase)
Preheating Power	4 kw
Mould Plate Heating Power	6 kw
Heating Plate Power	15 kw
Weight	3500kg
Machine Dimensions	2950(L)×1550(W)×2350(H) mm

II. Application Area
HY-51/62 fully automatic plastic forming machine is suitable to form BOPS, HIPS, PS, PVC
and PET plastic sheets etc., which can produce various of boxes, dishes, trays, bowls and lids,
such as food boxes, cake boxes, fast-food boxes, supermarket trays, oral liquids trays etc.

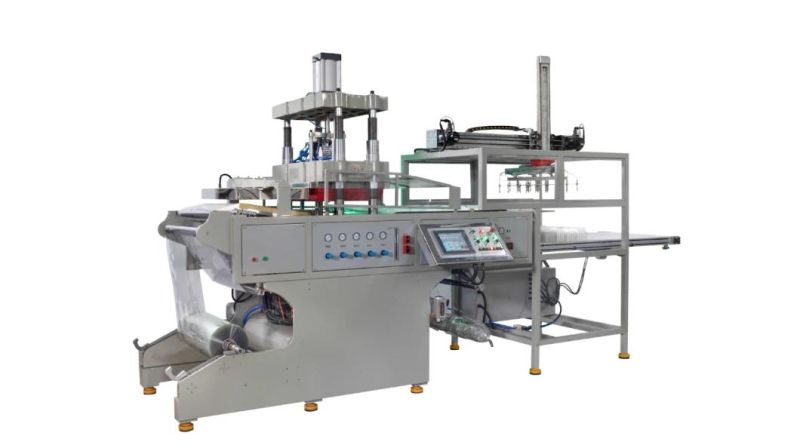

III. Machine Picture
The Machine process

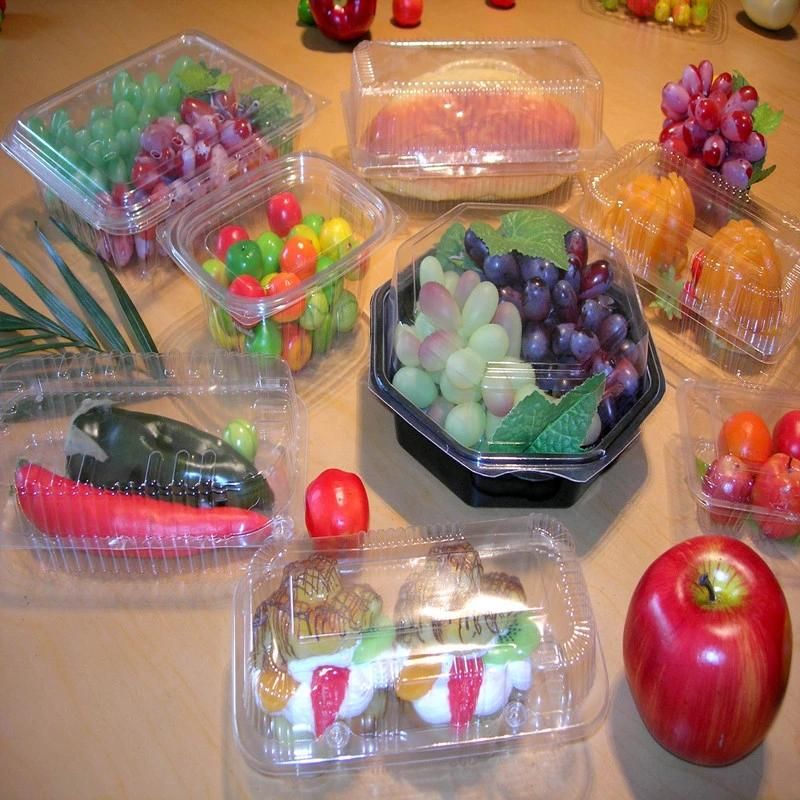

The Product Samples



The Packing Details

IV. About Zhejiang Hongyin Machinery Co., Ltd Service.
 1. Purchase Service
Hongyin Company has a specialized and efficient working team. If you are new on the
printing and packing area, some samples of your products shown to us will be appreicated, and
we will give you professional suggestions of whole work.

2. Installation Service
Hongyin company will assigned 1 technician to coordinate installation, commissioning and training.
Cost for return flight and suitable accommodation will be charged, and the allowance is USD100 per day.

3. Warranty Service
12 months limited warranty.
Starting from the date of machine arrival buyer's place excluding wear parts.
Shipping cost for easy broken parts to be replaced during warranty period have to be borne by the customer.  If you are interested in our machine, please feel free and contact me.
Contacter:Miss Lucy  Xu
