Diamond Core Drill Tube/Core Drill Barrel/Core Drill/Diamond Tool
Pinghu Kaixin Plastic Industry Co., Ltd.- Type：Core Drill
- Usage：Masonry Drilling, Reinforced Conrete Drilling
- Manufacturing Technology：Lathing, Welding
- Transport Package：Carton, Case, Pallet
- Specification：10mm-650mm
- Trademark：COREDIAM
Base Info
- Model NO.：CCDB
- Origin：China
- HS Code：82075090
- Production Capacity：2000 Pieces Per Month
Description
2.Specification
| Item No. | Barrel diameter (mm) | Tube Thickness (mm) | Effective Length | Adapter |
| CCDB01015 | 10 | 1.5 | 450mm | 1 1/4"UNC |
| CCDB01215 | 12 | 1.5 | 450mm | 1 1/4"UNC |
| CCDB01415 | 14 | 1.5 | 450mm | 1 1/4"UNC |
| CCDB01615 | 16 | 1.5 | 450mm | 1 1/4"UNC |
| CCDB01815 | 18 | 1.5 | 450mm | 1 1/4"UNC |
| CCDB02015 | 20 | 1.5 | 450mm | 1 1/4"UNC |
| CCDB02220 | 22 | 2.0 | 450mm | 1 1/4"UNC |
| CCDB02420 | 24 | 2.0 | 450mm | 1 1/4"UNC |
| CCDB02520 | 25 | 2.0 | 450mm | 1 1/4"UNC |
| CCDB02620 | 26 | 2.0 | 450mm | 1 1/4"UNC |
| CCDB02820 | 28 | 2.0 | 450mm | 1 1/4"UNC |
| CCDB03020 | 30 | 2.0 | 450mm | 1 1/4"UNC |
| CCDB03220 | 32 | 2.0 | 450mm | 1 1/4"UNC |
| CCDB03420 | 34 | 2.0 | 450mm | 1 1/4"UNC |
| CCDB03520 | 35 | 2.0 | 450mm | 1 1/4"UNC |
| CCDB03620 | 36 | 2.0 | 450mm | 1 1/4"UNC |
| CCDB03720 | 37 | 2.0 | 450mm | 1 1/4"UNC |
| CCDB03820 | 38 | 2.0 | 450mm | 1 1/4"UNC |
| CCDB04020 | 40 | 2.0 | 450mm | 1 1/4"UNC |
| CCDB04520 | 45 | 2.0 | 450mm | 1 1/4"UNC |
| CCDB05020 | 50 | 2.0 | 450mm | 1 1/4"UNC |
| CCDB05520 | 55 | 2.0 | 450mm | 1 1/4"UNC |
| CCDB06020 | 60 | 2.0 | 450mm | 1 1/4"UNC |
| CCDB06520 | 65 | 2.0 | 450mm | 1 1/4"UNC |
| CCDB07020 | 70 | 2.0 | 450mm | 1 1/4"UNC |
| CCDB07520 | 75 | 2.0 | 450mm | 1 1/4"UNC |
| CCDB08020 | 80 | 2.0 | 450mm | 1 1/4"UNC |
| CCDB10020 | 100 | 2.0 | 450mm | 1 1/4"UNC |
| CCDB11220 | 112 | 2.0 | 450mm | 1 1/4"UNC |
| CCDB12020 | 120 | 2.0 | 450mm | 1 1/4"UNC |
| CCDB12520 | 125 | 2.0 | 450mm | 1 1/4"UNC |
| CCDB13020 | 130 | 2.0 | 450mm | 1 1/4"UNC |
| CCDB14020 | 140 | 2.0 | 450mm | 1 1/4"UNC |
| CCDB15025 | 150 | 2.5 | 450mm | 1 1/4"UNC |
| CCDB16025 | 160 | 2.5 | 450mm | 1 1/4"UNC |
| CCDB17025 | 170 | 2.5 | 450mm | 1 1/4"UNC |
| CCDB18025 | 180 | 2.5 | 450mm | 1 1/4"UNC |
| CCDB20025 | 200 | 2.5 | 450mm | 1 1/4"UNC |
| CCDB22325 | 223 | 2.5 | 450mm | 1 1/4"UNC |
| CCDB24825 | 248 | 2.5 | 450mm | 1 1/4"UNC |
| CCDB29825 | 298 | 2.5 | 450mm | 1 1/4"UNC |
| CCDB34830 | 348 | 3.0 | 450mm | 1 1/4"UNC |
| CCDB39830 | 398 | 3.0 | 450mm | 1 1/4"UNC |
| CCDB44830 | 448 | 3.0 | 450mm | 1 1/4"UNC |
| CCDB49830 | 498 | 3.0 | 450mm | 1 1/4"UNC |
| CCDB54830 | 548 | 3.0 | 450mm | 1 1/4"UNC |
| CCDB59830 | 598 | 3.0 | 450mm | 1 1/4"UNC |
| CCDB64830 | 648 | 3.0 | 450mm | 1 1/4"UNC |
3.Features
Manufacturer technology: lathing and welding
Suitable: wet drilling concrete, reinforced concrete, masonary with superior efficiency.
4.Quality control & Test
5.Delivery time & Packing
2 weeks for samples after order confirmed.
3 weeks for batch order after payment confirmed.
6.Corediam service
We accept customized lengths and segments for wet core drills.
Also, we help to design the total solution of core drilling projects.
7.Corediam introduction

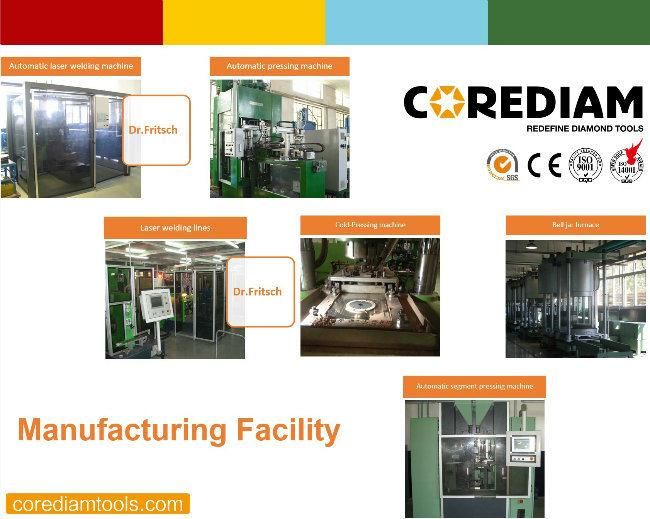

Corediam Tools Co., Ltd., as a high-tech enterprise, concentrates on researching & developing, manufacturing and marketing diamond tools industry. We have the most extensive, innovative and powerful range of diamond tools for construction, stone and DIY markets. Corediam strives to be the leading professional supplier in the world by technology innovation.
