Hydraulic Multi-Way Directional Flow Control Valve Xydl-G15L
Changzhou Ivorie Shengmei Packaging Technology Co., Ltd.- Function：Flow Control
- Installation：Superposition
- Drive：Hydraulic
- Type：Directly Operated Type
- Structure：Sectional Valve
- Nominal Pressure：250 Bar
Base Info
- Model NO.：XYDL-G15L
- Nominal Size：15 mm
- Nominal Flow Rate：65 L,Min
- Control Pressure：7~25 Bar
- Spool Number：1~8
- Valve Shaft Stroke：7+7 mm
- Warranty：1 Year
- Certificate：ISO9001
- Transport Package：Packed in Exported Standard

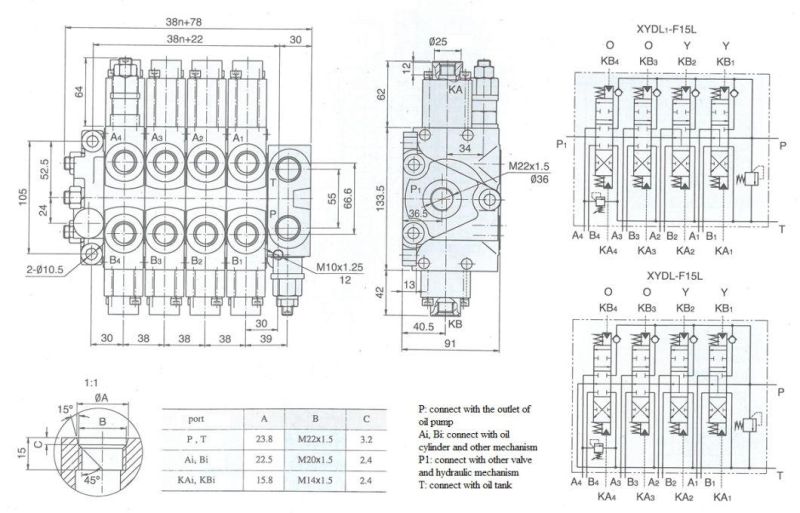

- Specification：As drawing
- Trademark：HCHC
- Origin：Anhui, China
- Production Capacity：5000 Sets Per Month
Description
Nominal Pressure
(bar)Nominal Size
(mm)Nominal Flow Rate
(L/min)Control Pressure
(bar)Valve Shaft Stroke
(mm)Spool Number
nWeight
(kg)25015657~257+71~82.9+2.7n
(bar)Nominal Size
(mm)Nominal Flow Rate
(L/min)Control Pressure
(bar)Valve Shaft Stroke
(mm)Spool Number
nWeight
(kg)25015657~257+71~82.9+2.7n
