Basic Info.

Model NO. SJ45(500)-50(700) Machine Weight 1.5t Certification CE, ISO9001:2008, GMP Film Thickness 0.005-0.08mm Production Capacity 60sets/Month, 30 Set/Month Screw L/D 28;1 Die Type Fixed Die Rewinder Type Single Winder Transport Package as Required Specification CQC, ISO9001, SGS, CE Trademark YUNBANG Origin Zhejinag China HS Code 84778000

Product Description

we have 2 type mini film extruder
1) SJ-45-500 : for making 100-400 wide film
2) SJ-50-700, for Making 150-600 mm wide film

this machine is very good for making small size bag making
this machine is very good for such person use, who is never used the film blowing machine before, because is very easy operate.


Use:
It applies to blow various LDPE, HDPE and LLDPE plastic film, widely applying to food, fruit, clothing, textile, vest type bag and etc. Packing of civil industrial products.
Feature:
Mode SJ45-50 squeezing machine is adopted rotary die head, machine tube is adopted 38CrMoAl, having the best hardness and corrosion-resisting performance after nitrogen treatment and precision processing.
FM-600 auxiliary machine can adjust and operate freely within the range of 700mm in accordance with the technological demand of different materials, and having package board mechanism which can make vest type bag.
Rolling up device with double-drawing in and double cutting ope, its power is adopted moment motor, with friction plate, it can keep suitable tension, drawing in and rolling up in good order, easy to change roll.


Power	5.5-24KW
Assistance Machine	0.75KW
Heating	12KW
Die-Head	Φ50-200mm Choose freely
Screw Diameter	Φ45/50mm Choose freely
Screw L/D Ratio	L/D 28:1
Screw Speed	10-100r/min
Max Ouput	30-50kg/h
Film Thickness	0.008-0.10 mm
Film Width	50-600 mm
Weight	2-4.5T

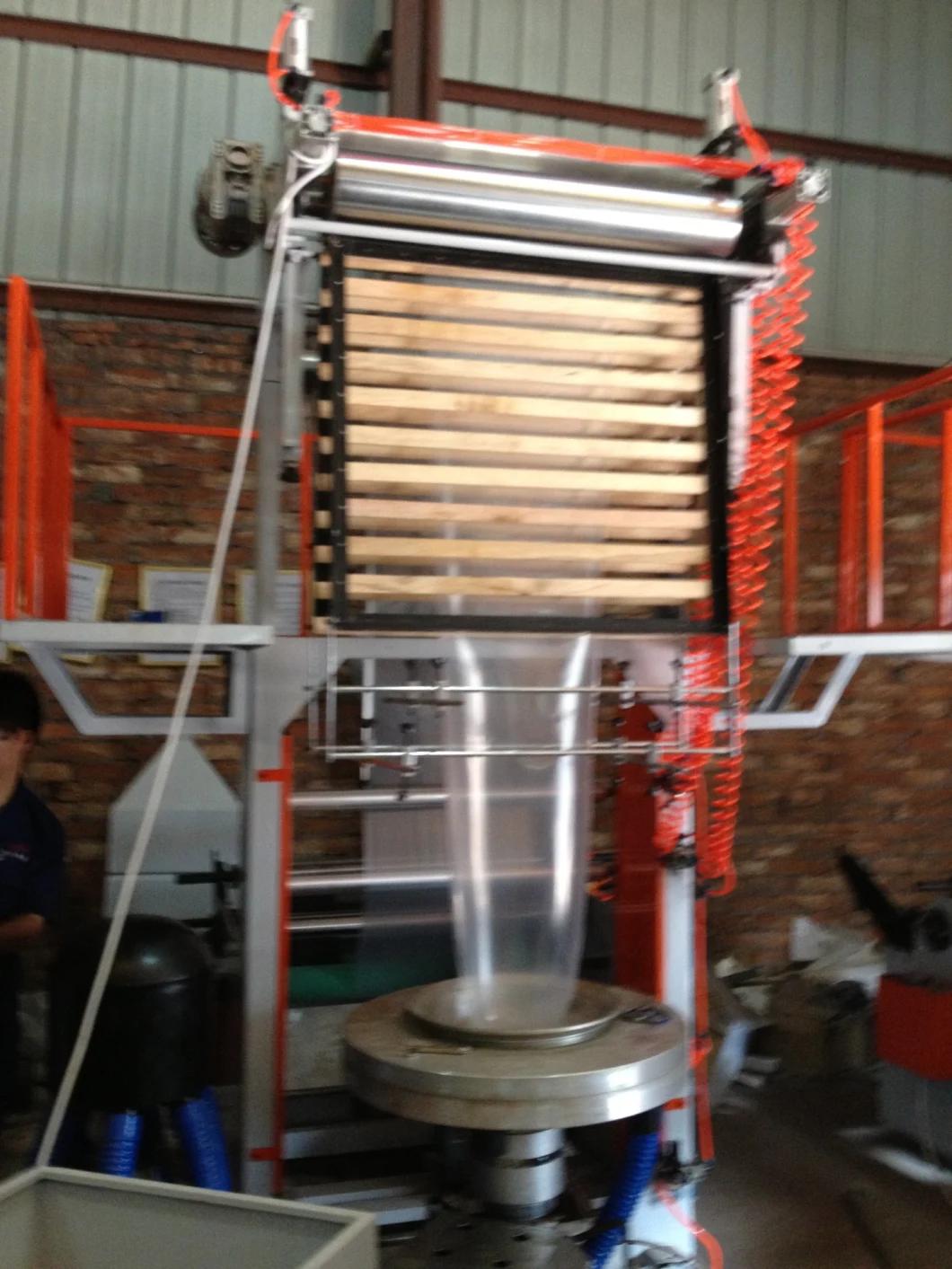

Machine Picture:
