• Model NO.：Multi segments
• Quality：Fast Cutting Speed and Long Lifespan
• Color：Silver or Gray
• Technology：Sintered
• Processing Object：Granite Block, Marble Block
• OEM/ODM：Support The Customization of Logo, Packaging
• MOQ：1sets
• Certification：TUV, CE
• Transport Package：Waterproof Material and Carton Guarantee
• Specification：D350-3500 stone cutting segments
• Trademark：Linsing
• Origin：China
• Production Capacity：200000piece,Day

Basic Info.

Model NO. Multi segments Quality Fast Cutting Speed and Long Lifespan Color Silver or Gray Technology Sintered Processing Object Granite Block, Marble Block OEM/ODM Support The Customization of Logo, Packaging MOQ 1sets Certification TUV, CE Transport Package Waterproof Material and Carton Guarantee Specification D350-3500 stone cutting segments Trademark Linsing Origin China Production Capacity 200000piece/Day

Product Description

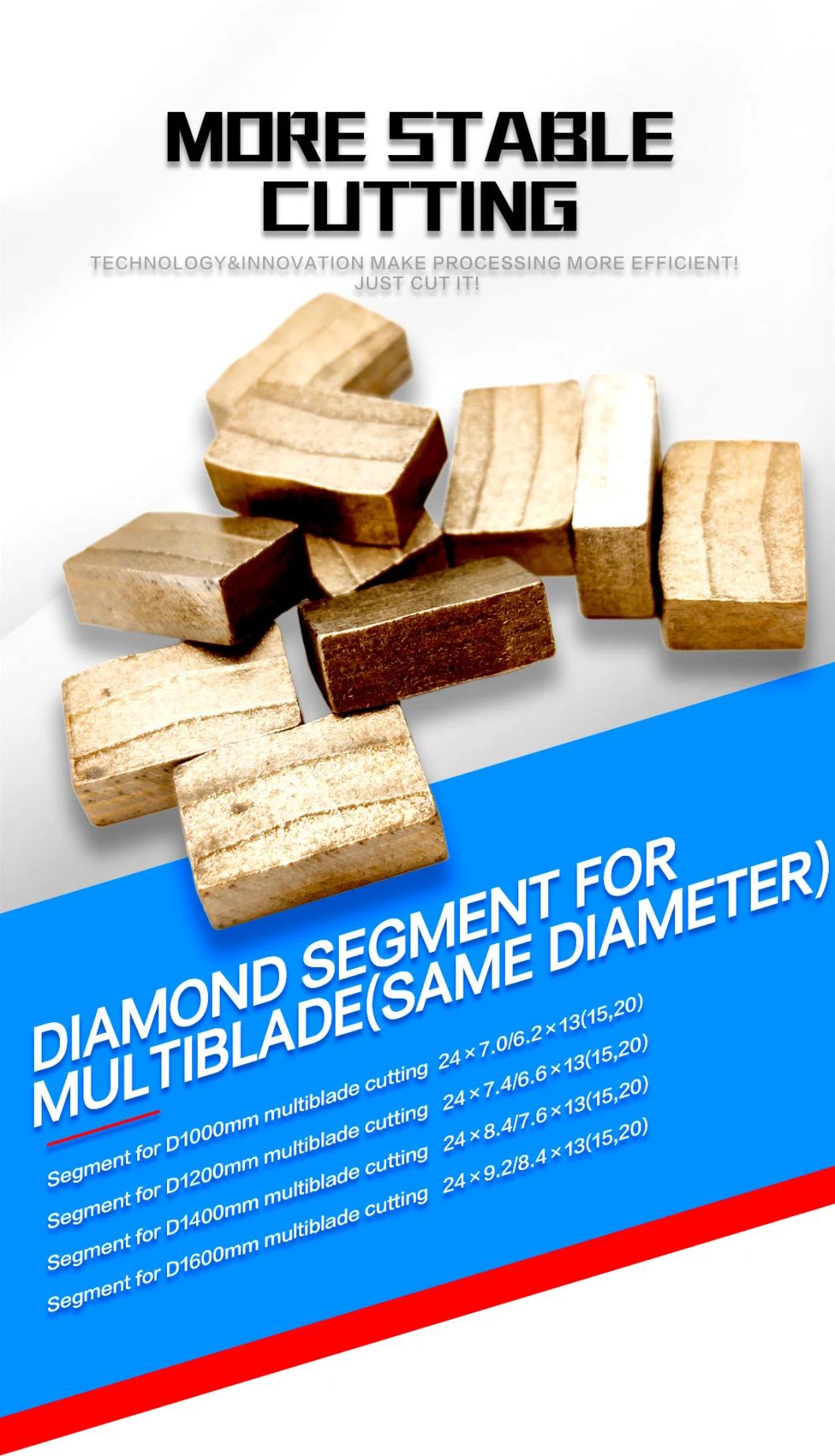

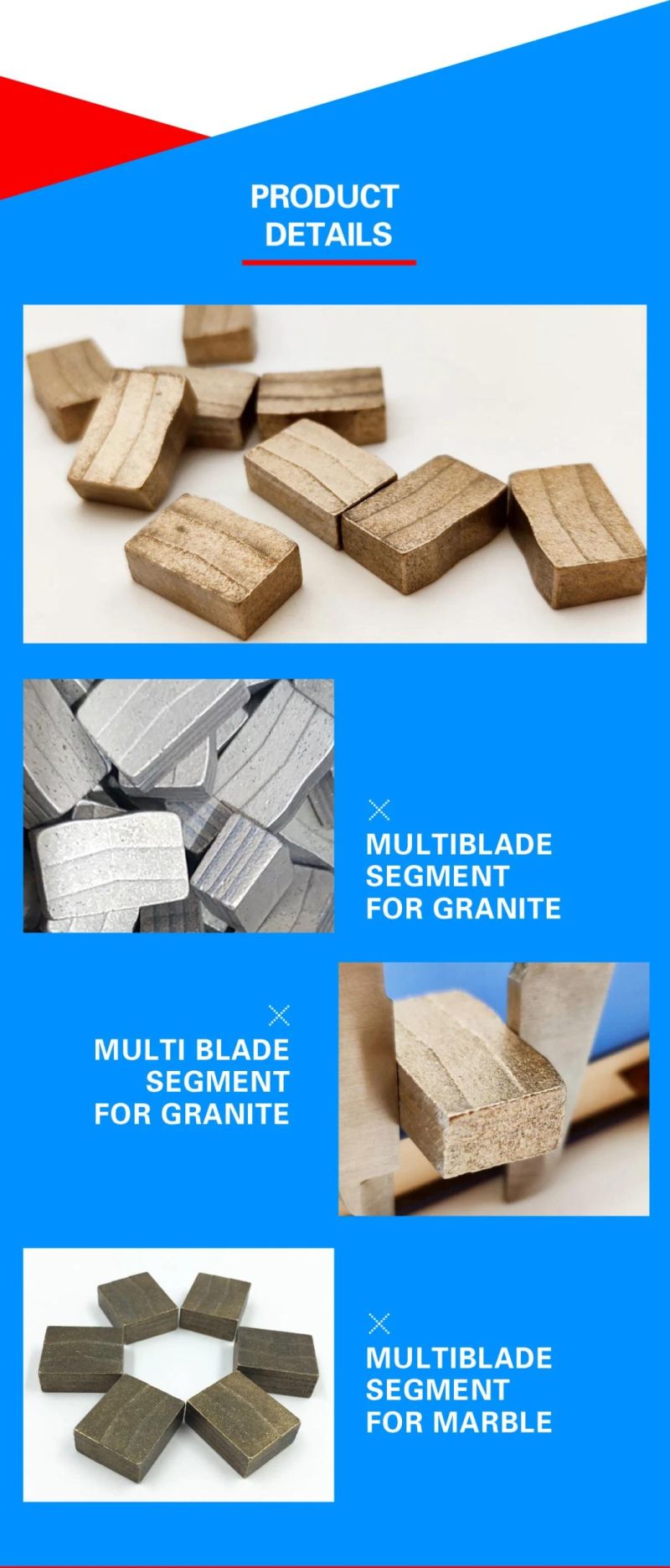

Linsing Diamond multiblade segments

Product Features:

1 It work in low noise,small cutting slot which ensures maximum use of stone and uniform thickness.
2 Stable cutting,narrow cutting gap,stone waste reduction.

Product Description

Product name	Multi Blade Segments
Use for	Marble block
Segment shape	Trapezoid, R/M/etc.
Segment sharp	Sandwich, Layer, etc.
Supply Ability	6,000,000 Pcs/Month

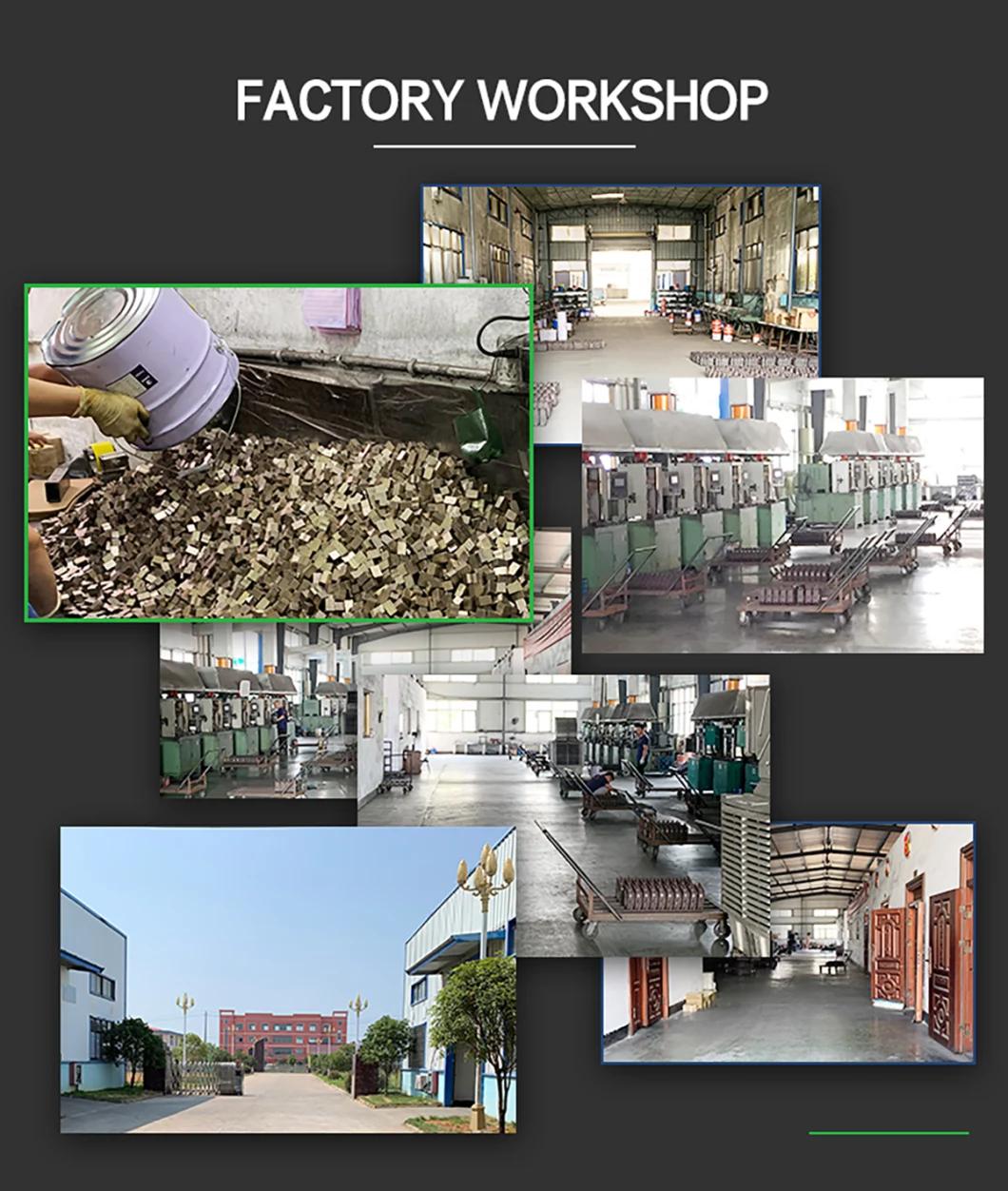

Factory	More than 17 years' experience
Delivery time	7~15 days after payment received.

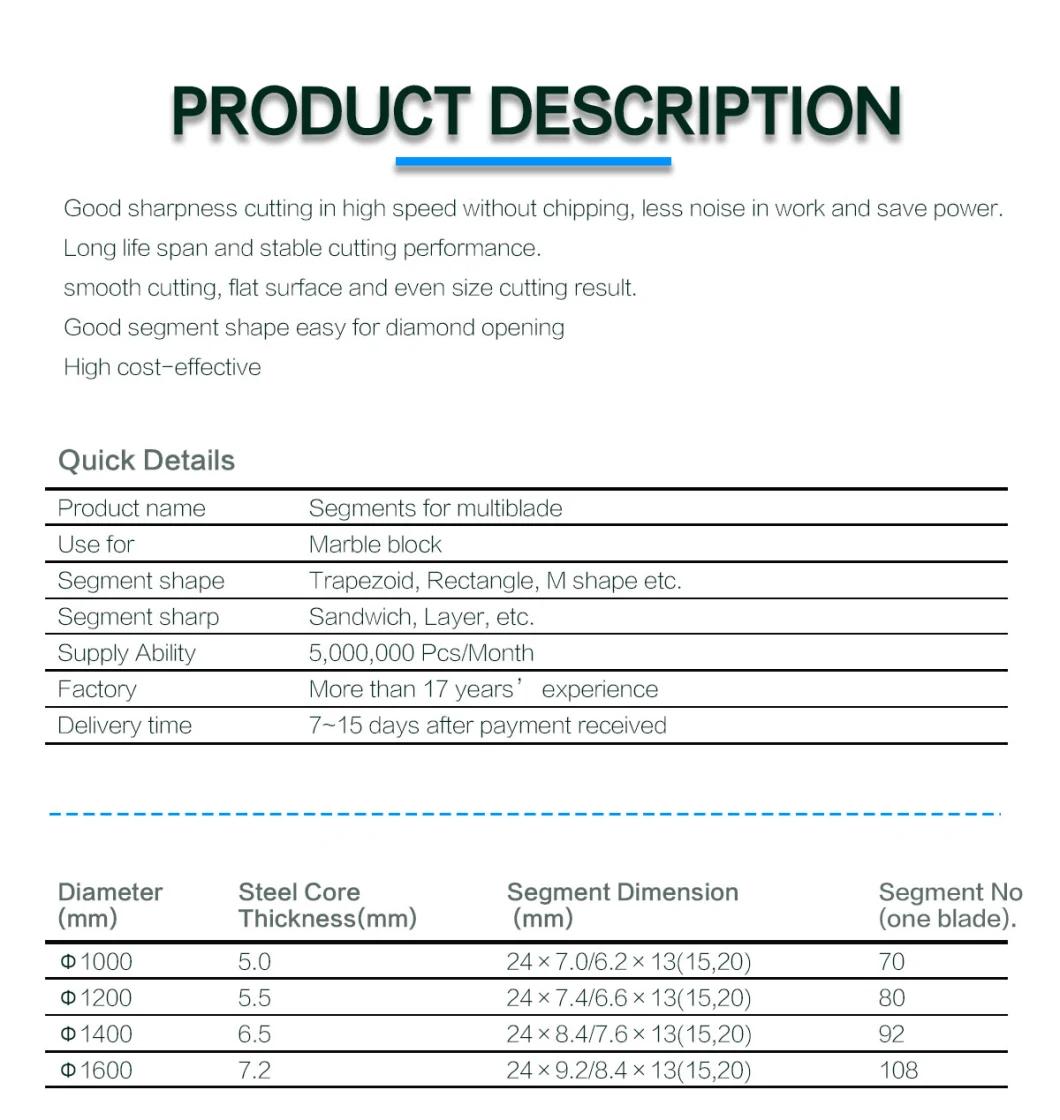

Product Specifications

Saw blade Diameter(mm)	Steel Core Thickness(mm)	Segment Dimension(mm)	Segment Number(pcs)
1000	5	24×7.0/6.2×13(15,20)	70
1200	5.5	24×7.4/6.6×13(15,20)	80
1400	6.5	24×8.4/7.6×13(15,20)	92
1600	7.2	24×9.2/8.4×13(15,20)	108

Multiblade segments size

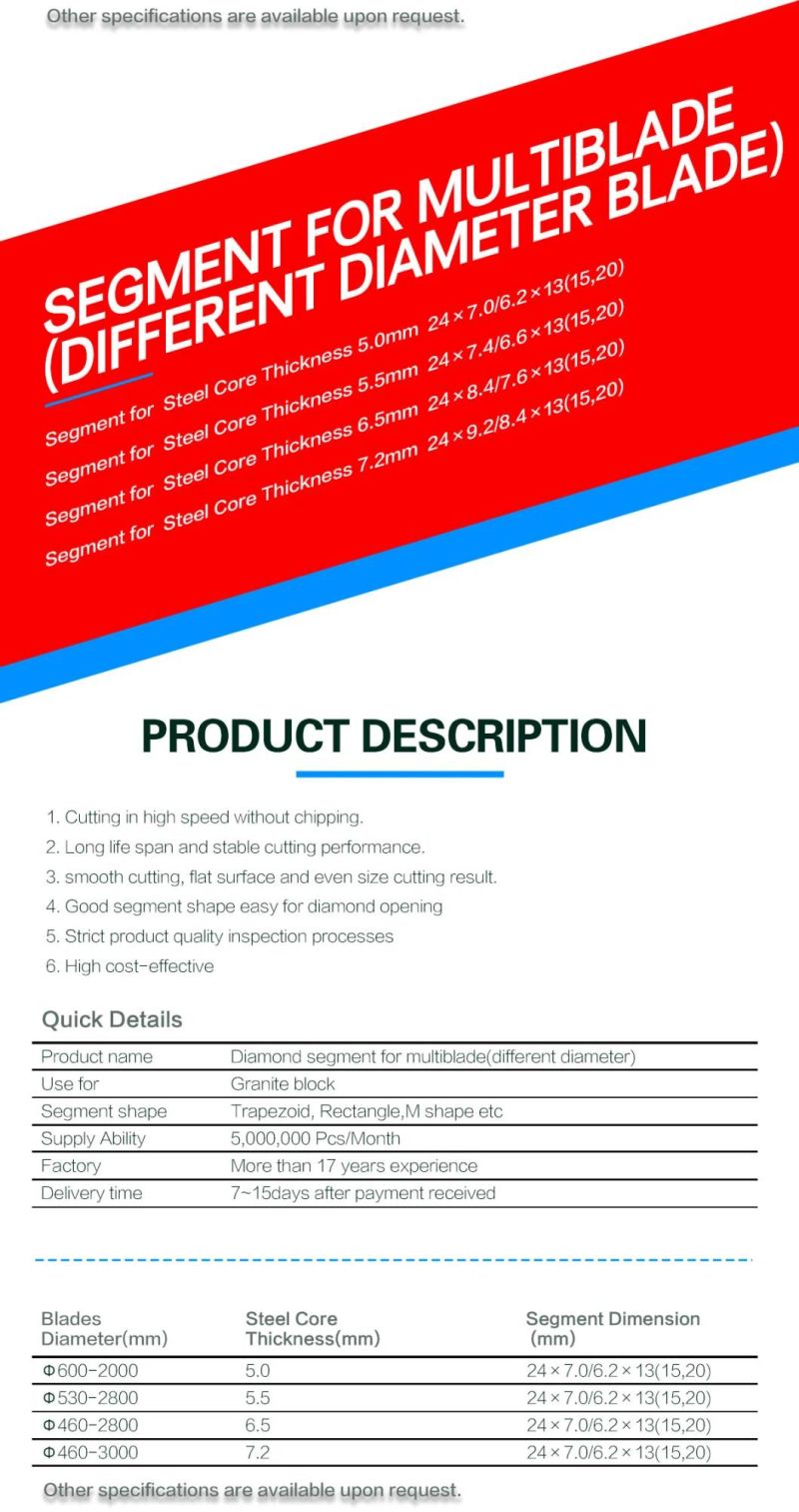

Multiblade ( different diameter blade combination cutting) segments

Product application

Segment for Multiblade block cutting. This combined cutting method can meet the cutting of larger size stone, especially for saw blades diameter more than 1800mm, such as 2000mm, 2200mm, 2500mm or 3000mm, they can process larger block to have the larger slabs, it can better meet the different needs of stone processing. The segments change size according to the blank blade thicknes.

Product Description

Product name	Multi Blade Segment
Use for:	Granite
Segment shape	Trapezoid, K/M/etc.
Segment sharp	Sandwich, Layer, etc.
Supply Ability	6,000,000 Pcs/Month
Factory	More than 17 years' experience
Delivery time	7~15 days after payment received.

Product Specifications

Saw blade Diameter (mm)	Steel Core Thickness(mm)	Segment Dimension(mm)
600-2000	5	24×7.0/6.2×13(15,20)
530-2800	5.5	24×7.4/6.6×13(15,20)
460-2800	6.5	24×8.4/7.6×13(15,20)
460-3000	7.2	24×9.2/8.4×13(15,20)

Multi blade segments size

Multi-blade segment are widely used in Iran, Vietnam, India, Russia, Indonesia and other countries. Multi-blade segments have very high requirements for the stability of the segment. If the segment can't cut, mostly because the sharpness of the segment is not enough. In terms of lifespan, we also have great advantages. Whether the super hard granite or soft granite, our products(LINXING diamond tools) can cut very fastly and meet the needs of different customers.
