Basic Info.

Model NO. JK-DR200X Type Crawler Usage Water Well Voltage 24V Weight 4.7t Warranty 1 Year Power Type Diesel Product Name Water Well Drilling Rig Transport Package 20gp Specification 4000*1700*2200mm Trademark SDJK Origin Shandong HS Code 8430412100 Production Capacity 100 Pieces/Month

Product Description

JK-DR200XWater Well Drilling Rig Pneumatically Drilling Depth 180M

The JK-DR200X pneumatic DTH drilling rig is capable of drilling upto 185mm diameter holes for pore-forming purposes to a depth of 200 meters.

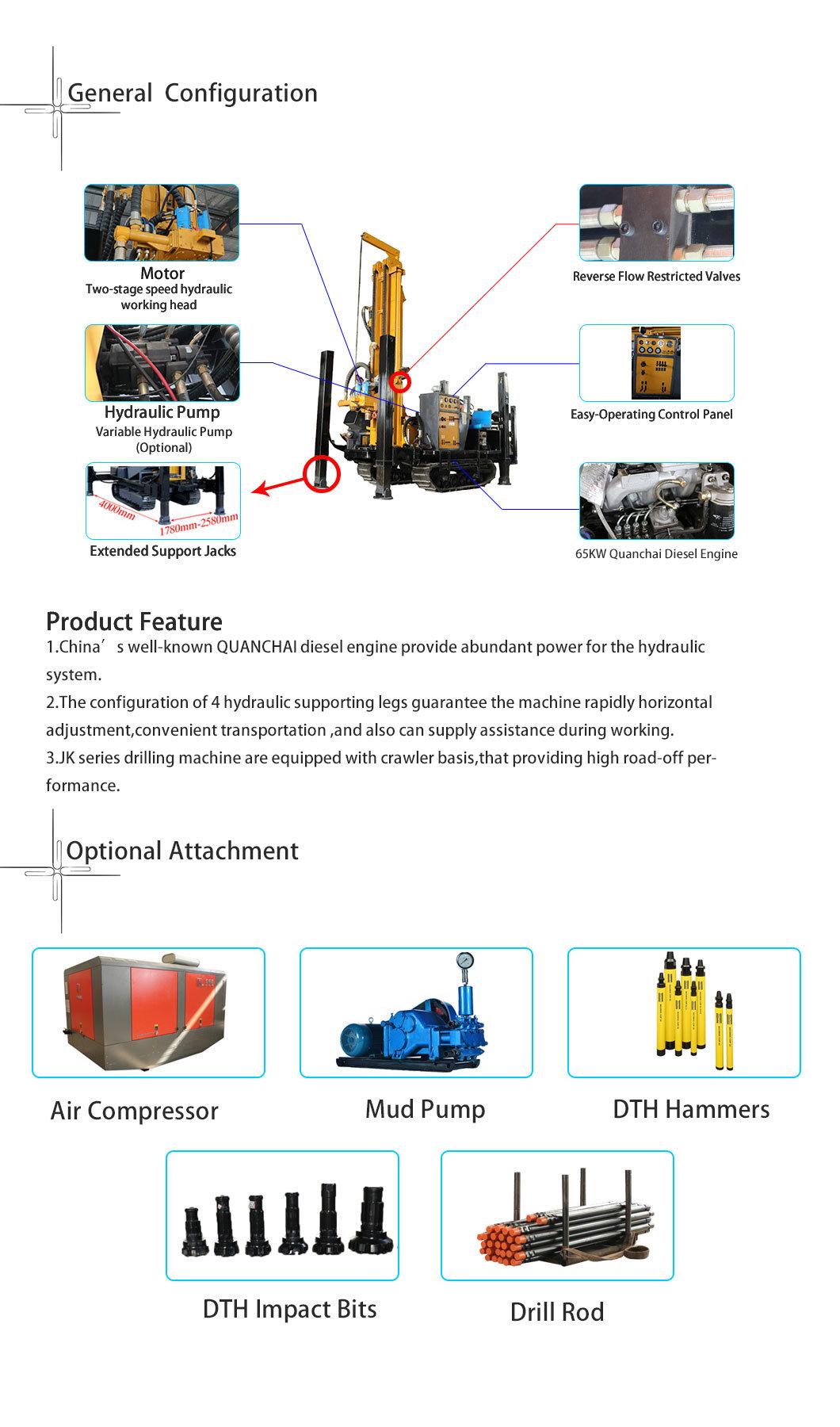

JK-DR200X new generation multi-purpose DTH deep water well drilling rig is our independent research and development products. These new generation DTH are coupled to higher air power, and thus play a significant role in leading to faster drilling rates.
Adopting newest model & advanced hydro technology, our water well drilling machine are mainly used for well drilling in resource exploration and hydrology wells, civil use water well,  agriculture irrigation project, and can also be used for coal-mine gas exploitation, coalbed methane, shallow layer of shale gas, terrestrial heat, or salvage work.
Made from high quality materials, with fashion and compact design, that keeps our drilling rigs more efficiency and with low failure rate, more economic and durable, and with a high comprehensive cost performance. Our water drilling rigs have received the real market validation as the majority of our customers' positive feedback.

Model	JK-DR200X
Weight	4.7T
Bore diameter	140-254mm
Drilling depth	200m
Stroke	3.3m
Travelling speed	2.5km/h
Gradeability	30%
Power	65KW
Rated pressure	1.7-2.5mpa
Air consumption	17-31m³/min
Drill rod diameter	Φ76, Φ89
Drill rod length	1.5m 2.0m 3.0m
Elevating capacity	10T
Swing speed	45-65rpm
Swing torque	3200-4600N.M
Dimensions	4000*1700*2200mm
