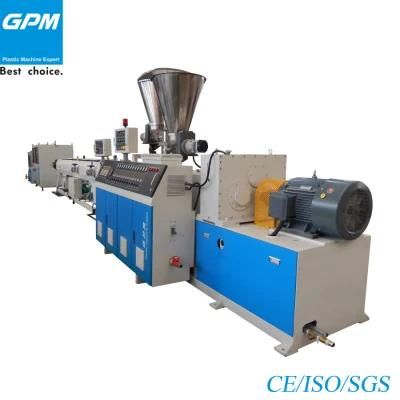

Twin Screw PVC Pipe Production Line with Price
Linyi Kunhong Tools Co., Ltd.Base Info
Description
SPECIFICATIONS FOR PVC PIPE EXTRUSION LINEModel Pipe spec(mm) Conical twin screw extruder Max.output
(kg/h) Total power(kw) GWG63-PVC Φ20-Φ63 GSZ65/132 180-300 104 GWG160-PVC Φ63-Φ160 GSZ65/132 180-300 105 GWG250-PVC Φ75-Φ250 GSZ80/156 300-450 110 GWG315-PVC Φ200-Φ315 GSZ80/156 300-450 216 GWG450-PVC Φ200-Φ450 GSZ92/188 650-750 290 GWG630-PVC Φ315-Φ630 GSZ92/188 750-850 350 GWG800-PVC Φ500-Φ800 GSZ135/31 950-1100 410 Model Motor power(kw) Screw diameter
(mm) Max.speed
(rpm) L/D Max.capacity(kg/h) Weight(kg) GSP75/28 37 75 36 28:1 280 4100 GSP93/13 45/55 93 45 31:1 450 4700 GSP110/31 90/110 110 45 31:1 680 6500 GSP120/31 110/132 120 45 31:1 850 7500 GSP135/31 160 135 45 31:1 1100 8400
Main Features of soft pvc medical pipe extrusion line:
1. Excellent in chemical corrosion, no rust;
2. With self extinguishing and flame retardant;
3. Excellent in anti aging, can be used 20years to 50 years between the temperature from subzero 15 to 60 degrees Celsius;
4. Wall is smooth, inner wall surface tension, it is difficult to form scale, the fluid transport capacity of 43.7% higher than the cast iron pipe;
5. The weight is light, easy to flaring, bonding, bending, welding, pipe installation workload is only 1 / 2 to the steel pipes, low labor intensity, short duration;
6. Good electrical properties of resistance, volume resistance of 1 to 3 x 105Ω.cm, breakdown voltage 23 to 2kv/mm;
7. The toughness of PVC pipe is low, linear expansion coefficient is high, operating temperature range is narrow.
(kg/h)
(mm)
(rpm)
Main Features of soft pvc medical pipe extrusion line:
1. Excellent in chemical corrosion, no rust;
2. With self extinguishing and flame retardant;
3. Excellent in anti aging, can be used 20years to 50 years between the temperature from subzero 15 to 60 degrees Celsius;
4. Wall is smooth, inner wall surface tension, it is difficult to form scale, the fluid transport capacity of 43.7% higher than the cast iron pipe;
5. The weight is light, easy to flaring, bonding, bending, welding, pipe installation workload is only 1 / 2 to the steel pipes, low labor intensity, short duration;
6. Good electrical properties of resistance, volume resistance of 1 to 3 x 105Ω.cm, breakdown voltage 23 to 2kv/mm;
7. The toughness of PVC pipe is low, linear expansion coefficient is high, operating temperature range is narrow.
List of the line
| NO. | Equipment | Qty. | Power (KW) | Length (m) | Weight (T) |
| 1 | Automatic Feeder and Drier | 1set | |||
| 2 | GW65/33 Single Screw Extruder | 1set | 97 | 3 | 2.32 |
| 3 | GW25/25 Color strip Extruder | 1set | 5.5 | 1.2 | 0.3 |
| 4 | (20-63)Mould(including heater and calibrator) | 1set | 11 | 0.6 | 0.35 |
| 5 | Vacuum Tank | 1set | 13 | 9 | 0.8 |
| 6 | Haul-off unit | 1set | 3 | 2.2 | 0.8 |
| 7 | NO-DUST Cutter | 1set | 2.2 | 2.9 | 0.45 |
| 8 | Stacker | 1set | 6 | 0.35 | |
| 9 | Spare Parts | 1set |
