Basic Info.

Model NO. HGY-300 Water Well Drilling Rig Drilling Way Rotary Type Vertical Shaft Chuck Hydraulic Chuck Quality High Quality Stability Good Transport Package in New Strong Plywood Case Specification 300 Trademark csmiracleland Origin Changsha, Hunan, China HS Code 8430691900 Production Capacity 20 Sets/ Month

Product Description

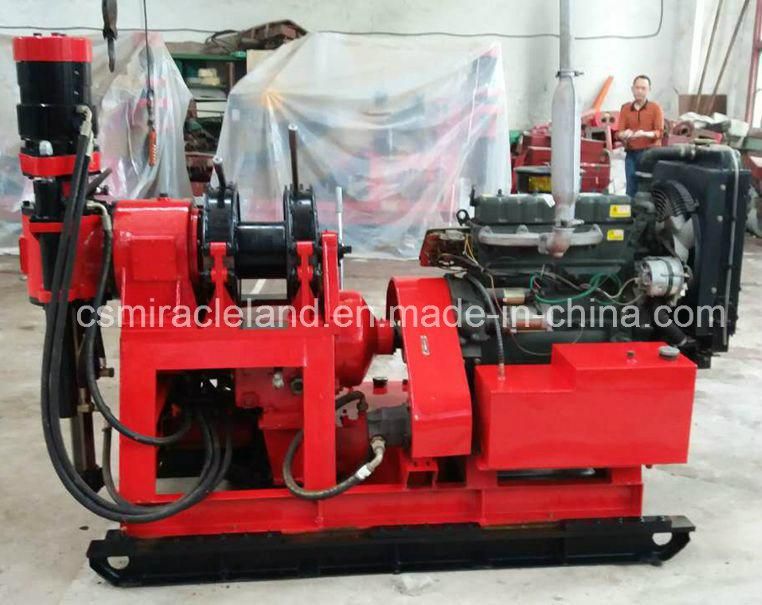

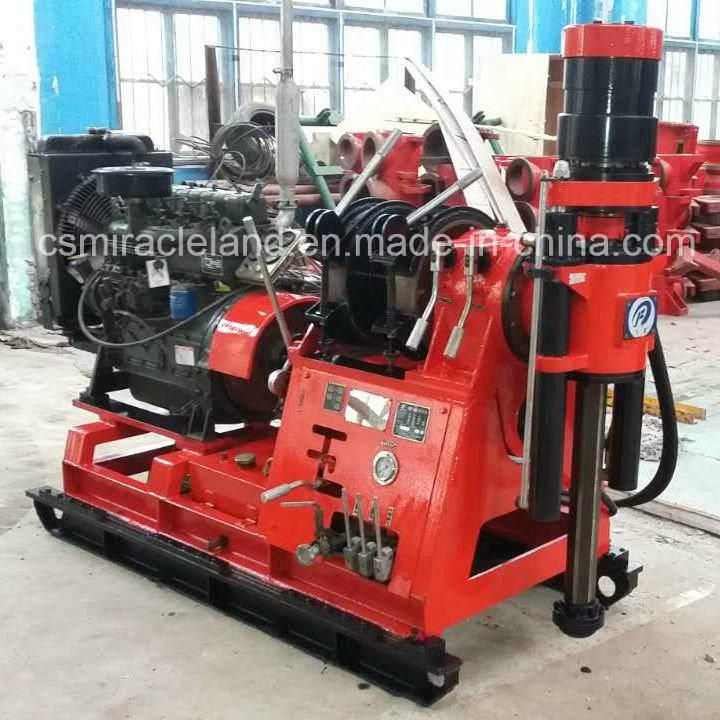

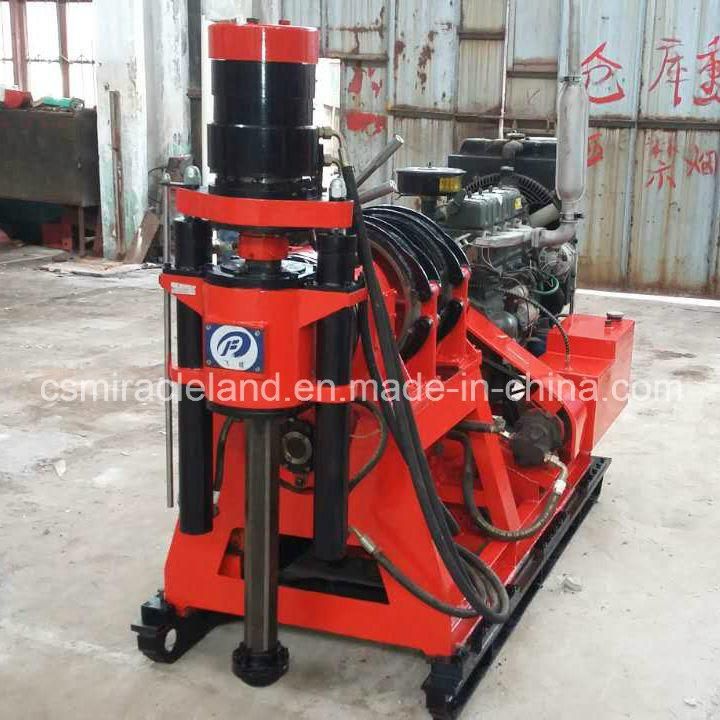

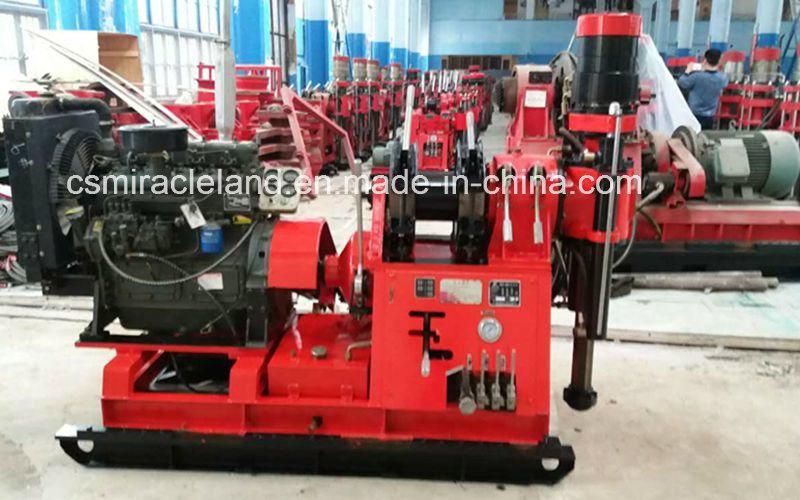

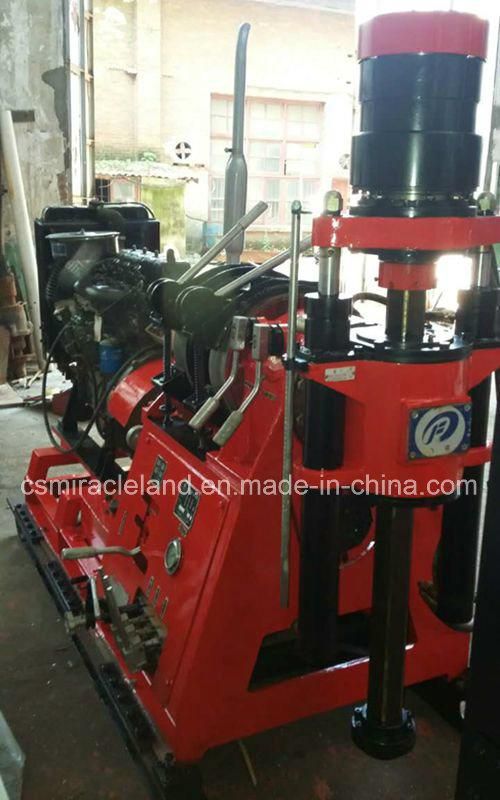

HGY-300 Water Well Drilling Rig:
Drilling depth(m): 300;
Spindle stroke(mm): 530;
Spindle driving force max. (KN): 40;
Spindle lifting power max. (KN): 60;
Single rope lifting power: 30;

Product Features:
Wide range of suitable rotary speed to meet various needs.
Common auto parts, Such as clutch, transmission case and shstructure.

Product Application:
It is widely used in the construction of the projects e. g. Prospecting, railway, road, port, bridge, water conservancy and hydropower, tunnel, well, industrial and civil construction, geological exploration, large diameter boring pile and small diameter diamond core deep hole drilling, etc.













the technical parameters of the HGY-300 water well drilling rig:


Type	HGY-300 Drilling Rig
Drilling depth(m)	300
Drilling rod diameter(mm)	Φ50
Head angle range	0~360°
Cylinder stroke(mm)	400
Spindle speed(r/min)	Positive rotation rate: 34671151892381563075318681094 Reverse rotation rate: 38173
Spindle hole diameter(mm)	Φ65/Φ96
Spindle output torque(N.M)	3100
Spindle stroke(mm)	530
Spindle driving force max.(KN)	40
Spindle lifting power max.(KN)	60
Lifting speed (m/s)	0.300.591.011.662.09
Single rope lifting power(KN)	30
Steel wire rope diameter(mm)	Φ13
Mode of chuck	Full hydraulic chuck or ball-type chuck
Weight(power unit excepted)(kg)	1200
Dimensions(LxWxH)(mm)	2000x900x1600

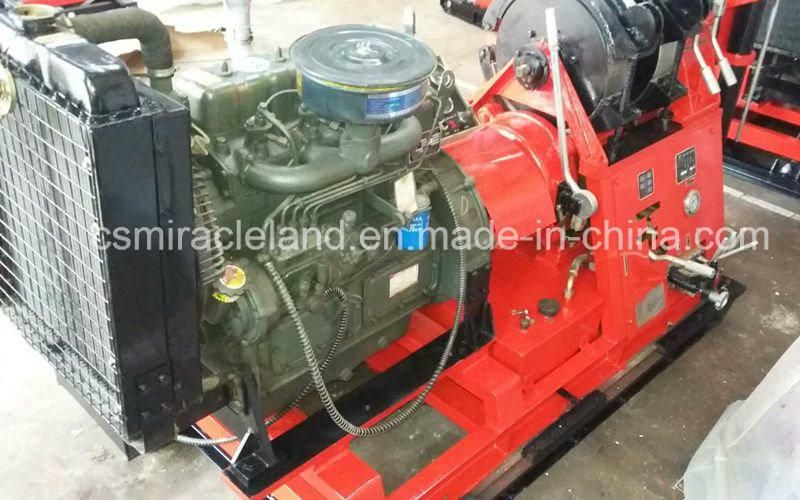

Diesel engine	495D(26.5KW)
Electrometer	Y180L-4(22KW)
