• Model NO.：GD150
• Capacity：150kg,H
• Candy Weight：as The Candy Size
• Depositing Speed：55~65n,Min
• Working Condition：Tempreture20~25 Humidity 55%
• Power：18kw,380V
• Length：15m
• Gross Weight：3500kg
• Transport Package：Wooden Case
• Specification：CE
• Trademark：SHINWEI
• Origin：Shanhai China
• HS Code：84382000
• Production Capacity：20stes,Year

Basic Info.

Model NO. GD150 Capacity 150kg/H Candy Weight as The Candy Size Depositing Speed 55~65n/Min Working Condition Tempreture20~25 Humidity 55% Power 18kw/380V Length 15m Gross Weight 3500kg Transport Package Wooden Case Specification CE Trademark SHINWEI Origin Shanhai China HS Code 84382000 Production Capacity 20stes/Year

Product Description

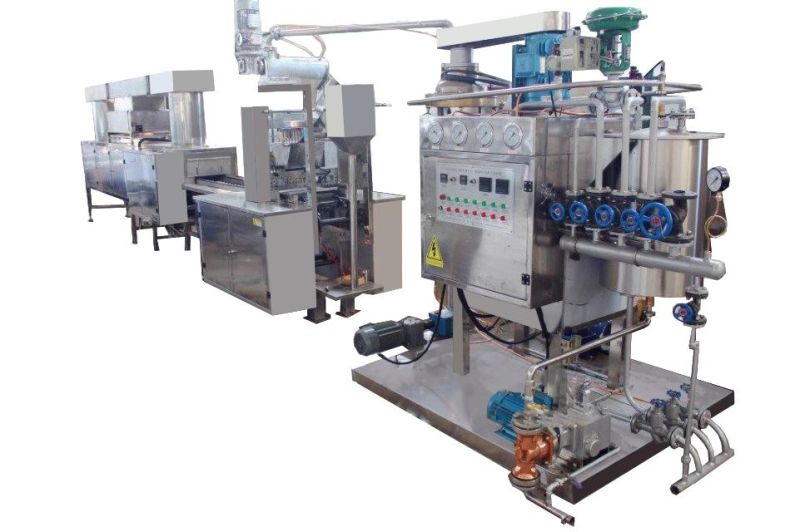

GD150-S/300-S/450-S/1200-S full automatic serve driven PLC controlled hard candy depositing line is the most advanced production line for deposited hard candy manufacturing. The line is consist of auto weighing and mixing system, pressure dissolving system, micro-film cooker, depositor and industrial and industrial cooling tunnel. Itis developed base on SHINWEI's 4th generation hard candy depositing line, adopt the advance serve system to control the processing.
The features:
1. All units of the production line are auto running, all raw materials are handling in the piping and machine, and various kind of recipes can be programmed in the PLC and applied easily and freely when needed.
2. PLC and serve driven system are imported brand which is more reliable and better quality.
3. Depositing volume (candy weight)can be changed easily that just need to set the data in the touch screen. More accurate depositing and continuous production makes minimal product wastage.
4. Simple and compact machine structure, menu operation, better efficiently, high speed running reliable and steady; Little noise are available in this machine.


Whole Automatic Hard Candy Making Machine Constituent Parts:
Sugar Melting Pot---Syrup Pump---Storage Tank(with mixing function)
---continous Vacuum Micro-film Cooker--Multi-function Servo Depositing Machine
---sticking Machine---Wrapping Machine

Model	GD150-S	GD300-S	GD450-S	GD600-S	GD1200-S
Output(kg/h)	150	300	450	600	1200
Max candy weight	6g	6g	6g	6g	6g
speed	55~65 n/min	55~65 n/min	55~65 n/min	55~65 n/min	55~65 n/min
Steam consumption Steam pressure	250kg/h, 0.5~0.8MPa	300kg/h, 0.5~0.8MPa	400kg/h, 0.5~0.8MPa	500kg/h, 0.5~0.8MPa	800kg/h, 0.5~0.8MPa
Compressed air consumption Compressed air pressure	0.2m3/min, 0.4~0.6MPa	0.2m3/min, 0.4~0.6MPa	0.25m3/min, 0.4~0.6MPa	0.3m3/min, 0.4~0.6MPa	0.4m3/min, 0.4~0.6MPa
Electric power needed	18kW/380V	27kW/380V	34kW/380V	42kW/380V	68KW/380V
Total length(m)	15	17	17	20	25
Gross weight	3500 kg	4000 kg	4500 kg	5000 kg	8000kg
