• Model NO.：KQ
• Application：Milk
• Customized：Customized
• Name：Stainless Steel Vertical Type Milk Cooling Tank F
• Tank Application：Cooling and Storage Fresh Milk
• Certificate：CE
• Compressor：USA Copeland
• Refrigerant：R404
• Milk Transportation Tank：Also Provided
• Outside Shape：Vertical and Horinzontal
• Milk Tank Material：Stainless Steel 304,316
• PU Insulation Wall Thickness：70mm
• Working Electricity：3phz
• Mixer：Equiped
• Working Life：More Than 10 Years
• Delivery：15 Days After Get Your Advance Payment
• Outlet：Outlet with Butterfly Valve
• Packing：Wooden Box
• Transport Package：Wooden Box
• Specification：SANITARY, FOOD GRADE
• Trademark：KAIQUAN
• Origin：Shanghai China
• HS Code：8479820090
• Production Capacity：1000 to 10000 Set

TypeKQ-0.5T
Vertical typeKQ-1T
Vertical typeKQ-2T
Laying typeKQ-3T
Laying typeKQ-5T
 Laying typeKQ-6T
 Laying typeKQ-8T
 Laying typeKQ-10T
 Laying typeCapacity(L)50010002000300050006000800010000LRefrigerating Output(W)90009000150002200037000380005500074000Refrigerating  Fluid(R)R22R22R22R22R22R22R22R22Insulating Property≤1ºC/4h≤1ºC/4h≤1ºC/4h≤1ºC/5h≤1ºC/5h≤1ºC/5h≤1ºC/5h≤1ºC/6hAgitator Speed36r/min36r/min36r/min36r/min36r/min36r/min36r/min36r/minPower (Kw)3.83.85.97.510.5111319.2Voltage220V/50Hz,3phases380V/50Hz,3phases380V/50Hz,3phases380V/50Hz,3phases380V/50Hz,3phases380V/50Hz,3phases380V/50Hz,3phases380V/50Hz,3phasesDimension(mm)1800*1200*15001800*1200*15003400*1550*17503600*1700*19003900*2050*21504500*2050*21506300*2050*22508000*2100*2400Weight(Approximately)0.6T0.6T 0.75T0.9T1.1T1.3T1.8T2.05TUnit Price:         SS304 MILK COOLING TANK






producing milk cooling tanks, collection centres, tubular coolers, milking machine components, pasteurisers, ice water
Adopting internationally-advanced technology of the 1900's it cools by circular and vertical wall. The fully automatic control system makes whole process of observation available. The cooled raw milk can reach rapidly needed temperature of 4~5 and keeps constant, which can prevent the generation of bacteria and make raw milk as Agrade cream.

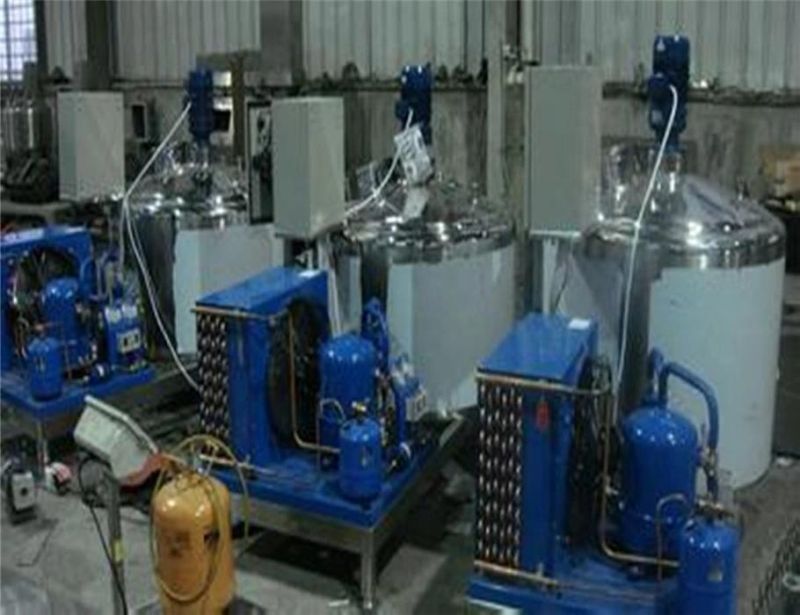

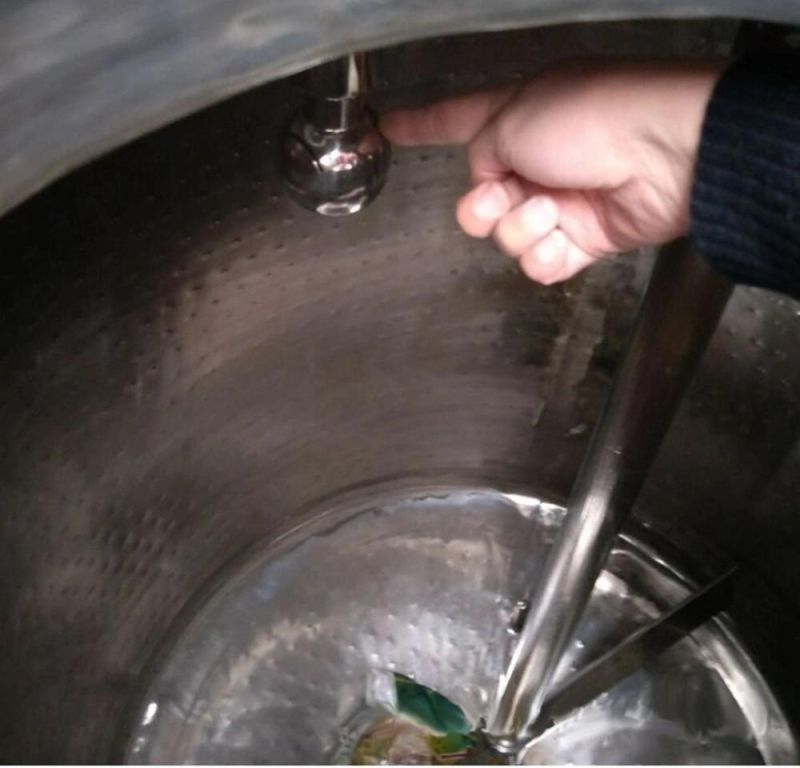

The adopted imported compressor features high performance, energy saving, full seal and protection system that prevents damage due to overload. Also fitted are high / low liquid level control system and automatic cyclespray and agitating device.

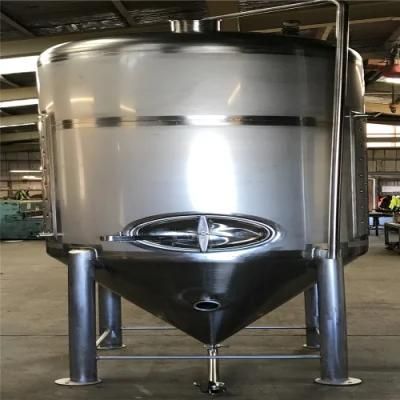

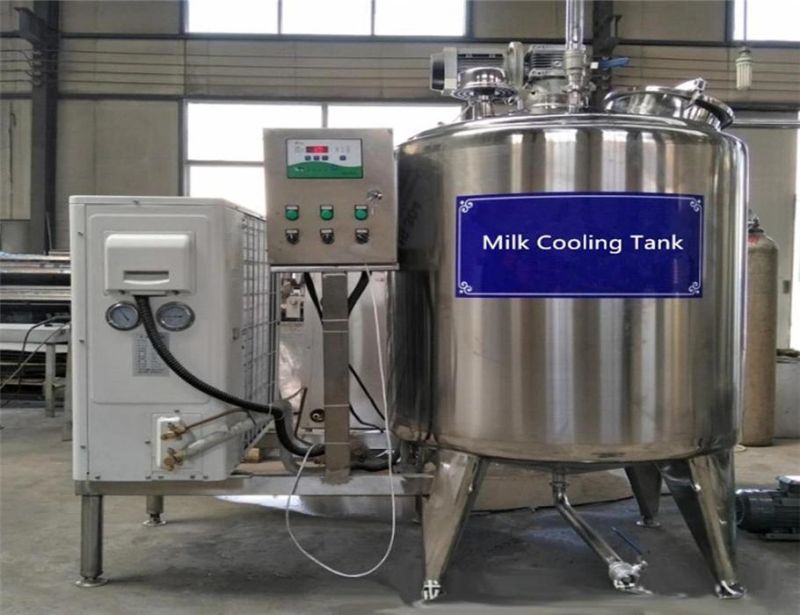

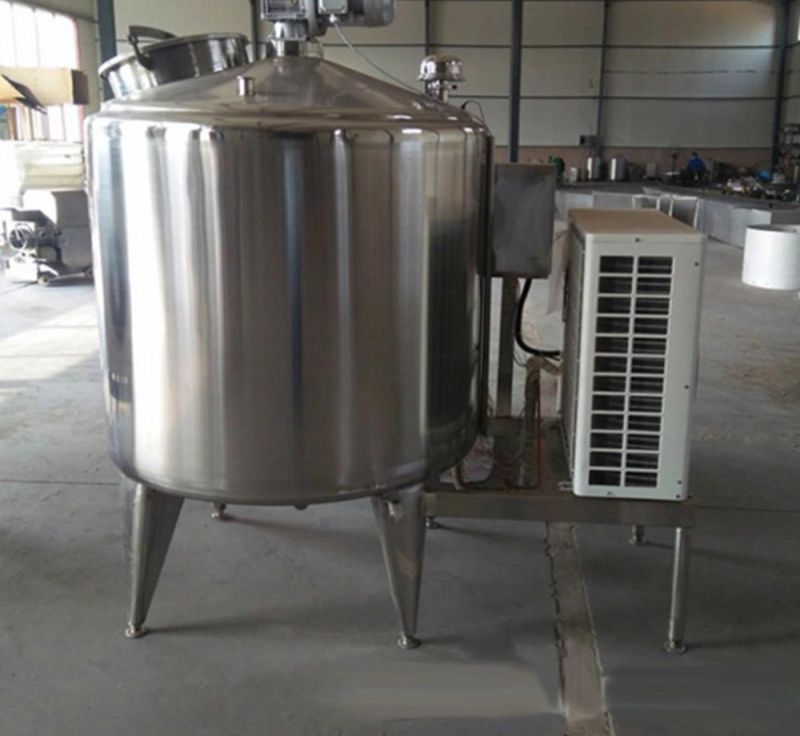

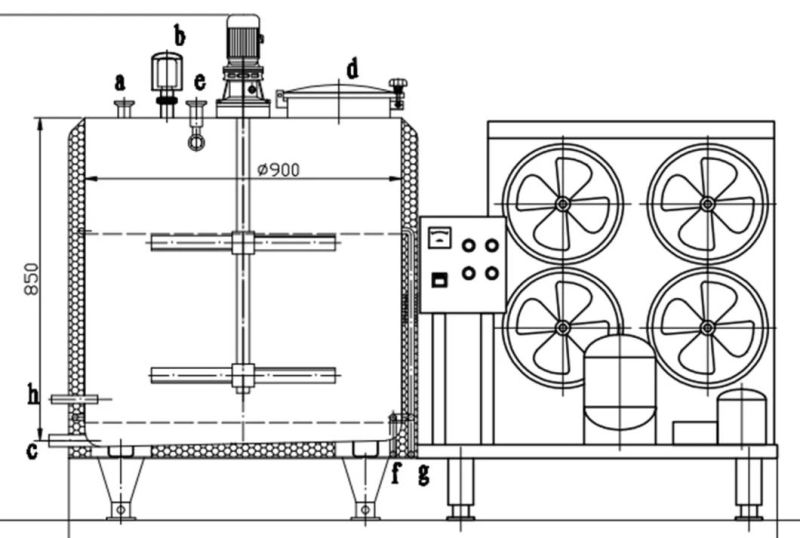

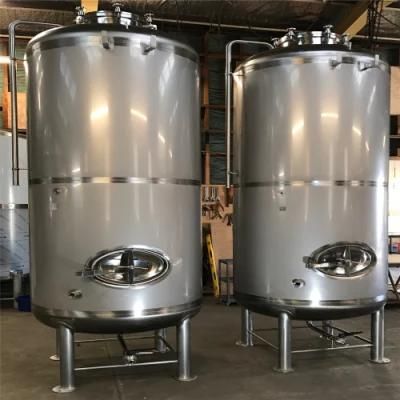

Stainless Steel Vertical Type Milk Cooling Tank For Dairy Farm .
