Basic Info.

Model NO. HK 32 Vario, HK 32L Vario Max.Drilling Capacity 32mm Table Size 700X210mm, 840X210mm Material High Speed Steel Use Metal Drilling Transport Package Wooden Case, No Need Fumigation, Plastic Cover Specification CE, ISO9001 Trademark UNI-TECH Origin China HS Code 84592900 Production Capacity 500PCS/Month

Product Description

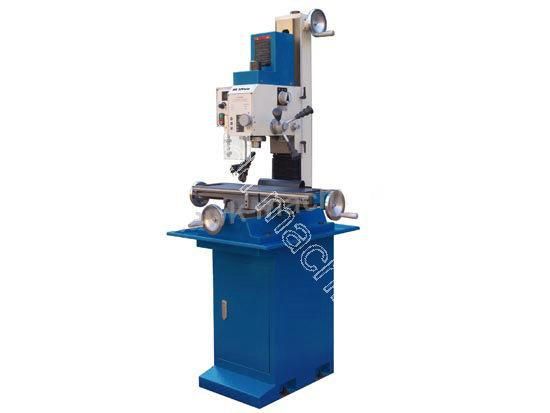

Mini drilling and milling machine with variable speed head HK 32 Vario,HK 32L Vario

Features:
Compact, accurate, variable speed mill and drill Variable speed enables to opertate easilySpindle is supported by high precision taper roller bearingGear head provides greater torque Mill head can be tilted ±90° Adjustable taper gibs Positive locks for table, head, quill and columnEasy reading scale has sain chrome finishDovetail column Easy to raise and lower head by handwheelTest certificate
Standard accessoriesSpeed displayDepth rulerDrill chuck 3-16mmArbor MT2/B16, M10Drawbar MT2/M10Operating tools Optional accessoriesStand & chip trayKeyless drill chuck 3-16mmER25/6pcs collet chuck (4-16mm)2-way angle vise-50mmEnd mill 7pcs (4-16mm)58pcs of clamping kits/M10x11.7mm

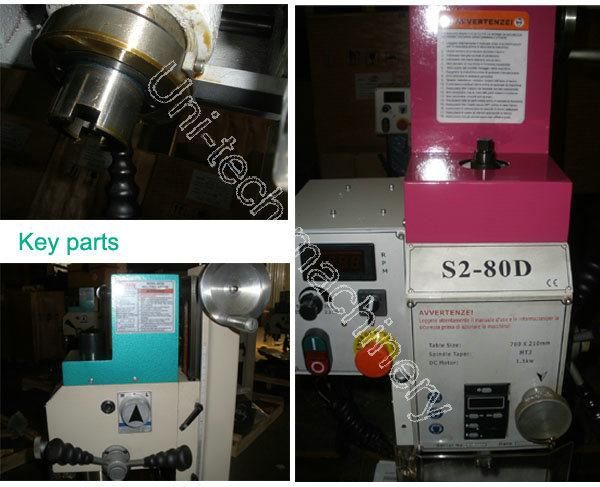

Key parts

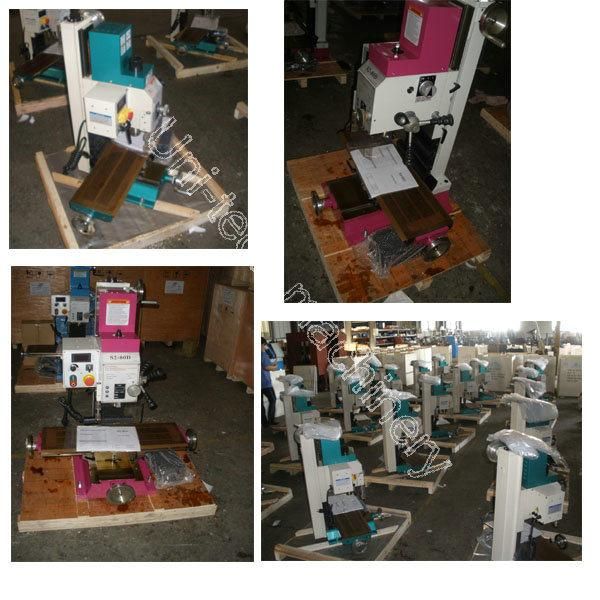

Machines in workshop

Model No.	HK 32 Vario	HK 32L Vario
Drilling capacity	32mm	32mm
Face milling capacity	70mm	70mm
End milling capacity	20mm	20mm
Spindle taper	MT3 or ISO30	MT3 or ISO30
Sleeve travel	70mm	70mm
Low speed stage	50-1000 rpm	50-1000 rpm
High speed stage	150-3000 rpm	150-3000 rpm
Head rotation	±90°	±90°
Table size	700x210mm	840x210mm
X-axis travel	425mm	625mm
Y-axis travel	220mm	220mm
Z-axis travel	370mm	370mm
T-slot	12mm	12mm
Motor	1.1 KW	1.1 KW
Packing size	710x890x1150mm	710x890x1150mm
Net weight	220kg	220kg
