• Model NO.：RF20
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Marking Area：10*10cm, 20*20cm
• Location：Red Location
• Voltage：AC110V±10%60Hz or AC220V±10%50Hz
• Marking Depth：0.2mm(Depending on Material)
• Linear Speed：7000mm,S
• Transport Package：Plywood
• Trademark：flying
• Origin：Jinan China
• HS Code：8456110090
• Production Capacity：100PCS,Month

Basic Info.

Model NO. RF20 Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Marking Area 10*10cm, 20*20cm Location Red Location Voltage AC110V±10%60Hz or AC220V±10%50Hz Marking Depth 0.2mm(Depending on Material) Linear Speed 7000mm/S Transport Package Plywood Trademark flying Origin Jinan China HS Code 8456110090 Production Capacity 100PCS/Month

Product Description

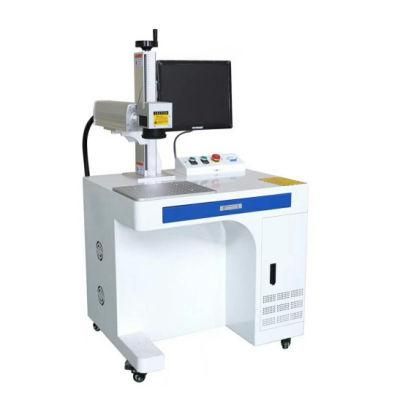

metal and nonmetal fiber laser marker with raycus 20w

Features:
1. Compactness, With the unique all built-in integration design, the optical, electronic and mechanical components are highly intergrated, so that the whole machine weight only 35kg. It can be called the smallest fiber marker in the world. In addition, it adopts imported fiber laser, and coupled with all air-cooled design, it need not external cooling devices.

2. High durability, The laser module has a long service life(greater than 100,000 hours; while the traditional lamp pump YAG can only serve hundreds of hours and the semiconductor can serve 20,000 hours or so )

3. Low consumption, Due to the all air-cooled design, no consumable materials and free of maintenance, it has a low cost at use. Furthermore, it saves energy with a total power below of 0.5kw.

4. High speed, it applies imported high-speed galvanometer of traditional lamp-pumped maker and the second-generation of semiconductor marker(depend on the marking material).

Applicable Industries:

1.Electrical Engineering and Electrical part and component
2.Mobile (Cover, battery, keyboard, IPhone Case)
3.Jewelry(Ring, pedeant, bracelet),eyeglass,clocks and craft
4.Building materials,PVC pipe
5.Car motor car spare part, Instrument and meters and cutting tool
6.plastic case,aviation and aerospace,
7.military product,hardware fitting and accessory,sanitary appliance
8.food and beverage ,Medicine package and medical instrument,solar Pv industry

Applicable Materials:

Many type of metals: Gold,Silver,Stainless Steel,Copper,Aluminum,chrome Brass,etc
Alloy and metal oxides: Anodized Aluminum
Some non-metallic materials & Special surface treatment:silicon wafer, Poly urethane, ceramics, plastic, rubber, epoxy resin, PVC, PC, ABS, Coating film etc



Specifications:

Model	RF-20/30/50
Laser power	20W 30W 50W
Laser wavelength	1064±10nm
Q-frequency	20KHZ~100KHZ
Pules frequency	20KHZ~200KHZ
Divergence	0.3mard
Marking range	110*110mm/205*205mm/290*290mm
Minimum line width	0.01mm
Minimum character	0.1mm
Marking speed	1000mm/s
Marking depth	0~0.5mm
Repeatability accuracy	±0.001mm
Beam quality	M2:1.2~1.8
Marking format	ics text, barcodes, two-dimensional code, automatically marking the date, batch number, serial Number, frequency, etc
Graphic format supported	bmp, jpg, gif, tga, png, tif, ai, dxf, dst, plt, etc
Working voltage	220V±10%/50Hz/4A
Unit power	<0.5kw
Use of the environment	Clean and dust free or less
Working condition:Humidity	5%-75%,Free of condensed water
Laser module life	>100000 hours
The whole life	More than 15 years
Packing size	810*630*1000mm
Net weight	90kg

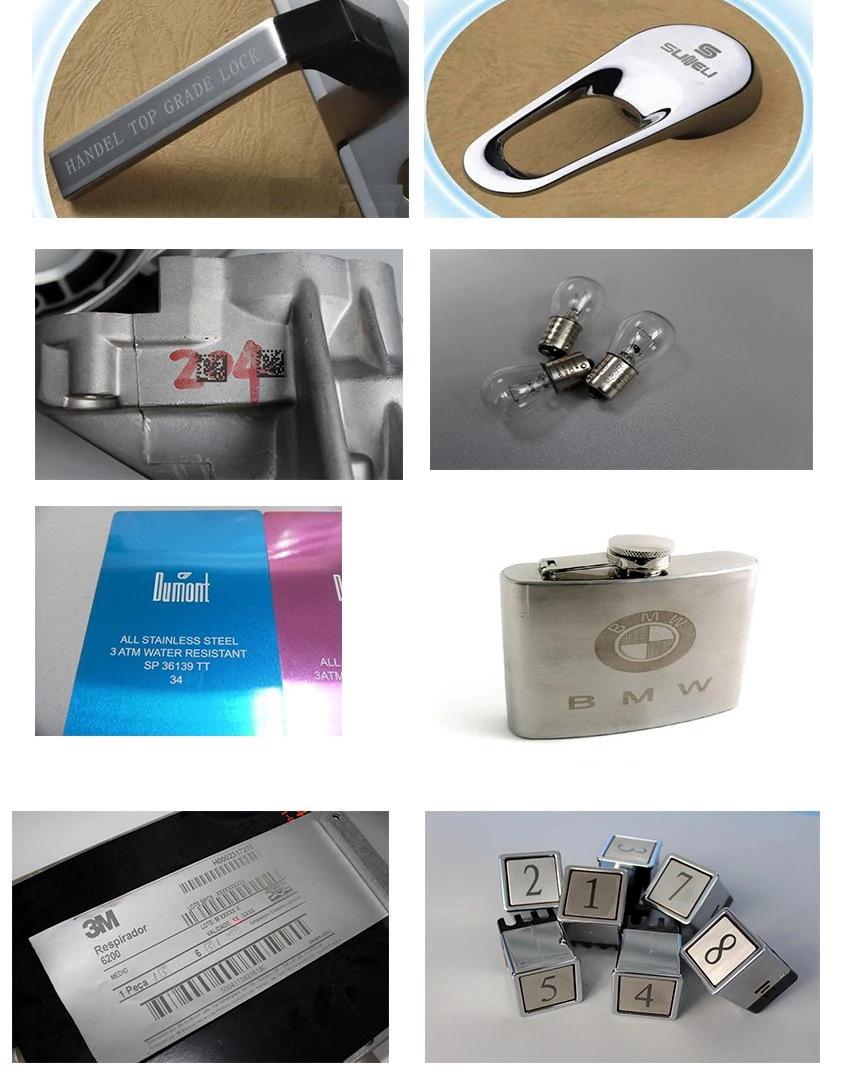

Samples Display:
