• Model NO.：T300F
• Capacity：300kg,H
• Speed：1000PCS,Min
• Power：24kw
• Length：16m
• Gross Weight：7500kg
• Transport Package：Wooden Case
• Specification：CE
• Trademark：SHINWEI
• Origin：China Shanghai
• HS Code：84382000
• Production Capacity：20stes,Year

Basic Info.

Model NO. T300F Capacity 300kg/H Speed 1000PCS/Min Power 24kw Length 16m Gross Weight 7500kg Transport Package Wooden Case Specification CE Trademark SHINWEI Origin China Shanghai HS Code 84382000 Production Capacity 20stes/Year

Product Description

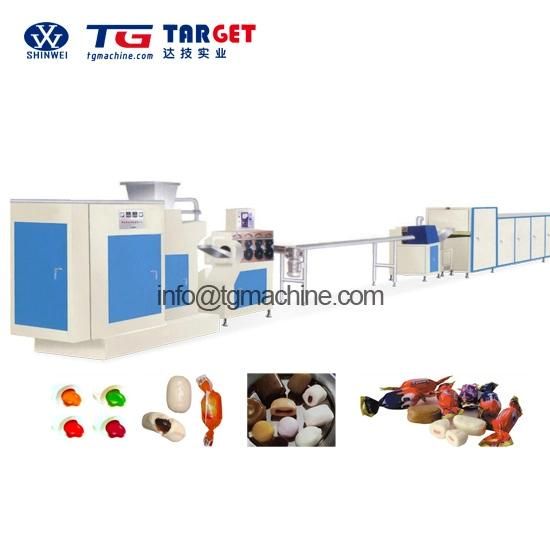

Automatic central-filled É Clair/Toffee production line
The processing line is an advanced one for making various kinds of soft candies, such as central- filling milk candies, soft candies and etc...It is also an ideal equipment which can produce out good quality products with the saving of both the manpower and the space occupied.


Wooden packing
1. Product production is completed, by the quality inspection department to check
2. After inspection qualified, clean for whole machine
3. Packing: A. Inside the machine put desiccant b. Add 6 cm thick foam plate around the machine, Then, winding stretch film for reinforcement, and combined with bubble wrap c. On wood packaging on the outside of the machine, then use metal reinforcement with steel
4. Container: According to different products for reinforcement


After-sale service for abroad customers.

1. Free training of macine installion, operation and maintenance will be provided by our engineer.
2. Some spare parts will be sent with the machine for free. It is available to buy the parts from us forever at low price.
3. We will surpport customers after-service forever by call, email and video etc.
4. If necessary, our engineer is available to go to customer's factory for machine installion and adjustment




Model	T300
Production capacity   ( kg/h)	300
Rated output speed    (pcs/min)	1000
Weight of each candy     (g)	Shell: 7g(max.)       Central-filling:2g(max)
Steam consumption    (kg/h)  Steam pressure        (Mpa)	400 0.2~0.6
Electric power needed	34kw/380V
Compressed air consumption Compressed air pressure	0. 25m3/min 0.4-0.6 Mpa
Conditions needed for  the cooling system: 1.Room temperature 2. Humidity (%)	20~25 55
Length of the whole line   (m)	16m
Gross weight           ( Kgs)	Approx.8000
