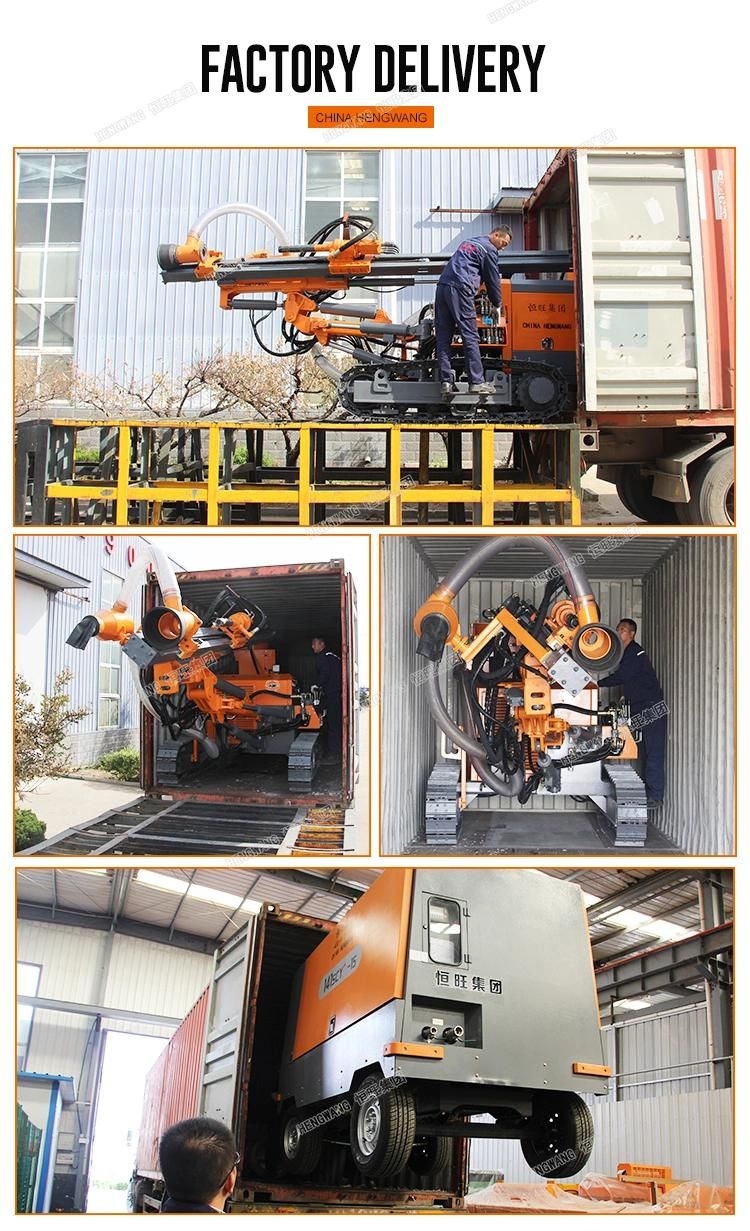

Crawler Separated DTH Surface Drill Rig with Hole 90-310mm

Kunshan Hexin Precise Machinery Co., Ltd.

Base Info

Description

Main technical specifications

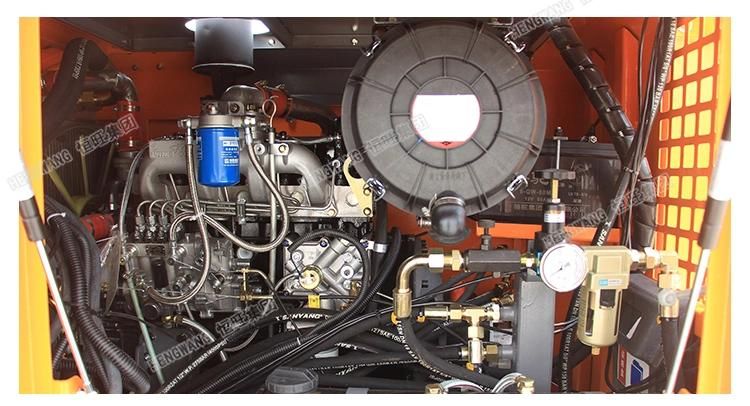

Power

Yuchai YC6J220 162 kW

Hole Depth

20m

Drill Pile Sizes

60 mmX3000 mm

Hole Dia

80-115mm

DTH Hammer

3.5"

Rotation Torque (Max.)

1650N.m

Rotation Speed

0-110 rpm

Working Pressure

14.5 bar

F.A.D

12 m3/min

Tramming Speed (Max.)

2/3 km/h Dual Speed

Gradient

30°

Track Frame Oscilation

±10°

Total Weight

6,800 kg

Transportation Dimensions

6,000X2,800X2,750 mm

Dry Dust Collector

Standard

Dual Speed Walking Motor

Standard
