Hydraulic Bi-Directional Valve

Changzhou Kaiguan Packaging & Technology Co., Ltd.
  • Function：Flow Control
  • Installation：Threaded Cartridge
  • Drive：Hydraulic
  • Type：Directly Operated Type
  • Spool：1, 2, 3, 4, 5, 6, ...
  • Flow：40lt, 50lt, 60lt, 90lt, 100lt, 120lt, 140lt, ...

Base Info

  • Model NO.：P40
  • Transport Package：Carton, Pallet
  • Specification：5 KGS
  • Trademark：HANJIU
  • Origin：China
  • HS Code：8481802990
  • Production Capacity：10000 Pieces

Description

Basic Info.

Model NO. P40 Transport Package Carton, Pallet Specification 5 KGS Trademark HANJIU Origin China HS Code 8481802990 Production Capacity 10000 Pieces

Product Description

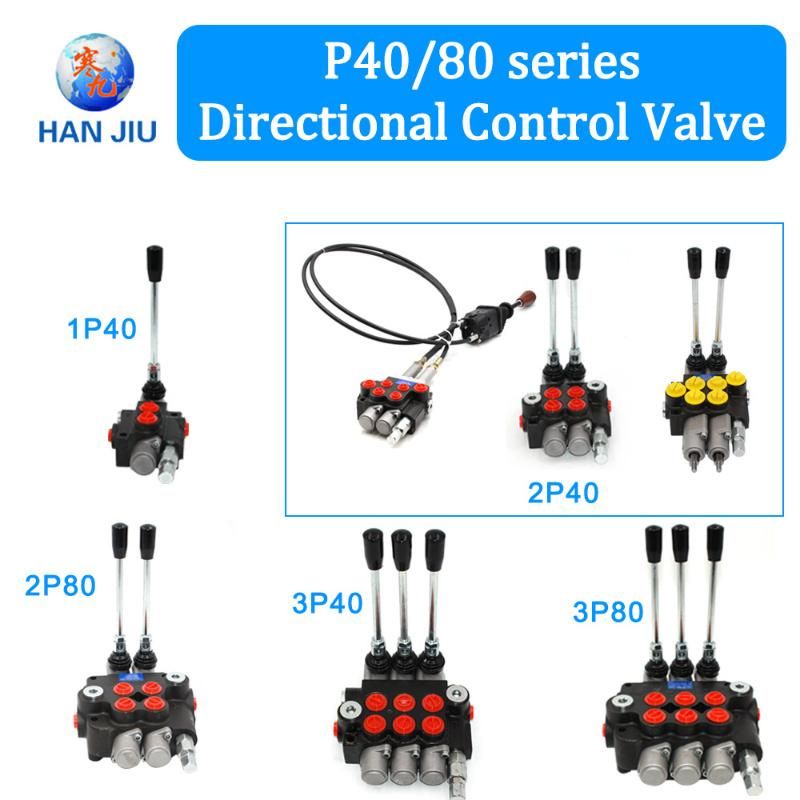

hydraulic bi-directional valve


Description

Manually or mechanically controlled hydraulic Monoblock Control Valves is designed for distribution and control of work flow between generator (pump) and executive mechanisms (cylinder, hydro-motor, etc.). It is manufactured with 1 to 7 plungers, with parallel or serial action, with common or individual back valve for each plunger, with or without safety valve.

Construction

This valve is a mono-bloc distributor. Its body is made of cast iron EN-GJL300. Plungers are made of carburized steel with hard chrome plating.

Mounting

The distributor is fixed with two bolts M8


3/4" Ported 2 Bank Monoblock Valve (Double Acting Spools also known as ram spools)Built in Adjustable Main relief valveNominal Flow Rating - 40L/MinMax Flow - 100LOperating Pressure - 315 Bar - 4600 Psi  Spring Return To Neutral
Hydraulic Bi-Directional Valve
