• Model NO.：Vacuum Brazed High-speed drill bit
• Angle Grinder Used：Designed USD for Machine Angle Grinder
• Transport Package：Color Box,White Paper Box, Brown Paper Box
• Specification：Dia 5mm-127mm
• Trademark：BSP TOOLS
• Origin：China
• HS Code：8207191000
• Production Capacity：10000,Year

Basic Info.

Model NO. Vacuum Brazed High-speed drill bit Angle Grinder Used Designed USD for Machine Angle Grinder Transport Package Color Box/White Paper Box/ Brown Paper Box Specification Dia 5mm-127mm Trademark BSP TOOLS Origin China HS Code 8207191000 Production Capacity 10000/Year

Product Description

BSP tools manufacture supply Vacuum Brazed High-speed drill bit with 1 year warranty. We devoted ourselves to diamond tools many years,covering most of Europe and Australia market. We are expecting become your long term partner in china.

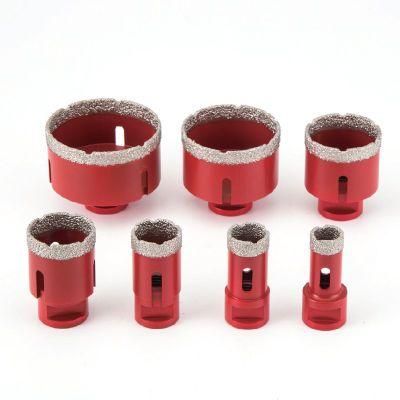

Vacuum Brazed High-speed drill bit
1.Product Introduction of the Vacuum Brazed High-speed drill bit
BSP Vacuum Brazed Drill Bits are the best for Porcelain Core Bit, Ceramic Core Bit, Marble Core Bit, and Granite Core Bits all in one. It can be used wet or dry. The Vacuum Brazed Diamond Core Drill Bit drills cleanly dry with zero chipping.The Vacuum Brazed Core Drill Bits are made to run at high r.p.m in all types of ceramic, porcelain, marble, granite.The vacuum brazing is on both the inside and outside of the barrel.This special Vacuum Brazed diamond technology allows an uncomplicated, hands-free and clean drilling on angle grinders. The Vacuum diamond coating allows fast drilling with extremely clean, chip free holes.The Vacuum Brazed Core Bits are designed to drill hard and brittle materials such as ceramics, porcelain, marble, granite, stone materials. Also materials such as stoneware, glazed clinker and hard roof tiles can also be drilled.

2.Product Parameter (Specification) of the Vacuum Brazed High-speed drill bit



wDia.(mm)	Segment Height	Total length	Connection
5	2	55	1/4″Hex
12	2	55	1/4″Hex
25	2	55	1/4″Hex
32	2	46	5/8-18″UNF
89	2	46	5/8-18″UNF
127	2	46	5/8-18″UNF

3.Product Feature And Application of the Vacuum Brazed High-speed drill bit
Vacuum Brazed diamond bits: for stoneware, porcelain stoneware, granite, the use of dry-cut .Thanks to the "vacuum brazing" technology with which we manufacture it:The bit life is longer.It manages to increase the retention of diamond grains, thus reducing both friction and temperature.Cutting is faster.Drilling very hard materials such as porcelain stoneware, or others such as marble or granite, is much simpler.In addition, by allowing dry cutting, it is very useful for wall drilling as it does not require water cooling.You get a perfect finish.

4.Product Details of the Vacuum Brazed High-speed drill bit
BSP tools manufacture provide Vacuum Brazed High-speed drill bit is mainly diameter from 5-127mm for construction market. The Segment height is 2mm. The core bit thread is 1/4"Hex or 5/8-18"UNF.BSP TOOLS Special length and segment shape are available which is according to the customer request .

5.Product Qualification of the Vacuum Brazed High-speed drill bit
Our Vacuum Brazed High-speed drill bit has ISO:9001 quality certificate

6.Deliver,Shipping And Serving of the Vacuum Brazed High-speed drill bit
The Vacuum Brazed High-speed drill bit samples can be sent within one week and bulk order can be finished within 20 days . Shipping by air or sea all is ok. We provide customer minimum 1 year warranty.

7.FAQ

Do you have MOQ?
OEM is 50pcs MOQ; ODM 100pcs MOQ.

What about the color of diamond core bit?
We have standard color covering red, orange, black, white blue and Grey. Other color are also available according to customer RAL code. But need minimum quantity 50pcs.

What is the package?
BSP TOOLS offer color box ,white box and brown box ...

What information you need to provide the price?
Better tell us the power of your drilling motor/hand held drilling machine/angle grinder and RPM request.
