Basic Info.

Model NO. KBLF-32-I Condition New Total Power 100kw Transport Package Standard Packing Specification 16-32mm Trademark kebeln Origin China HS Code 8477209000 Production Capacity 1000PCS/Year

Product Description

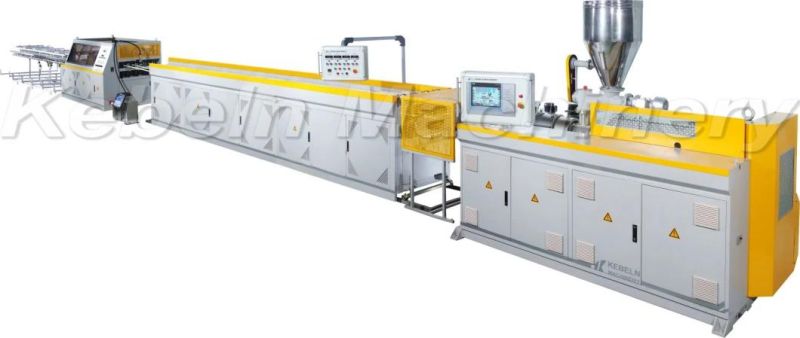

PVC (Φ16 - Φ32mm) four pipes extrusion production line include a KBL65/132 conical twin-screw extruder, a four-outlet vacuum forming table, a four outlet haul off machine, a four outlet cutter, a four outlet stacker, and 1 set of mould. The product material is PVC, best production pipe range is16mm-32mm. Comparing with the capacity of common PVC two pipes extrusion line, PVC four pipes extrusion line have more than 70% capacity higher. Comparing with the common extrusion line, this PVC four pipes extrusion line has much less investment at equipment cost, factory investment and production investment. There is no dust polluction from this extrusion line, as the cutter is equipped with saw cutting and automatical cylinder.

screw diameter(mm)	65/132	motor power(kw)	37	center height of screw(mm)	1000
screw direction	opposite outward rotation	installtion power(kw)	65	weight(kg)	4000
speed of screw rotation(r/min)	1-36	Max. capacity(kg/h)	300	dimension(mm)	4235× 1520× 2450
length of screw(mm)	1430	quantity of barrel heating(pcs)	4
structure of screw	conical mesh	heating	Die-casting aluminum
