Basic Info.

Model NO. DSB70 Screw L/D Ratio 24 L/D Screw Diameter 70mm Power(W) 28.5 Kw Guarantee Time 1 Year Company Attribute Manufacturer Delivery Time 60 Days Machine Lifespan >20 Years Machine Size 3.5X2.2X2.65 M Average Energy Consumption 30.5 Kw Machine Weight 6.5 Tons Total Power 52 Kw Screw Drive Power 18.5 Kw Voltage Customer Specified Sation Number Single or Double After-Sales Service Engineers Available to Service Overseas Transport Package Nude Package/as Customers Request Specification DSB70 Trademark DAWSON Origin Zhangjiagang Jiangsu HS Code 8477301000 Production Capacity up to Product

Product Description

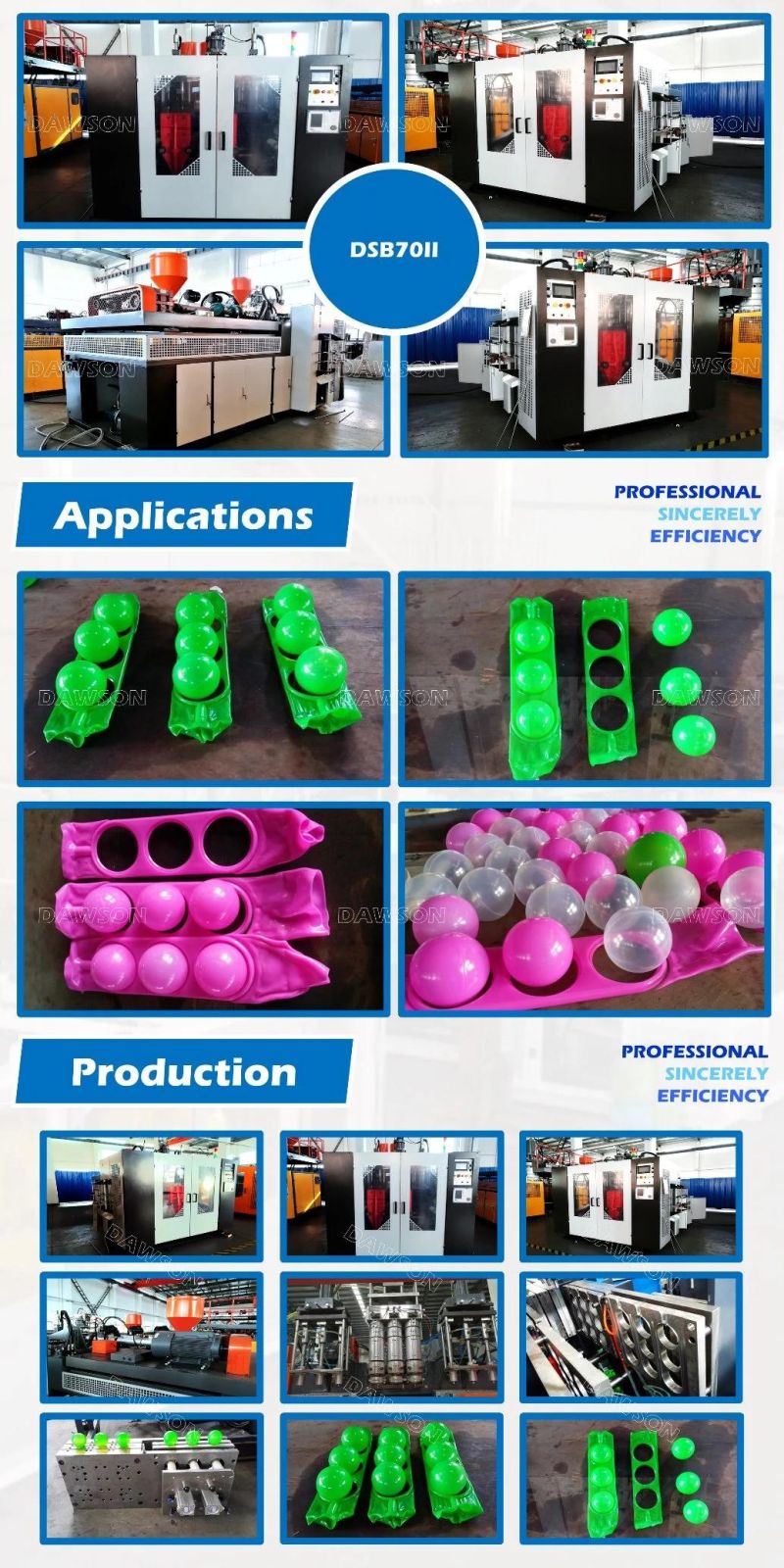

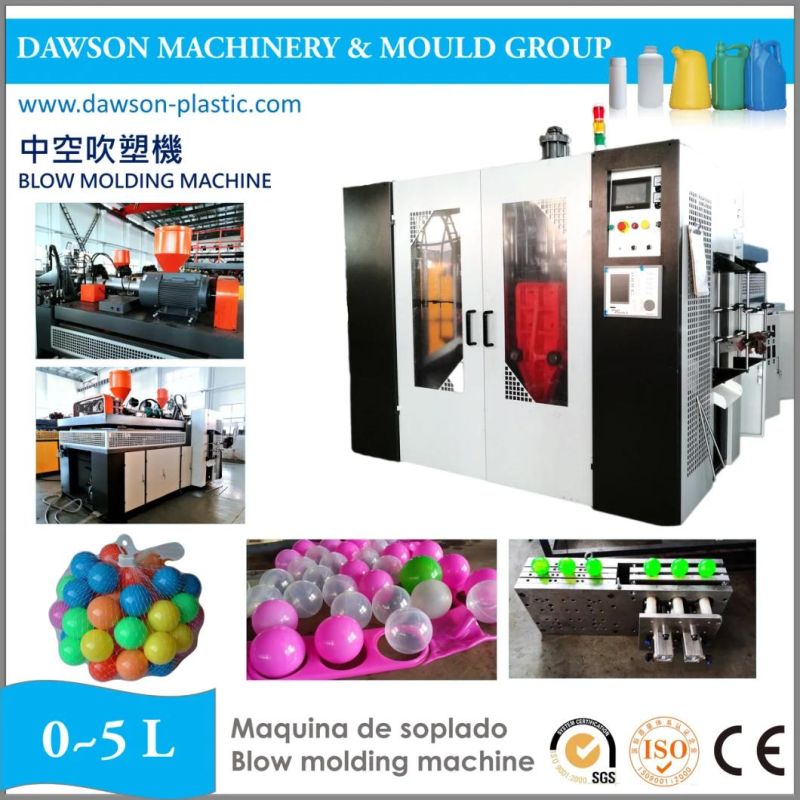

DSB70 extrusion bottle blow molding machine was specially designed for making plastic water bottles, lubricant oil bottles, detergent bottles, plastic toys and other plastic containers not over 8L.

The features of this machine:
(1)It is suitable for producing PE, HDPE, PP, PVC, PETG, PS so on, plastic containers and bottles in all shapes are available, the max. Product volume is up to 8L.
(2)Single station single die head design, very easy to operate and maintenance.
(3)Most components of the blow moulding machine are from famous world brand.
(4)Fully automatic process with low power consumption, high efficiency, quick and safe operation, easy for maintenance.
(5)Multiple screw available for double layer or tranparent liquid lever line.
(6)Auto deflashing device available, can remove the extra parts of bottles.
(7)Auto lubricant system controlled by PLC.






TECHNICAL DATA

Machine Model	DSB70
Max Product Volume	5L
Target Material	LDPE/HDPE/PP/PVC/PETG
Machine Size	3.5x2.2x2.65 m
Machine Weight	6.5 Tons
Voltage Suitable	Customer Specified
Screw Diameter	70 mm
L/D Ratio	24:1
Barrel Heating Power	14.2 KW
Extrusion Motor Power	22 KW
Plasticizing Capacity	90 KG
Platen Size	320x390 mm
Opening Stroke	150~500 mm
Max Mould Size	350x390 mm
Head No.	3
Central Distance	110 mm
Heating Zone No.	2+1
Head Heating Power	5.7 KW
Total Power	52 KW
Average Energy Consumption	30.5 KW
Compressed Air Needed	0.6 Mpa / 0.8 m3
Cooling Water Needed	4.5 m3/H
Loading Reference	20'GP
