Basic Info.

Model NO. XZ280 Bit Type Diamond Bit Drilling Way Compound Type Crawler Spindle Torque  1000n.M Backreaming Dismeter 750mm Bore Diameter 400m Tubing Length 3m Transport Package Nude Specification 6400x2270x2340mm Trademark NEWINDU Origin Jiangsu HS Code 84306919 Production Capacity 10

Product Description

brand new newindu Horizontal Directional Drilling XZ280

Description

1.Pullback/thrusting:280/280KN.m
2.Engine:140 kw Shangchai
3.Spindle torque:10000N.m
4.Backreaming diameter:750mm



140kw engine, 280kN of push-pull, 10000N.m of Max.spindle torque, motor dual speed chain push-pull system, self-propelled rubber tracks chassis, automatic loading and unloading drill rod device, rotatable control board, patent technology for floating vice, and onboard high-capacity mud pump (250L/min).

Parameter

Model	XZ280
Engine	Shangchai D6114ZG
Rated power	140kw/2300rpm
Max.pullback/thrusting	280/280KN
Spindle torque (max)	10000N.m
Spindle speed	0~120r/min
Bore diameter (max)	400m
Backreaming dismeter	750mm
Tubing length (single)	3m
Tubing diameter	73mm
Entry angle	10~23°
Mud flow rate (max)	250L/min
Mud pressure (max)	80bar
Overall weight	12500kg
Dimension (L×W×H)	7208×2200×2450mm

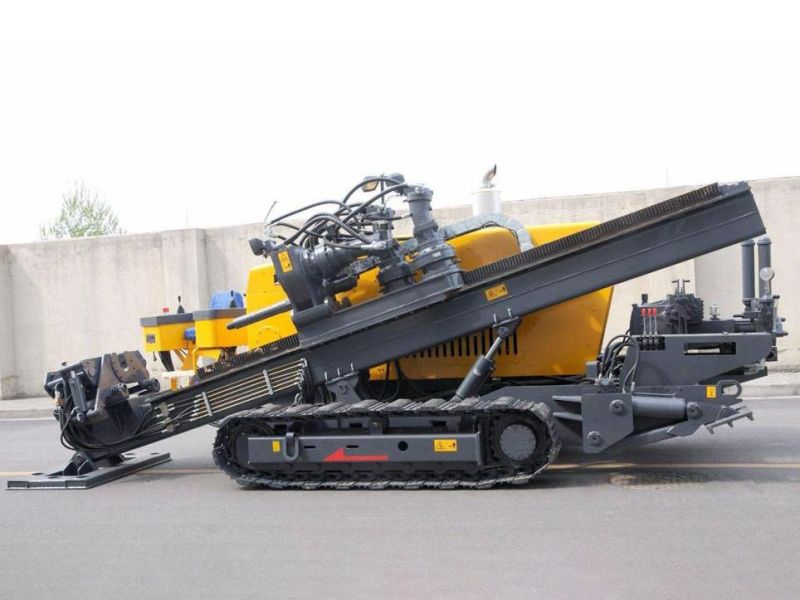

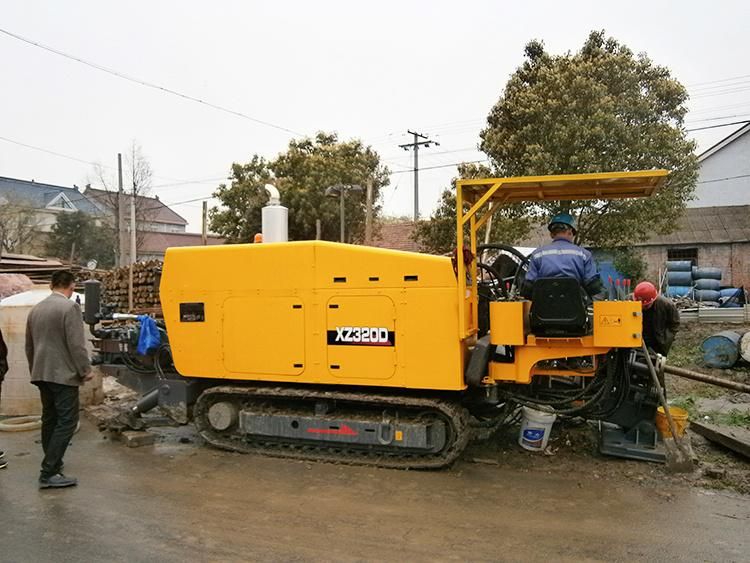

Product image
